Product Description

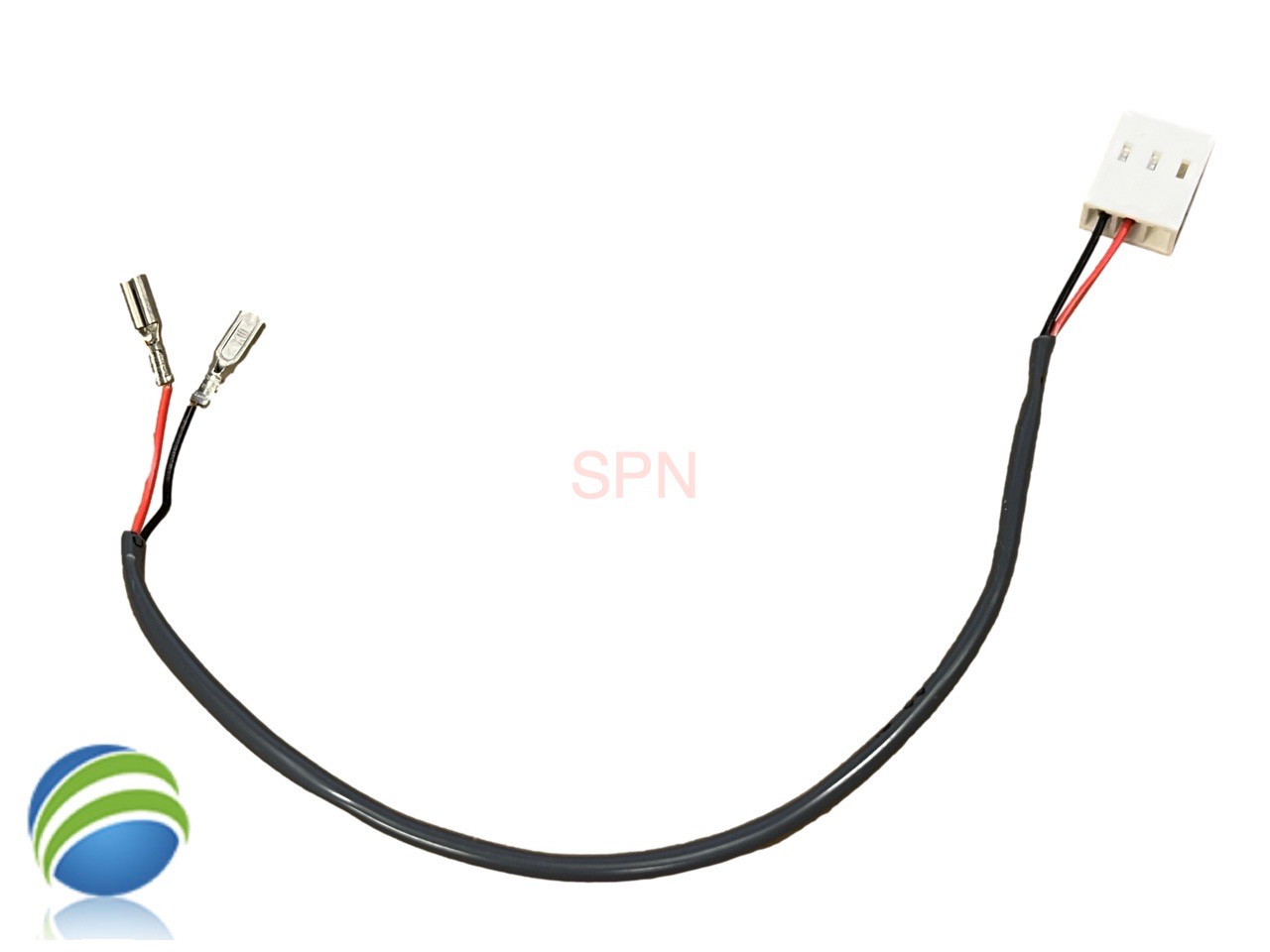

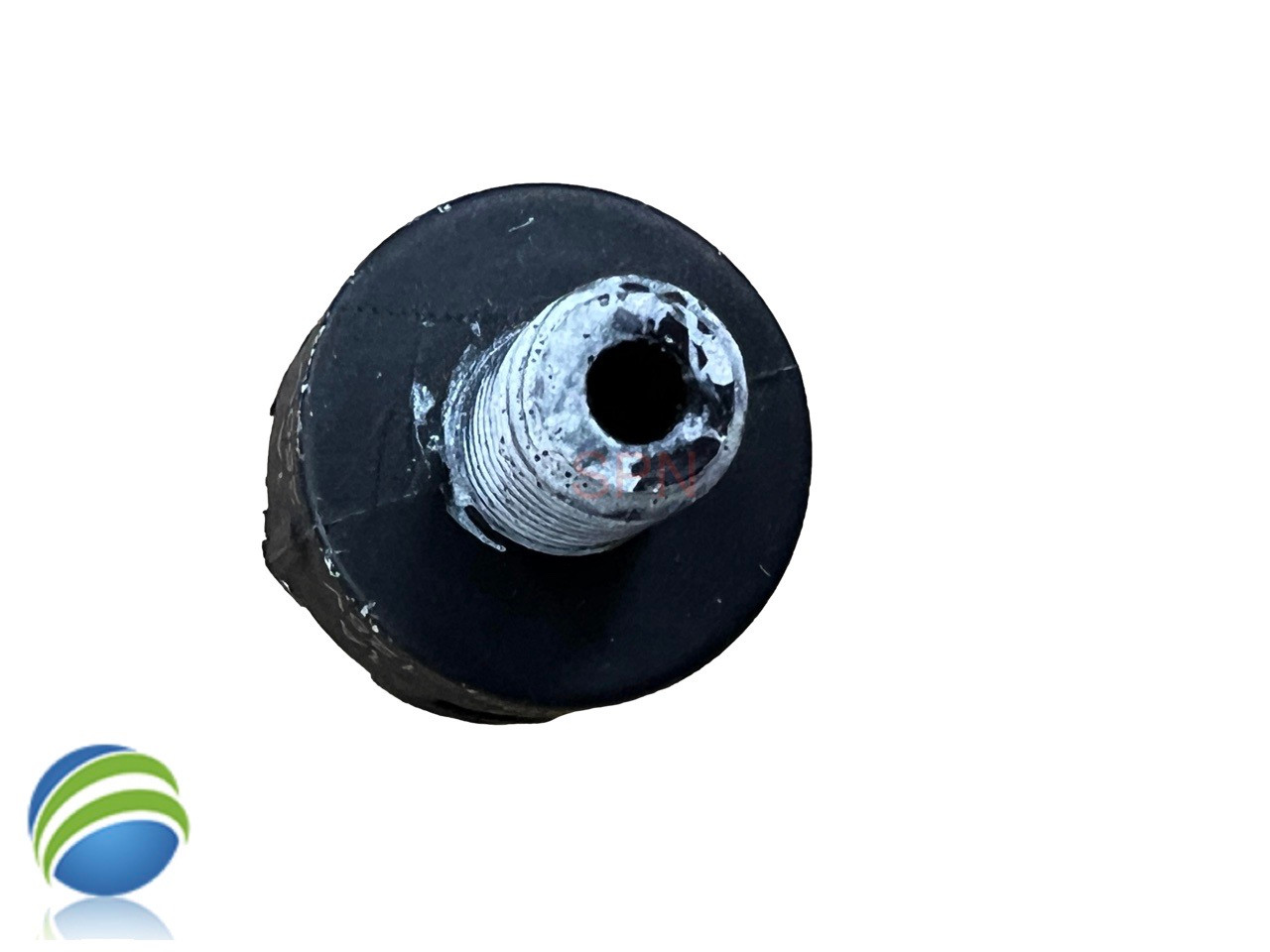

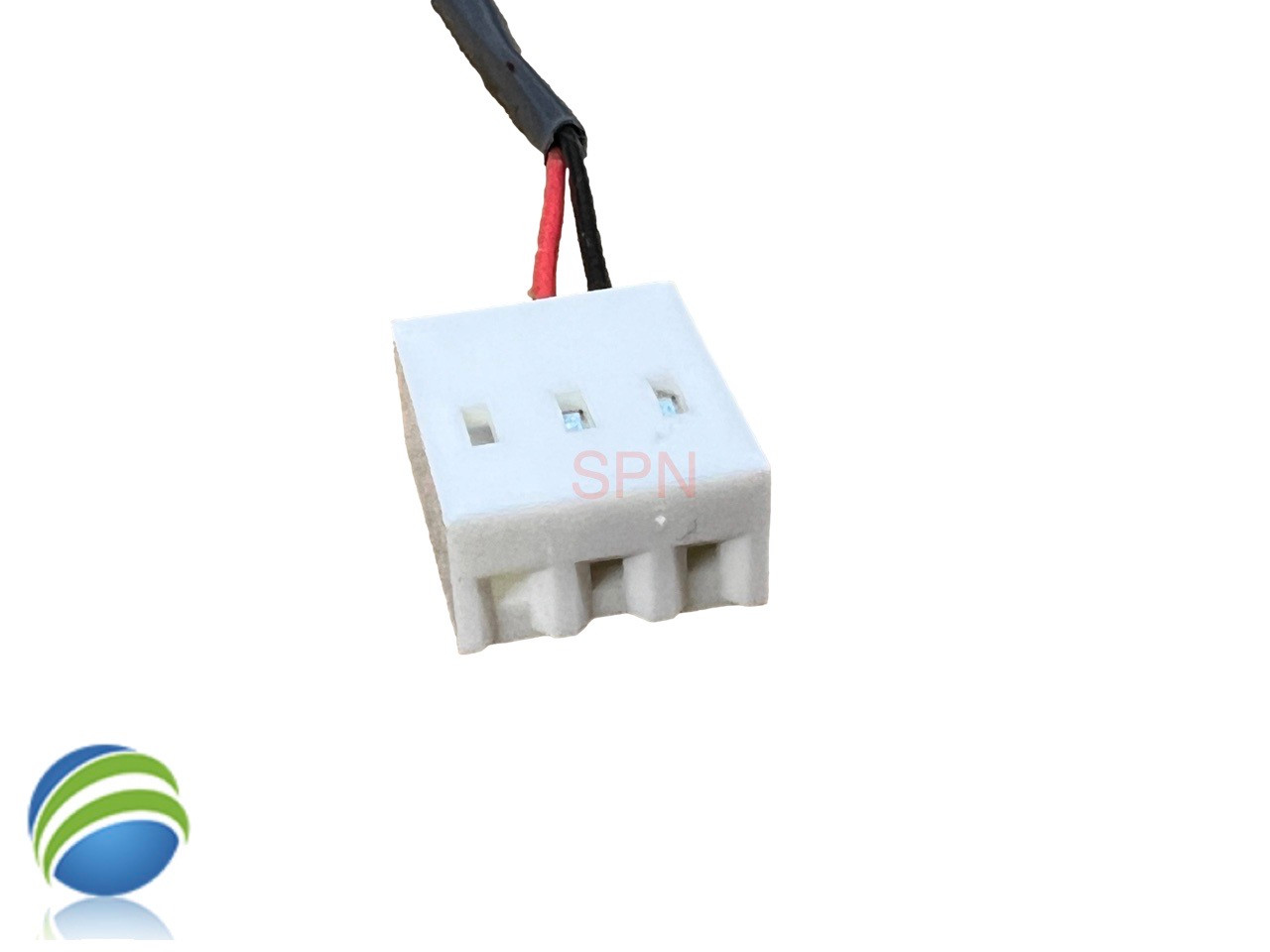

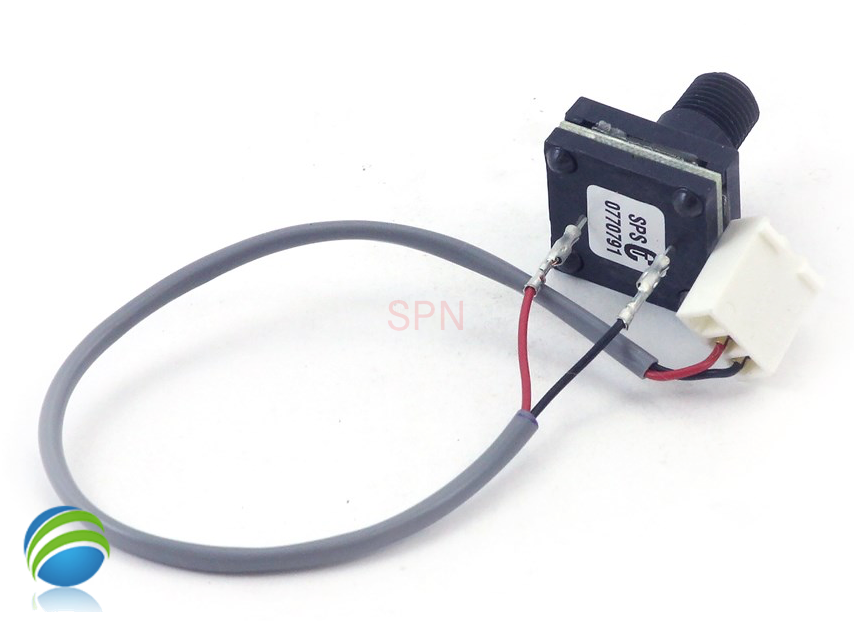

This part is a Electronic Pressure Switch for Watkins Solana, Caldera & Hot Spot, 2006 Thru Current that features 1/8th" MPT Standard Threads and 2 pin connectors for attaching the 2 wire 3 hole connector for a Watkins board. What goes wrong with these switches is either the Switch does not close when the pump comes on and puts pressure on the switch or it doesn't open when the pump goes off. If either of these things happens you will have a flo code on most systems. The are other things that will cause a flo code like an inoperative pump or a stopped up filter so be sure the switch is bad before replacing.
This switch can have many different numbers on it like 0534786..
If You want to save some money you can use this kit.. Watkins Hotspring Optional Pressure Switch 1/8" mpt 1 Amp with (2) Spade Connectors
