Product Description

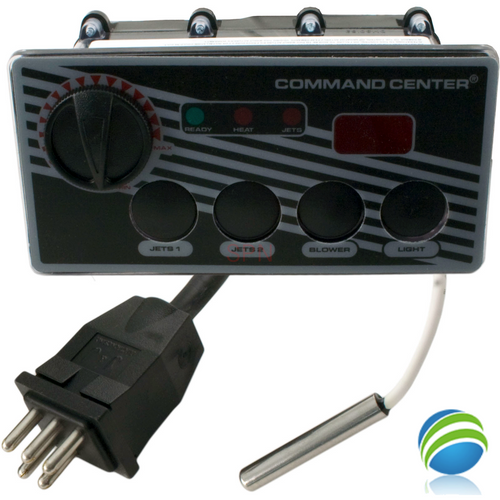

This part is a Universal Kit that will work for 2, 3 or 4 Button NO Temperature Display Style Analog Topside Control, Air, Tecmark, 115V with 10' Cable & Overlay, sometimes called a Command Center.. The panel kits come with a 4 button control, two nylon spacers to disable unneeded buttons, and a selection of 2, 3 & 4 button Overlay Labels for most pump, blower and light configuration. Capillary length is 48". This type topside can be found on Jacuzzi Whirlpool, Blue Ridge, Gatsby and many other brands with a Pneumatic Style control system.. This control features a 5 round pin plug, the overlay, temp Sensor with Cable and bulb to be placed either in a thermowell or on the pinch plate of the heater..
These comes only in 115v the 230V version is no longer available...
Command Center Universal Kit
This new Command Center Universal spaside control panel kit can be installed in 2, 3, or 4 button applications, eliminating the need to stock different panels for multiple types of jobs. The panel kits come with a 4 button control, two nylon spacers to disable unneeded buttons, and a selection of 2, 3,&4 button labels. Capillary length is 48".
Note that the retrofit kit Black Out Plate HTP58-319-1090 is still needed when replacing older 3&4 button 8000 or 9000 series Command Centers
Manufacturer Tridelta, Tecmark
Model Command Center
# of Buttons 2, 3 or 4
Voltage 115v
Hole Size 5-5/8" x 2-1/2"
Overlay Dimension 6-3/8" x 3-1/8"
Panel Size 6-1/2" x 3-1/4"
Cord Length 10ft
Bulb Size 5/16"
Capillary Length 48"
CC2-120-06-1-00 or CC2-120-06-X-00 (see Note 2 and 3), CC2-240-06-1-00 or CC2-240-06-X-00 (see Note 2 and 3), 3-10-0040 or CC2-120-10-1-00 or CC2-120-10-X-00 (see Note 2 and 3), CC2-240-10-1-00 or CC2-240-10-X-00 (see Note 2 and 3), CC2D-120-06-1-00, CC2D-120-06-X-00, CC2D-240-06-1-00, CC2D-240-06-X-00, 3-10-0043, CC2D-120-10-1-00, CC2D-120-10-X-00, CC2D-240-10-1-00, CC2D-240-10-X-00, CC2-120-25-1-00 or CC2-120-25-X-00 (see Note 2 and 3), CC2-240-25-1-00 or CC2-240-25-X-00 (see Note 2 and 3), CC2D-120-25-1-00, CC2D-120-25-X-00, CC2D-240-25-1-00, CC2D-240-25-X-00, CC3-120-06-1-00 or CC3-120-06-X-00 (see Note 2 and 3), CC3-240-06-1-00 or CC3-240-06-X-00 (see Note 2 and 3), 3-10-0041 or CC3-120-10-1-00 or CC3-120-10-X-00 (see Note 2 and 3), CC3-240-10-1-00 or CC3-240-10-X-00 (see Note 2 and 3), CC3D-120-06-1-00, CC3D-120-06-X-00, CC3D-240-06-1-00, CC3D-240-06-X-00, 3-10-0044, CC3D-120-10-1-00, CC3D-120-10-X-00, CC3D-240-10-1-00, CC3D-240-10-X-00, CC3-120-25-1-00 or CC3-120-25-X-00 (see Note 2 and 3), CC3-240-25-1-00 or CC3-240-25-X-00 (see Note 2 and 3), CC3D-120-25-1-00, CC3D-120-25-X-00, CC3D-240-25-1-00, CC3D-240-25-X-00, CC4-120-06-1-00 or CC4-120-06-X-00 (see Note 2 and 3), CC4-240-06-1-00 or CC4-240-06-X-00 (see Note 2 and 3), 3-10-0042 or CC4-120-10-1-00 or CC4-120-10-X-00 (see Note 2 and 3), CC4-240-10-1-00 or CC4-240-10-X-00 (see Note 2 and 3), CC4D-120-06-1-00, CC4D-120-06-X-00, CC4D-120-06-B-00, CC4D-240-06-1-00, CC4D-240-06-X-00, 3-10-0045, CC4D-120-10-1-00 or CC4D-120-10-X-00, CC4D-240-10-1-00, CC4D-240-10-X-00, CC4-120-25-1-00 or CC4-120-25-X-00 (see Note 2 and 3), CC4-240-25-1-00 or CC4-240-25-X-00 (see Note 2 and 3), CC4D-120-25-1-00, CC4D-120-25-X-00, CC4D-240-25-1-00, CC4D-240-25-X-00, CC4D-120-06B-00, 34-0039A-S, 34-0039D-S, 34-0037A-S, 34-0037D-S, CC4D-240-10I-00
