Product Description
Read This Note First!!
NOTE: This Seal will NOT Fit Sundance® or Jacuzzi® Tubs with a LX Intertek Wet End for those parts click here Jacuzzi® & Sundance® LX Parts
This Seal Kit that includes the Seal, (1) Bearing, Silicon and Seal tool and is used ONLY in Intertek LX Brand Wet Ends. It is 1 39/64" Across the back of the Spring Seal part that goes into the volute or wetend back and the Ceramic & Rubber part that goes into the impeller is 1 11/32". The Hole in the ceramic part is about 3/4" and the hole in the spring side measures about 45/64". The bearing does fit these motors..

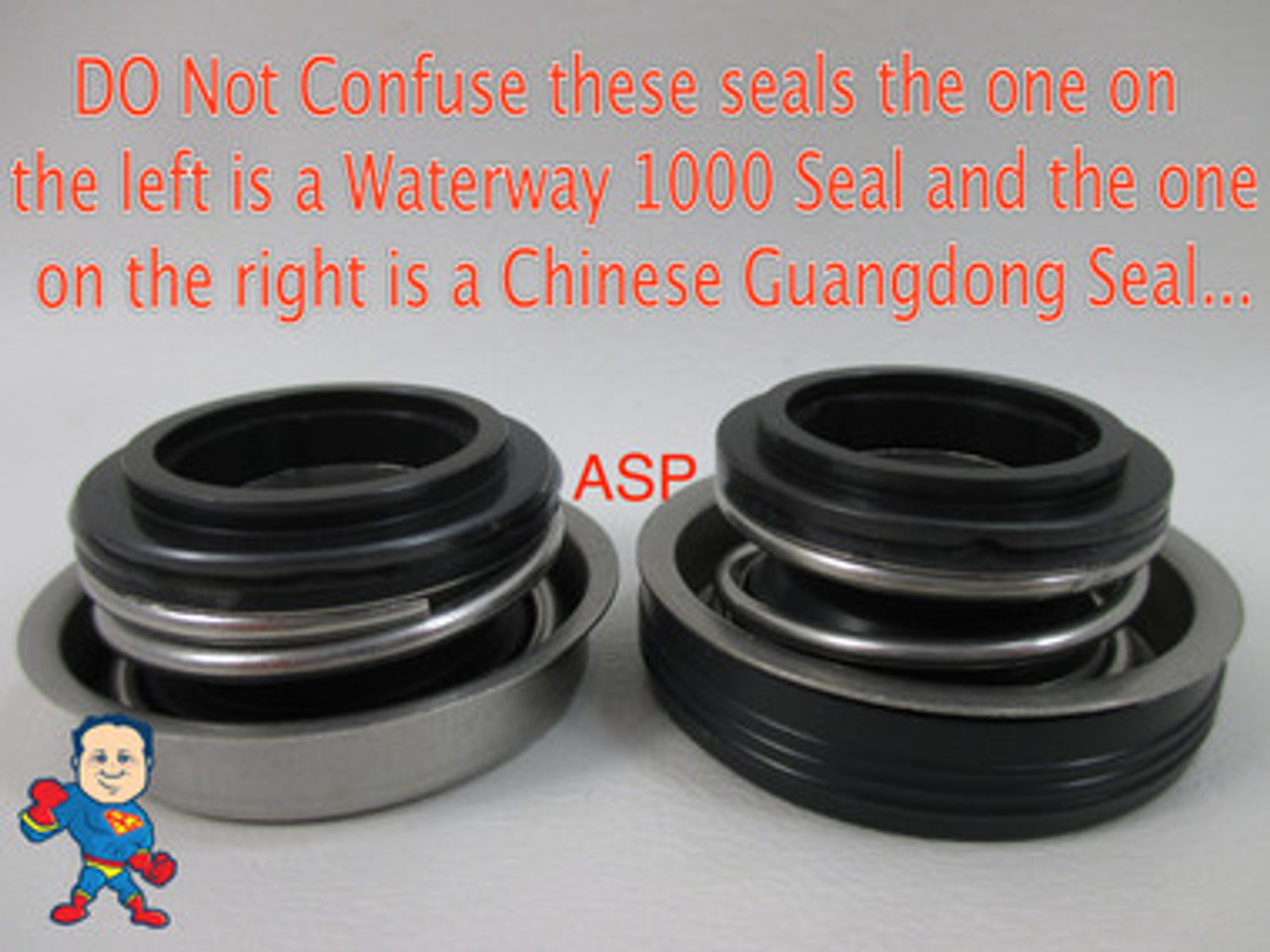

NOTE: This seal looks a lot like a 1000 Seal used on Waterway pumps they do not interchange!
Note: This Seal Fits Intertek Chinese LX and LP series Pumps ONLY Some Pump Part numbers are as follows: (WUA100-II/WUA200-II/WUA300-II/WUA400-II/WUA100-I/WUA200-I/WUA300-I/WUA400-I) (LP100/LP200/LP250/LP300/LP150) (WP100-II/WP200-II/WP250-II/WP300-II/WP100-I/WP200-I/250-I/300-I/400-I)
NOTE: This Seal will NOT Fit Sundance® or Jacuzzi® Tubs with a LX Intertek Wet End for those parts click here Jacuzzi® & Sundance® LX Parts
To Install you should put silicon sealant on the back of the Metal part and gently push it into place with a 1" coupler as the push tool. Also the rubber part can use a light coat of silicon to slide it into place in the impeller.
We offer these alone, with The Professor's Silly Juice or with an Impeller in a kit so look in our store.
Note: We offer this seal with the seal tool and silicon only or the seal with the seal tool, silicon and an impeller in our store.
1000, VG-1000, USSPS1000B, 5250-106, AS-1000, 071734S, PS-1000,319-3100B,waterway, executive, hiflo, hi-flo, wet end, wet end, spa wet end seal , hot tub wet end seal, 1000 seal, p-1000 seal, ps-1000 seal, p 1000 seal, ps 1000 seal
Visit our Store as we also offer these and other associated products and accessories for your Spa.
Please note: When you have a seal leaking in most cases you will need an impellor because the leak caused water to get into the metal shaft area that the impeller is screwed onto and expands and damages the impeller. In some cases you will need a front bearing too but not in all cases. We offer the impellers along with the seal in a kit in our store. Watch the video above for how to install the seal and other repairs for this pump as well.
