Product Description
NOTE: This Part will Fit Sundance® or Jacuzzi® Tubs with a Guangdong LX Wet End if you replace the entire Wet End for internal parts of the wet end you already have click here Jacuzzi® & Sundance® LX Parts
This 3 Horse Power 56 Frame Pump Wet End fits Intertek LX Brand Pump Motors only. These pumps usually have the part number WUA-300, WP-300 or LP-300 on the label. Watch the video for instruction on how to install this part and also how to determine if this is the correct part. It is about 7 1/4"" across the face of the pump, it measures about 7 3/8" from the bottom to the top of the pressure side of the volute, it also measures 4 13/16" from the back to front edge. The Suction and Pressure side thread fittings are called 2" x 2" but measure 3" from the edge of the thread to the edge of the thread.

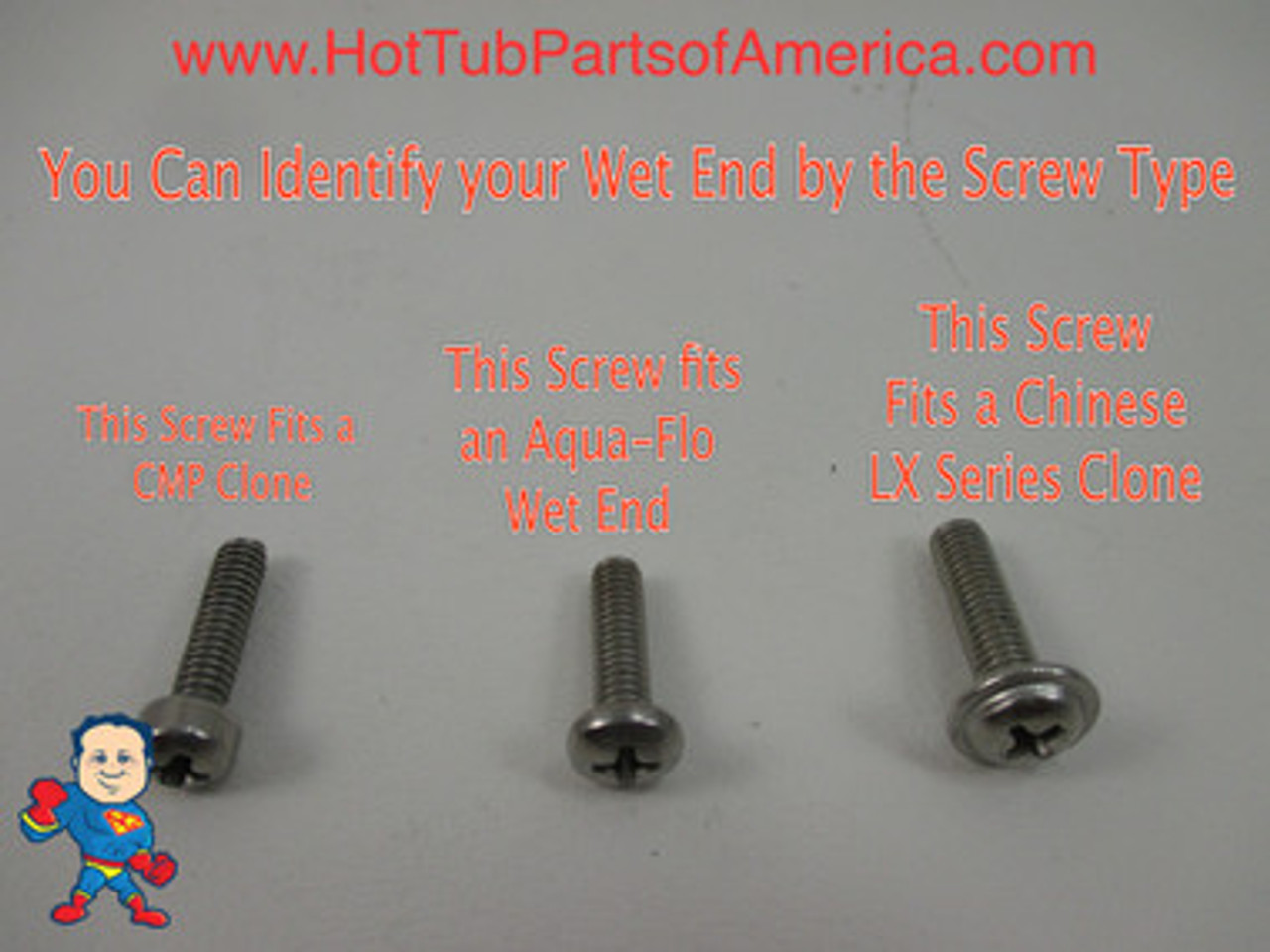

NOTE: This Wet End looks a lot like an Aqua-Flo and a CMP Wet End but they do not interchange!
If your original Wet End has a Bleeder Barb and the heads of the Bleeder Screws in your old wet end have a spot for a flat screw driver you will need a new bleeder barb... If the original has a wing nut style you already have the newer style bleeder barb and will only need a new one if your original one breaks..
Click this link for the new Style Bleeder Barb: Barbed Bleeder Plug WUA Intertek LX 48 or 56 Frame Wet End Fine Threads
