Product Description
Please Read this Note before proceeding!!
NOTE: This Part will NOT Fit Sundance®or Jacuzzi®Tubs with a Intertek LX Wet End for internal parts of that wet end you already have click here Jacuzzi® & Sundance® LX Parts
This 4.0 Horse Power Impeller, (2) Bearings & Seal Kit that fits a 56 Frame Pump Wet Ends manufactured by Intertek LX Brand only. See Notes Below... This Kit consists of an Impeller, Seal, Silicon and Seal Installation Tool. The pumps this impeller & seal Kit fits usually have the part number WUA-400, WP-400 or LP-400 on the label. Watch the video for instruction on how to install this part and also how to determine if this is the correct part. It is about 4 13/64"" across the face edge to edge, it measures about 3" from the tip of the front to the tip of the sleeve in the back, it also measures 7/16" from the inside of the vane edge to edge. Some of these impellers have a number on them B358-02 if yours does you must measure the overall width of the impeller to get the correct one. They cast one implore with that number on it and they trim the impeller down to the different horse powers so be sure you do measure edge to edge...

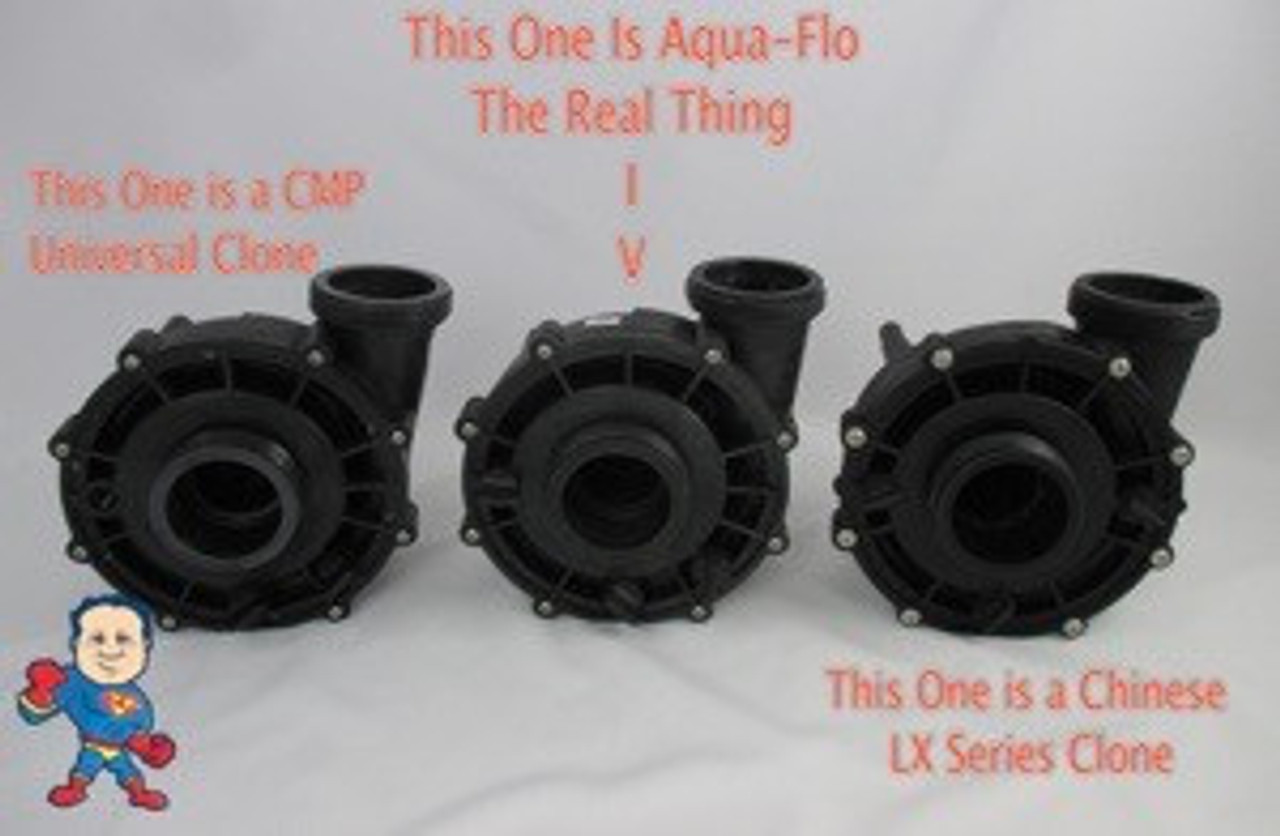

NOTE: This Wet End looks a lot like an Aqua-Flo and a CMP Wet End but they do not interchange see the video for how to tell the difference!
Note: These impellers have been redesigned so the size of the replacement will be different than the original..
Note: This Impeller Fits Intertek Chinese LX and LP series Pumps only Some Pump Part numbers are as follows: (WUA400-II, WUA400-I) (LP400) (WP400-II/,400-I)
NOTE: This Part will NOT Fit Sundance® or Jacuzzi® Tubs with a Intertek LX Wet End for internal parts of that wet end you already have click here Jacuzzi® & Sundance® LX Parts
Note: Colors of the Impellers can vary usually Black or Yellow..
To Install this Impeller & Seall Kit you will have to remove the face plate and unscrew the impeller. There are time where you will have to disassemble the motor in order to loosen the impeller because they get stuck when they leak.
Note: We offer parts & kits for this wet end and complete pumps in our store.
Visit our Store as we also offer these and other associated products and accessories for your Spa.
Please note: When you have a seal leaking in most cases you will need an impellor because the leak caused water to get into the metal shaft area that the impeller is screwed onto and expands and damages the impellor. We offer the impellers along with the seal in a kit in our store. Watch the video above for how to install the seal and other repairs for this pump as well.
