Product Description
Read This Note First!!
NOTE: This Part will NOT Fit Sundance® or Jacuzzi® Tubs with a Intertek LX Wet End for internal parts of that wet end you already have click here Jacuzzi® & Sundance® LX Parts

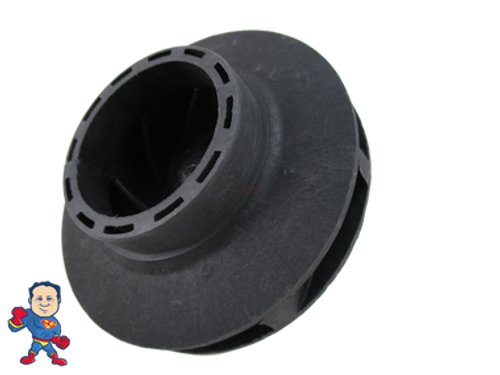

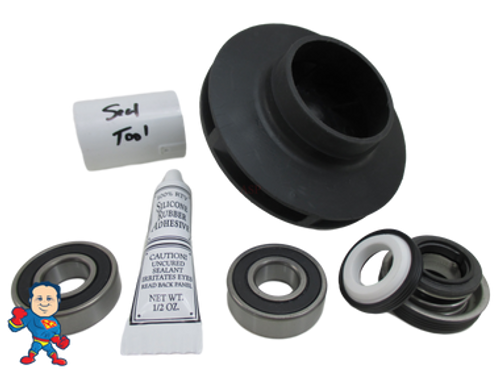

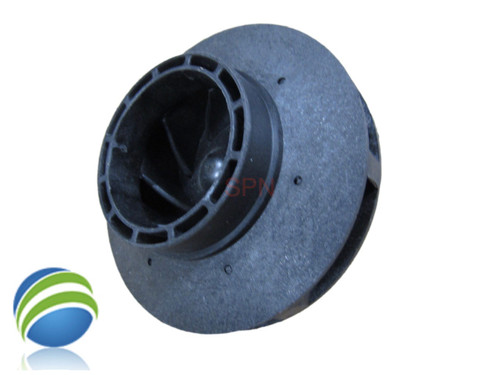

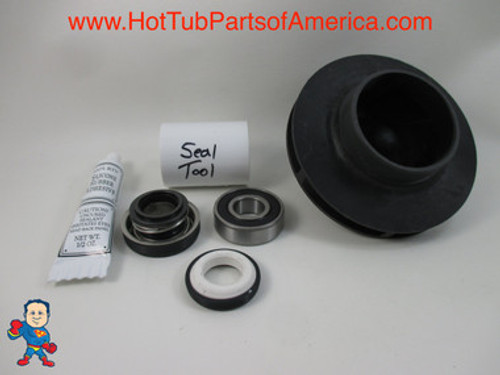

This 4.0 Horse Power Impeller, Bearing & Seal Kit that fits a 56 Frame Pump Wet Ends manufactured by Intertek LX Brand only. See NOTES Below... This Kit consists of an Impeller, Bearing, Seal, Silicon and Seal Installation Tool. The pumps this impeller & seal Kit fits usually have the part number WUA-400, WP-400 or LP-400 on the label. Watch the video for instruction on how to install this part and also how to determine if this is the correct part. It is about 4 13/64"" across the face edge to edge, it measures about 3" from the tip of the front to the tip of the sleeve in the back, it also measures 7/16" from the inside of the vane edge to edge. Some of these impellers have a number on them B358-02 if yours does you must measure the overall width of the impeller to get the correct one. They cast one implore with that number on it and they trim the impeller down to the different horse powers so be sure you do measure edge to edge... The Bearing in this kit does fit the motor this pump is associated with.
NOTE: This Wet End looks a lot like an Aqua-Flo and a CMP Wet End but they do not interchange see the video for how to tell the difference!
Note: These impellers have been redesigned so the size of the replacement will be different than the original..
