Product Description

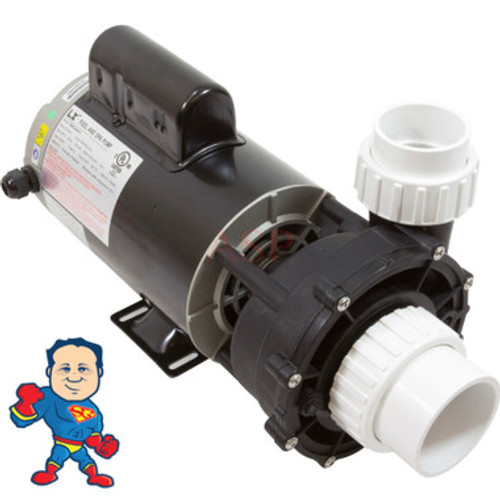

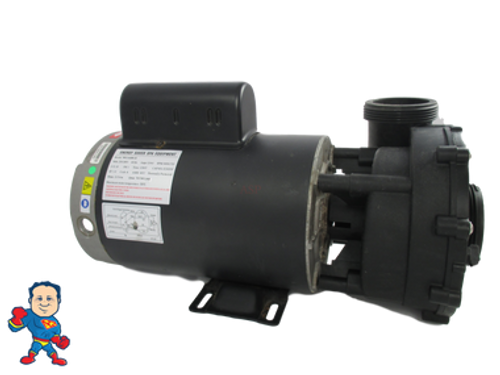

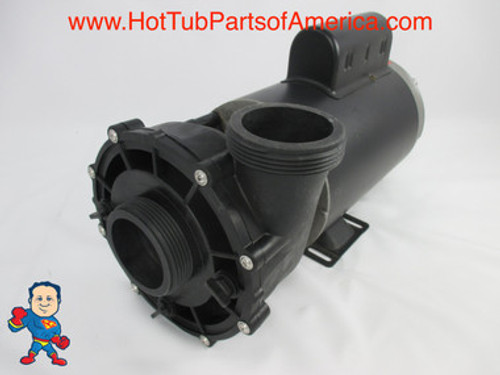

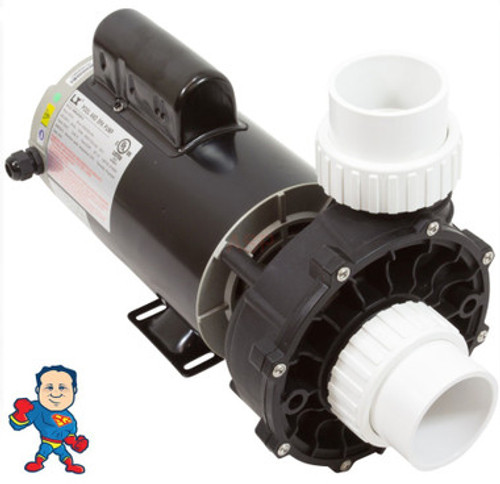

This part is a (1) Speed 56 Frame Complete Intertek Pump that fits Jacuzzi Premium brand Hot Tubs that have a band style base mount. These pumps usually have the part number WUA-400-I, and then 6500-352 or 6500-365 or 6500-367, or 6500-363 on the label. It is about 7 1/4"" across the face of the pump, it measures about 7 3/8" from the bottom to the top of the pressure side of the volute, it also measures 15" from the back to front edge. The Suction and Pressure side thread fittings are called 2" x 2" but measure 3" from the edge of the thread to the edge of the thread.
NOTE: This Pump looks a lot like an Aqua-Flo and a CMP Pump and they will interchange if you replace the entire pump!
NOTE: We offer this pump with the base made onto it for much less money but you will have to modify the way it is mounted to make the mounting fit but the plumbing is all exactly the same.. Click here for that pump.. Spa Hot Tub 56Fr Jacuzzi® LX Pumps 2" X 2" 2 Speed 230V WUA400
