Product Description

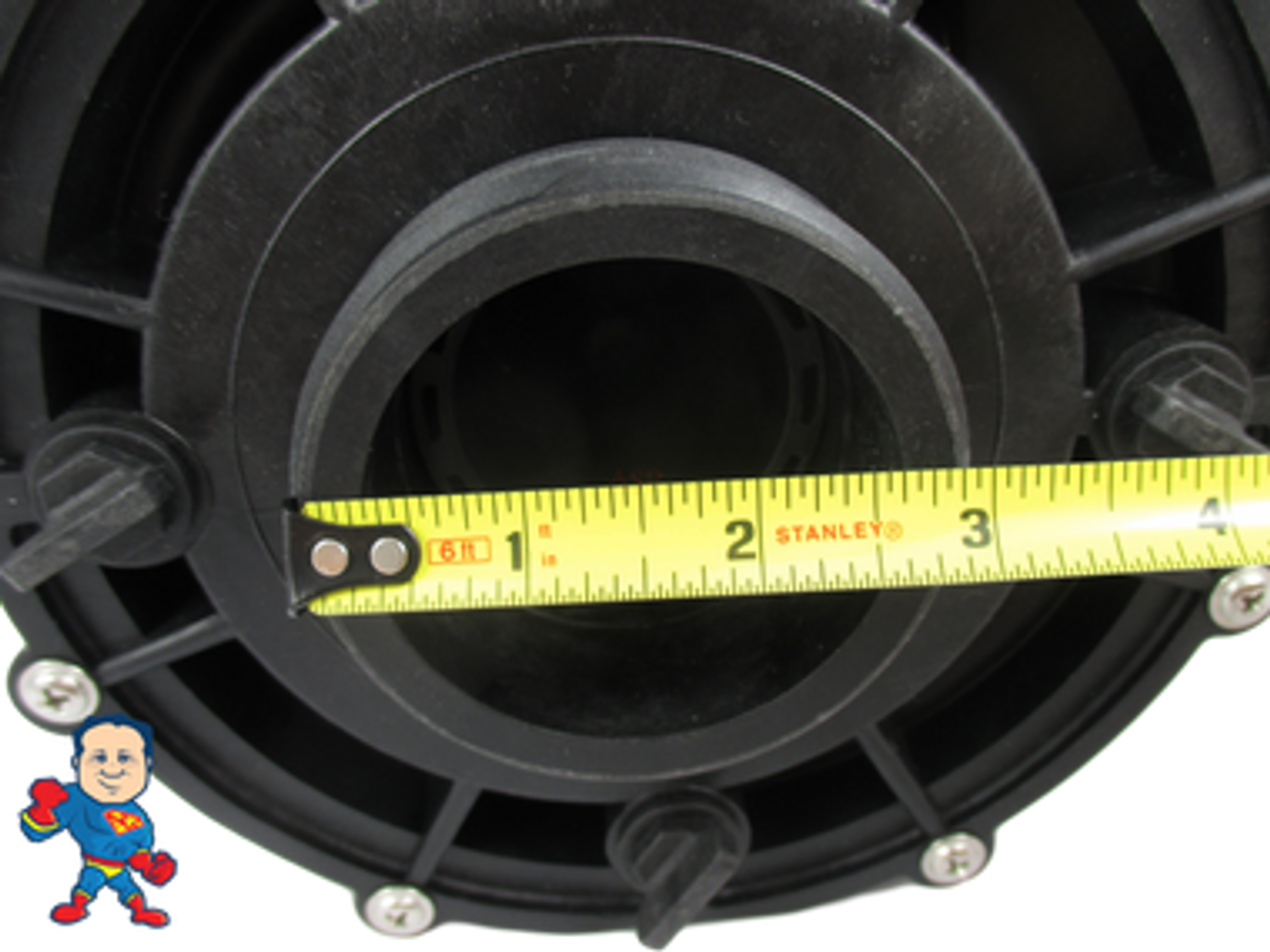

This part is a (1 or 2) Speed 56 Frame Complete Intertek Pump that fits Jacuzzi Premium brand Hot Tubs. These pumps usually have the part number WUA-400-II, and then 6500-352 or 6500-365 or 6500-367, or 6500-363 on the label. It is about 7 1/4"" across the face of the pump, it measures about 7 3/8" from the bottom to the top of the pressure side of the volute, it also measures 15" from the back to front edge. The Suction and Pressure side thread fittings are called 2" x 2" but measure 3" from the edge of the thread to the edge of the thread.
NOTE: This Pump looks a lot like an Aqua-Flo and a CMP Pump and they will interchange if you replace the entire pump!
If your original Wet End has a Bleeder Barb and the heads of the Bleeder Screws in your old wet end have a spot for a flat screw driver you will need a new bleeder barb... If the original has a wing nut style you already have the newer style bleeder barb and will only need a new one if your original one breaks..
Click this link for the new Style Bleeder Barb: Barbed Bleeder Plug Intertek LX 48 or 56 Frame Wet End Fine Threads Jacuzzi® or Sundance®
NOTE: We offer this pump without the base made onto it so you will not have to modify the way it is mounted but if you want to save some money and you are handy enough to make the modifcations to the mounting you can use the less expensive pump offered here..
Click here for the pump without the bracket..
56Fr Jacuzzi® Intertek Baseless Pump 2" X 2" 1 or 2 Speed 230V WUA400
