WUA400II, 6500-367, 56Fr Jacuzzi® Sundance Intertek Baseless Pump 2" X 2" 2 Speed 230V

Product Description

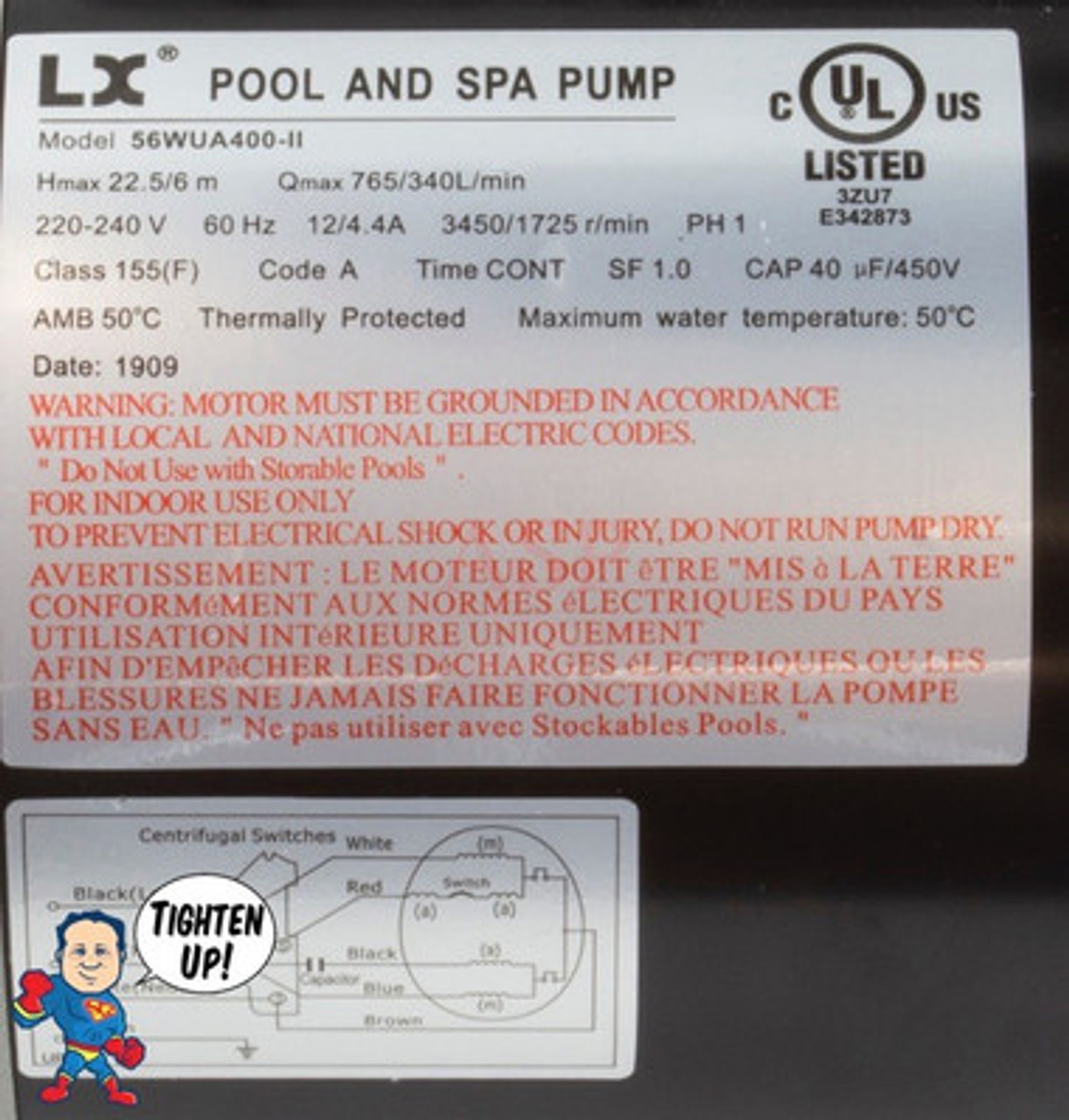

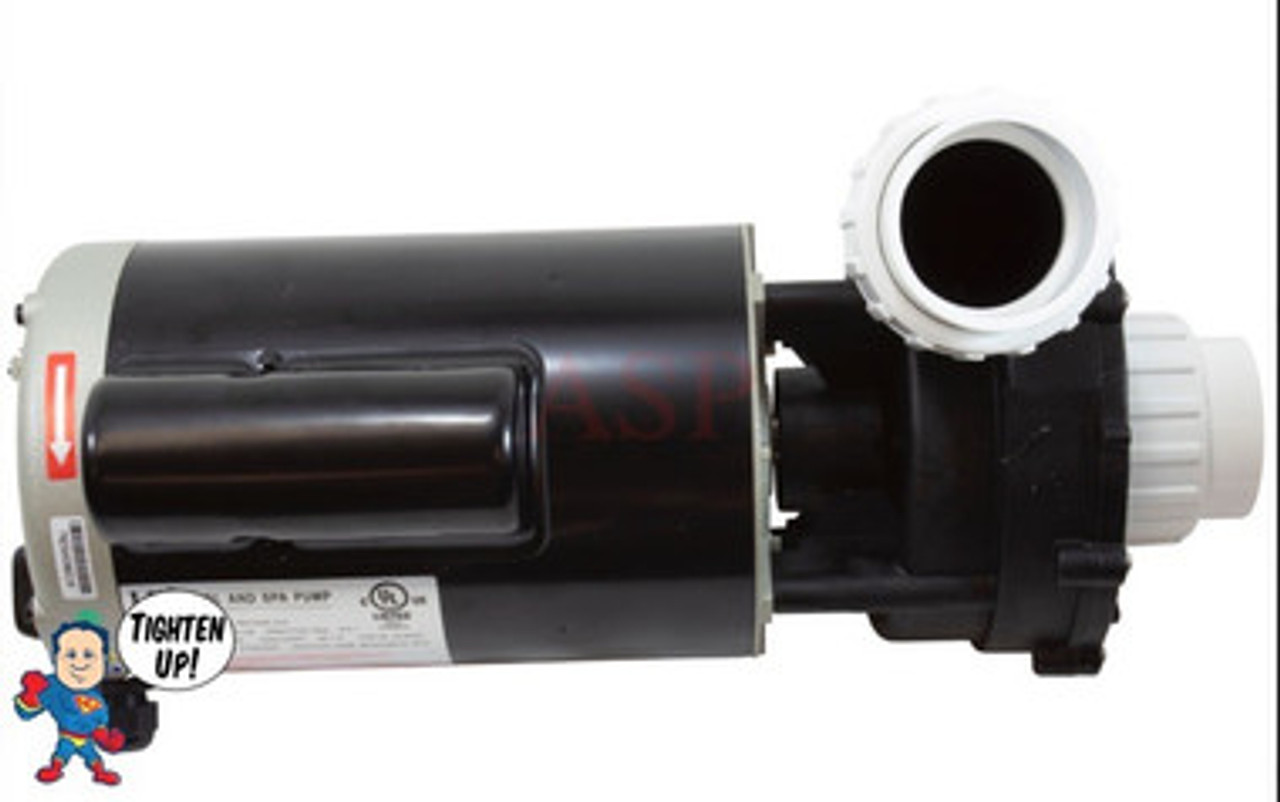

This part is a (2) Speed 56 Frame Complete Intertek Pump that fits Jacuzzi Premium or Sundance brand Hot Tubs that have a band style base mount. These pumps usually have the part number WUA-400-II, and then 6500-367 or 6500-365 or 6500-363 on the label. It is about 7 1/4"" across the face of the pump, it measures about 7 3/8" from the bottom to the top of the pressure side of the volute, it also measures 15" from the back to front edge. The Suction and Pressure side thread fittings are called 2" x 2" but measure 3" from the edge of the thread to the edge of the thread.

If you need a Bleeder Barb that screws into this pump face Click Here: Barbed Bleeder Plug Intertek LX 48 or 56 Frame Wet End Fine Threads Jacuzzi® or Sundance®

If You need Tubing Extension Kit for the Bleeder Barb Click Here: Connection Kit, Glue Kit, 3/8" Tubing, 1/2" OD, 6" length for Air Systems or Jet Body Air Connections

NOTE: This Pump looks a lot like an Aqua-Flo and a CMP Pump and they will interchange if you replace the entire pump!
