7023 Retro Fit Kit For 1999-2003 Gulf Coast Cool Night Series Spas

Product Description

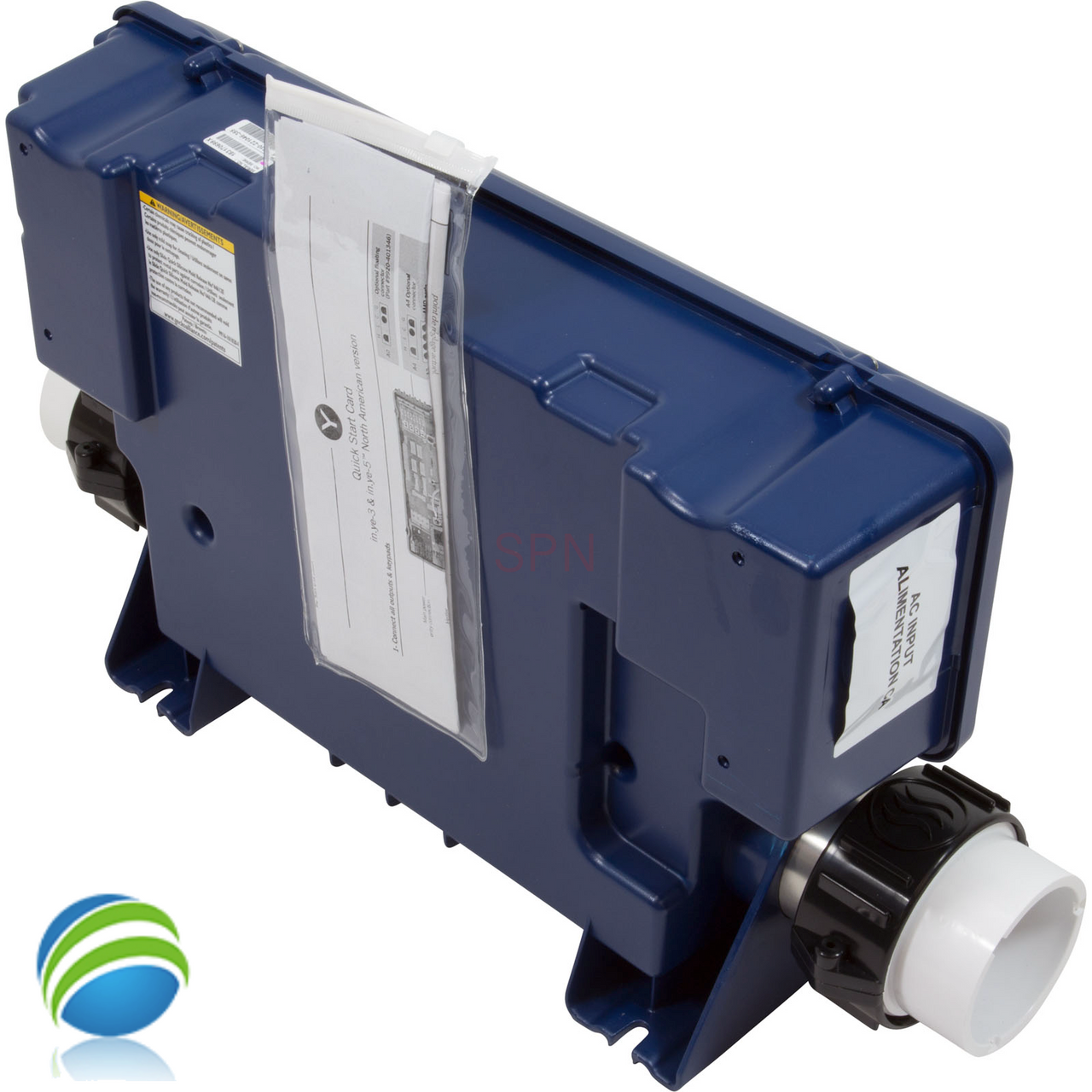

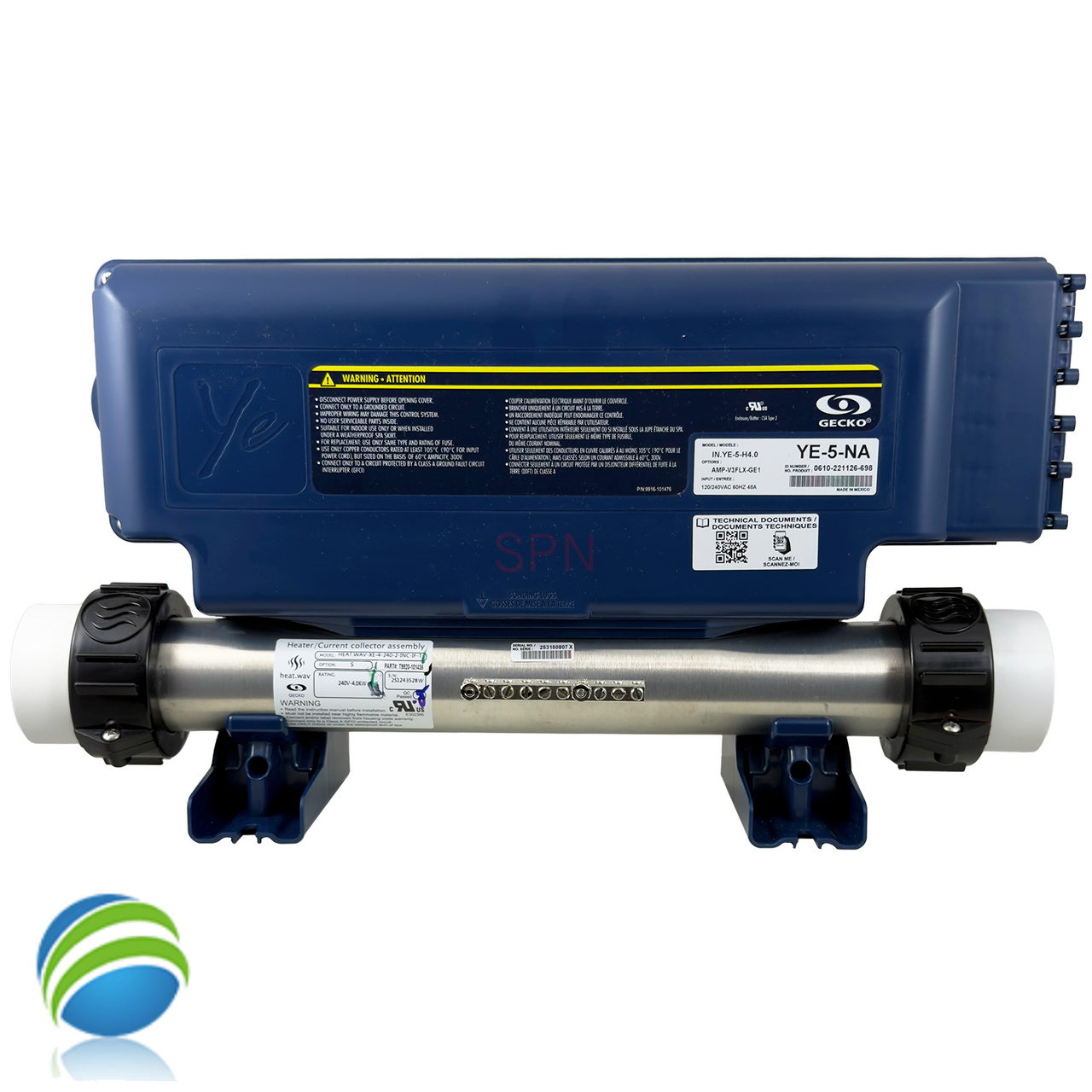

Retro fit kit used to replace the discontinued 7023 S-Class spa pack used in the 1999-2003 Gulf Coast Spas Cool Night Series. This versatile system can support Gulf Coast Spa models that had dual or single pumps as well as the blower, ozonator, and 12 volt light. This kit includes the spa pack w/ heater, topside control w/ adapter plate and power cords

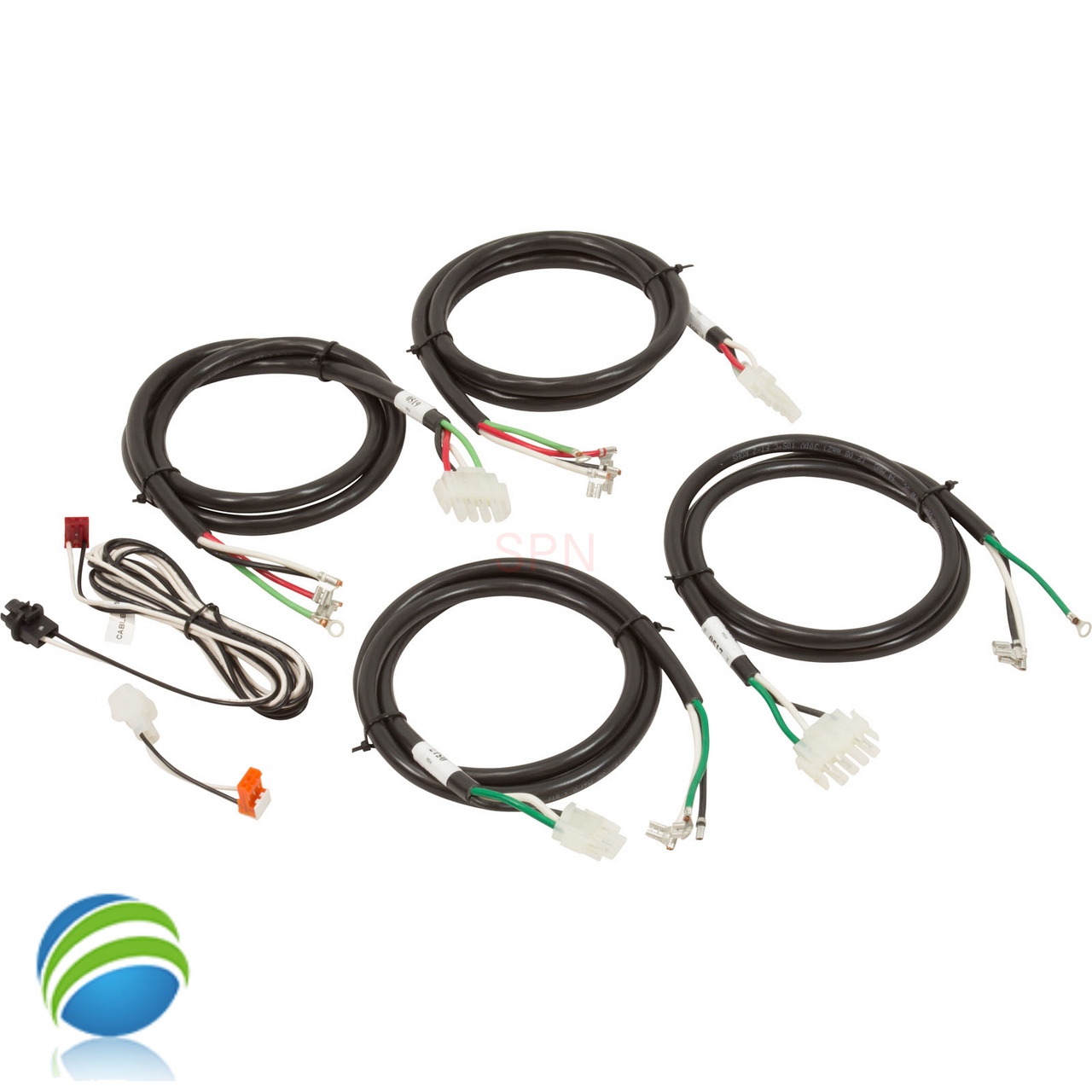

The heater is the same 15" length as the original and has the same fitting or union size, so need to replumb. Your power cords should be able to be reused, but just in case they are included. The topside control panel will fit with the use of the adapter plate to cover the larger hole. This model also includes the new WiFi module, you can now interact w/ your spa through a smart phone app for Android or Apple

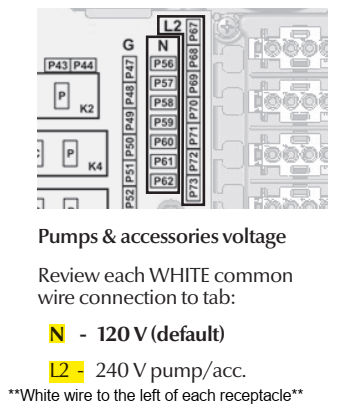

Please Note: This retro-fit kit requires minor adjustments to the voltage selection and the low level setting. These systems come out of the factory set for a 220 Volts incoming power (electric line) and 230 Volt pump, blower and ozonator circuits, but can easily be converted to 115 volt. All 1999 to 2003 Cool Nights Series Spas except for the Sarasota have 220/230 Volt pumps, 115/120 Volt air blower and 115/120 volt ozonator. To convert the circuits simply move the white wires under each receptacle from the N box to the L2 box. N = 115/120 Volt and L2 = 220/230 Volts

Follow the illustrations on the circuit board. See below

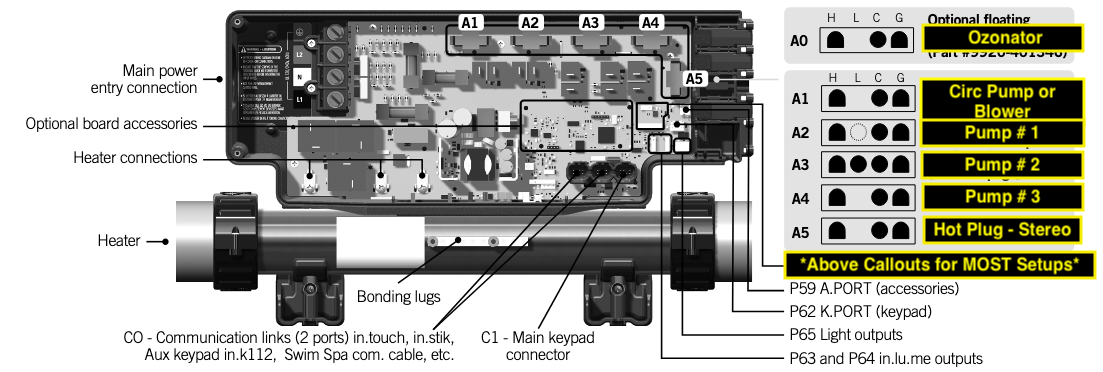

Location of receptacles:

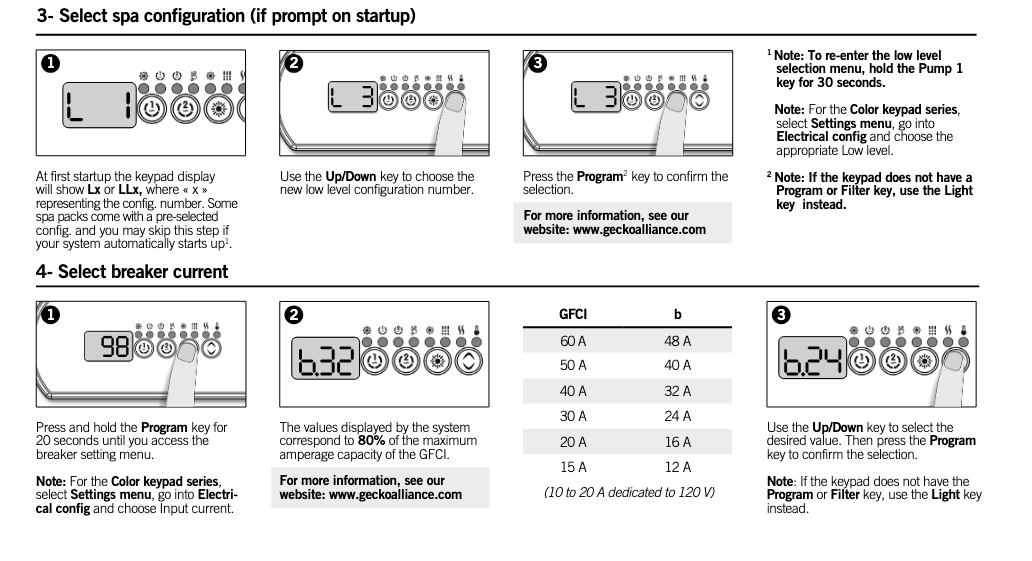

Here is some information on getting into the Low Level (LL) and Breaker (BR) Settings. The LL setting is set depending on what equipment you need to support:

Settings Per 1999-2003 Gulf Coast Cool Night Series Model:

7000 Cape Haze = LL 50

8000 Englewood, 9000 Rotunda, 10000 Boca Grande = LL 51
