Product Description

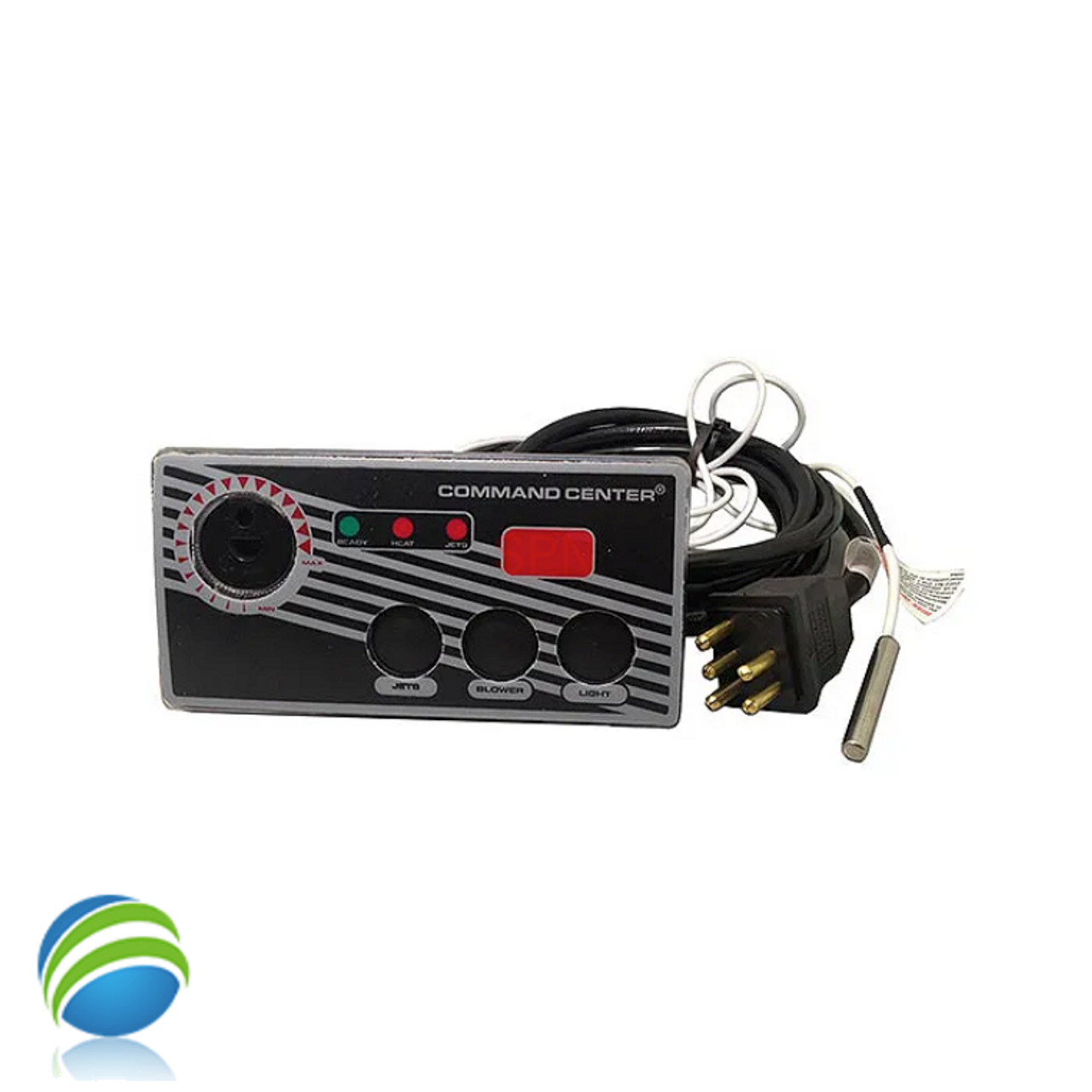

This part is an Analog Topside Control, Air, Tecmark, 115V, 3-Button, Temperature Display with 10' Cable & Overlay, sometimes called a Command Center.. This type topside can be found on Jacuzzi Whirlpool, Blue Ridge, Gatsby and many other brands with a Pneumatic Style control system.. This control features a 5 round pin plug, the overlay, a digital readout, temp Sensor with Cable and bulb to be placed either in a thermowell or on the pinch plate of the heater..
These come in either 115v or 230v and also a variety of pumps and blower configurations..
Manufacturer Tridelta, Tecmark
Model Command Center, Digital
# of Buttons 3
Voltage 115v
Hole Size 5-5/8" x 2-1/2"
Overlay Dimension 6-3/8" x 3-1/8"
Panel Size 6-1/2" x 3-1/4"
Cord Length 10ft
Bulb Size 5/16"
Capillary Length 48"
