Product Description

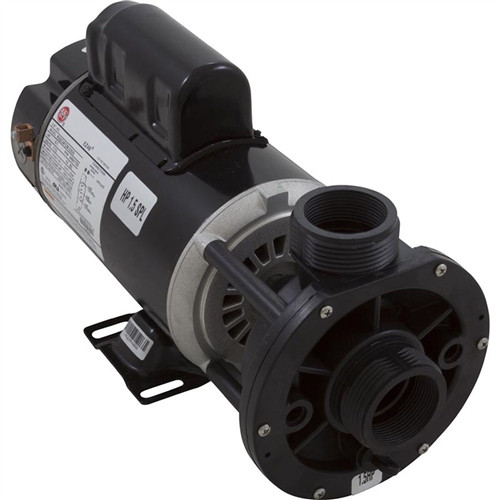

1.5 Horsepower Center Discharge pump assembly used in the Gulf Coast Spas Sarasota models and many Hydro Spa Stamina and Vitalizer models. Original versions are easily identified by 4 Phillips head screws in the wetend faceplate. All new versions now have 6 Phillips head screws in the faceplate and are 100% compatible. Some of these units can be found with an Emerson motor, model # C55MWJKN-4528.
The unions that screw the plumbing to this pump are 1-1/2" and will measure 2-3/8" across the male thread or inside of your pump union. New models of this now come with a 13.3 amp motor which replaces the previous 16.4 amp.
| Motor Voltage | 115v |
| Speed | 2 Speed (2-Spd) |
| Motor Amperage/Wattage | 13.3/4.1A (previously 15.7-16.4 amps) |
| Horsepower | 1.5SPL |
| Manufacturer | Waterway |
| Pump Model | E-Series Center Discharge |
| Suction Pipe Size | 1-1/2" (2-3/8" OD) |
| Suction Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Suction Style | Center |
| Discharge Pipe Size | 1-1/2" (2-3/8" OD) |
| Discharge Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Discharge Style | Center |
| Motor Frame | 48 Frame Thru-Bolt |
| Drain Plug Location | 3,6,9 o`clock |
Please Note: Not all Hydro Spa Stamina and Vitalizer models used this style pump.
