Product Description

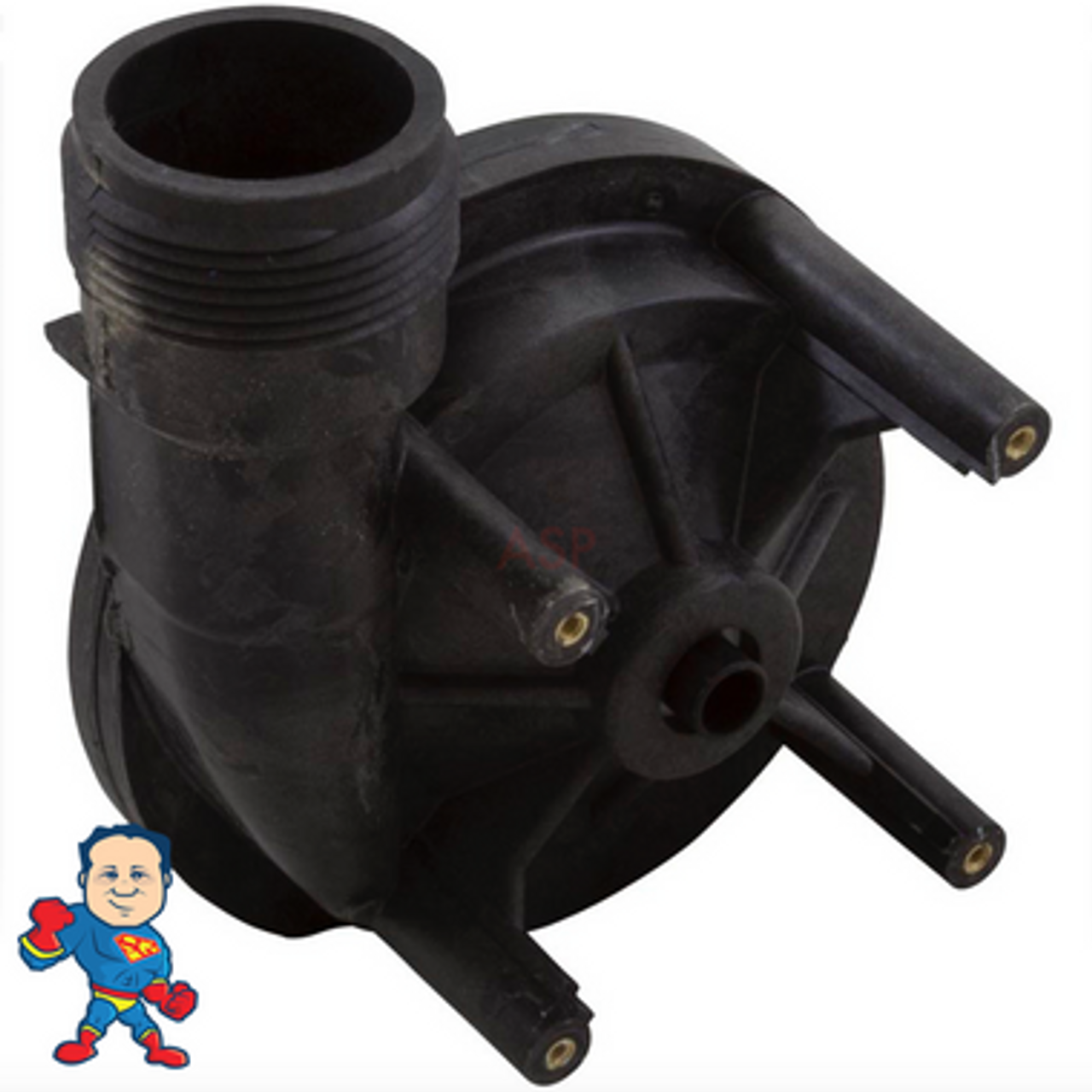

This part is a Complete CMHP 1/15th HP Aqua-Flo 1 1/2" x 1 1/2" (Which measures about 2 3/8" Across the Threads) Side discharge 48 frame wet end for CMHP pumps. This wet end is used with a 48 frame motor that would have about .6 Amps on High Speed on a 230V motor and would be about 1.3Amps on a 115V Motor.. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.
Note: The 48 frame Circ-Master motor measures about 5 1/2" across the motor and will have 1/4" heads on the thru-bolts and will measure about 5 3/16" between the thru-bolts in a cross pattern and 56 frame motor measures about 6 1/4" across the motor and will have 5/16" heads on the thru-bolts and will measure about 5 7/8" between the thru-bolts in a cross pattern..
