Product Description
This is a 1/15th HP Impeller for an Aqua-Flo Circulation Pump 48 Frame Side or Center Discharge CMHP, CMCP and FMVP Series Wet End. This Impeller fits between the Face and the Volute of an Aqua-Flo CMHP, CMCP and FMVP Series Wet End. I would advise replacing the Seal when you replace the Impeller. This Impeller uses a Seal that can be found in a Link Below.
This Impeller uses the Seal and Wear Ring found below:
Shaft Seal Kit, PS-200, 5/8" Shaft, Silicon & Tool Buna Fits Most Aqua-Flo Wet Ends
Wear Ring, fits AquaFlo, FMHP, FMCP, TMCP, pump impellers, 1 3/4" hole

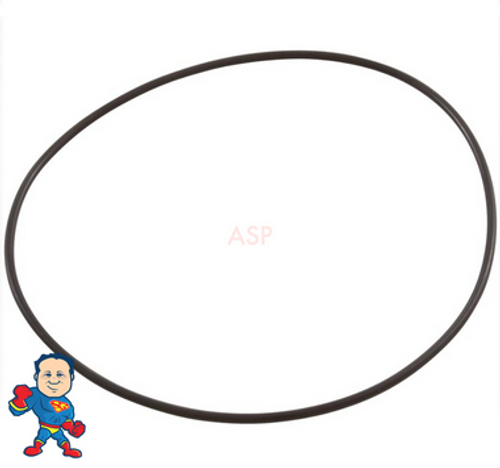

O-Ring, Aqua-Flo, FMCP, FMHP, TMCP, CMHP, 1-1/2" Face O-Ring
Note: On a Circulation Pump a 115v motor that uses this Impeller would show about 1.3 Amps and a 230V motor that uses this impeller would use about 0.6 Amps.
| Impeller Type | Closed Face |
| Impeller Diameter OD | 3-3/4" |
| Vane Width ID | 1/4" |
| Eye Diameter OD | 1-3/4" |
| Eye Length | 15/16" |
| Impeller Width OD | 1/2" |
| Seal Seat Depth | 1/4" |
| Shaft Length | 1-3/4" |
| Shaft Diameter OD | 5/8" |
| Seal Seat Diameter OD | 1-1/4" |
| Manufacturer | AquaFlo |
| Pump Application | CMCP, FMHP, FMVP, TMCP |
