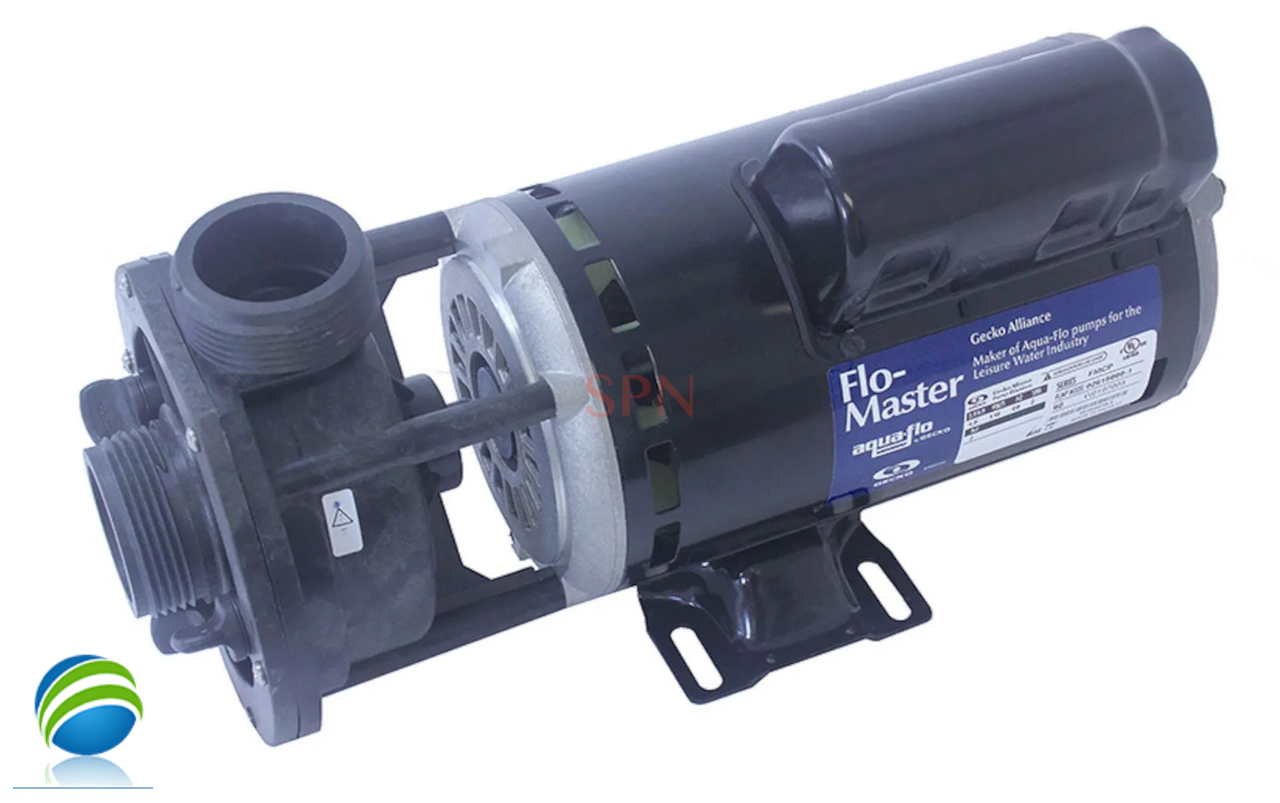

Product Description
This Pump is a 48Frame 115V 2 Speed with a 1.0 HP Wet End that features a 1 1/2" x 1 1/2" Center Discharge inlet and outlet Wet End that measures about 2 3/8" across the threads...
High speed Amperage is 9.5A and low speed is 3.2 Amps..
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | 3,6,9 o`clock |
| Pump to Motor Foot Types | 15 |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 1-7/8" id, 2-7/16" od |
| Suction Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2" |
| Discharge Style | Center |
| Discharge Connection (Physical Dimension) | 1-7/8" id, 2-7/16" od |
| Discharge Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2" |
| Horsepower | 1.0hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 9.5A/3.2A |
| Manufacturer | AquaFlo/Gecko |
| Pump Model | Flo-Master FMCP |
| Manufacturer Impeller Number | 91693601 |
| Volute Fastening Type | 6 Screws |
| Volute/Sealplate Number | 92770603 |
Read this information to Help to determine the Frame and HP.. The way you can determine whether your pump is a 48 or 56 Frame is by measuring the width of the motor. A 48 Frame motor will measure 5 3/4" wide across the back and a 56 Frame will measure about 6 1/2" wide across the back.
For 230 Volt Pumps Look on the label of the motor for the two amperages if you have a 2 speed pump, if its a single speed look for a single amperage. It will look something like this: 10.0/3.5 The 10.0 is the high amperage in this example.
8.0 = 1 HP
10.0 = 2 HP
12.0 = 3 HP
14.0 = 4 HP
16.0 = 5 HP
For 115 Volt Pumps Look on the label of the motor for the two amperages if you have a 2 speed pump, if its a single speed look for a single amperage. It will look something like this: 10.8/2.8 The 10.8 is the high amperage in this example and would equate to a 1 HP.
8.0 = .5 HP
9.0-10.0 = .75 HP
10.0-13.00 = 1 HP
13.5-15.0 = 1.5 HP
16.0-20.0 = 2 HP
Note: These Amperages are Averages so find the Amperage closest to your pumps Amperage. Note for the Note: 2HP 115V pumps are very rare, do not order one thinking you can add more power. This pump or even a 1.5HP pump will cause your PLug N Play tub to damage the electrical system, Plug, Wires and even the pump motor.
NOTE: Your pump or motor may say a different Horse Power than what you see here, DO NOT go by what is listed on the motor, go by the amperage on the label.
NOTE for the NOTE: TRUST ME ON THIS, everybody lies about their Horse Power. But the amperage does not lie. Most people are told they have 5 HP pumps, if you do the math two 5 HP pumps at 16 amps is 32 amps. Plus a 5.5 KW heater is 21 amps. That means with both pumps running and the heater on it will draw 53 AMPS. I bet your HOT TUB is on a 50 AMP breaker. Therefore contrary to what you have been told you DO NOT have a 5 or 6 or 7 Hp pump.
