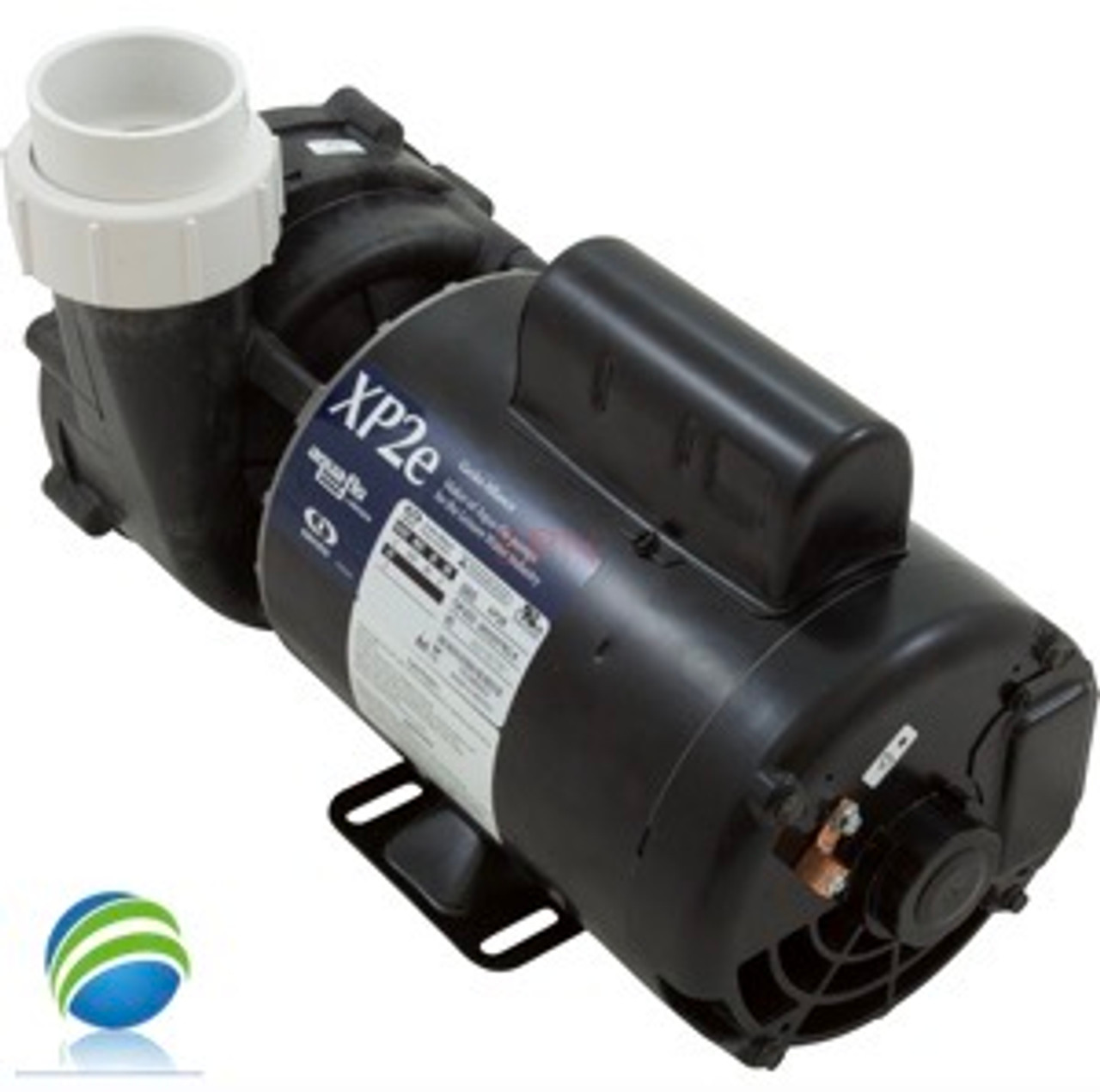

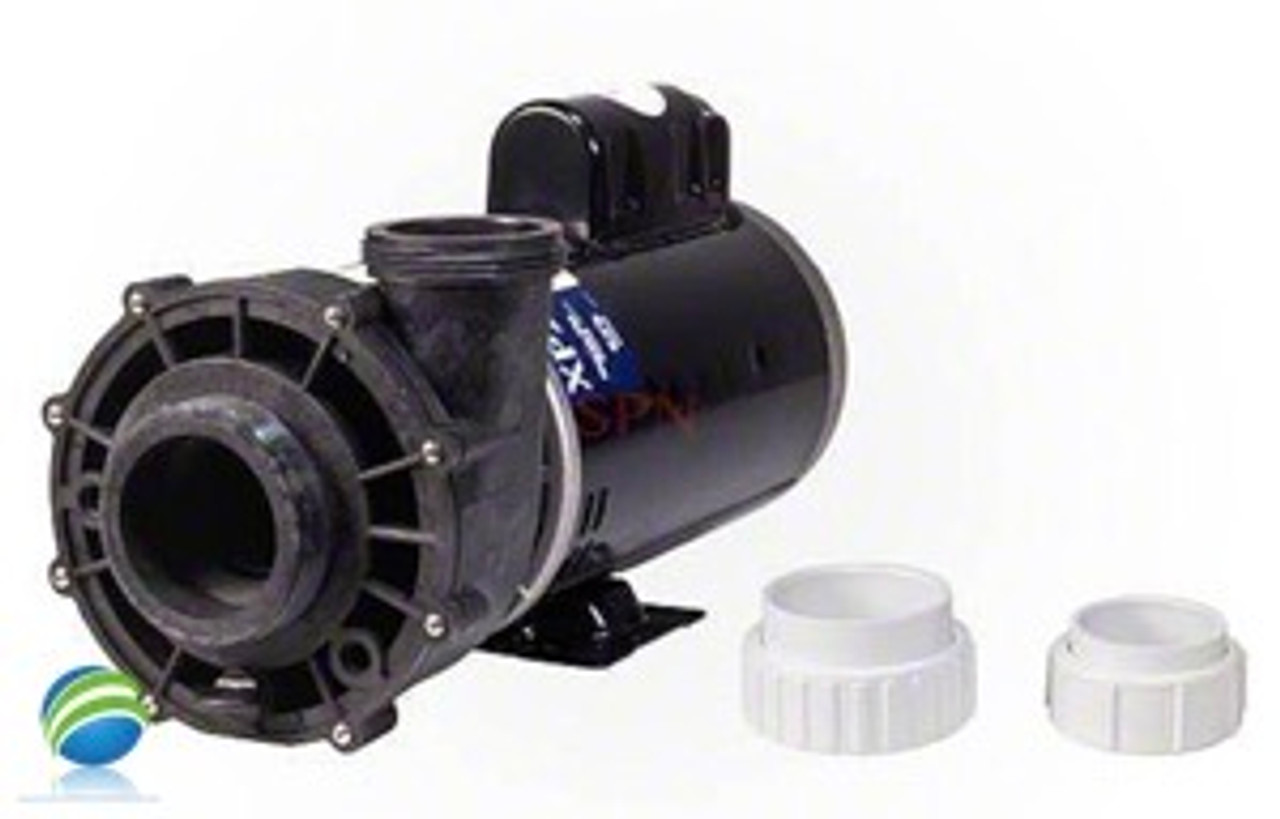

Complete Pump, Aqua-Flo, XP2e, 3.0HP, 230v, 56fr, 2 1/2"X 2" 1 or 2 Speed 10A

This Jet Pump is found from the factory Rarely in hot tubs so be sure you are choosing the correct one.

This pump is a 56 frame XP2e called 3.0HP I would call it a 2.0HP 230V Side Discharge wet end with a 2 1/2" suction side which measures about 3 5/8" edge to edge and 2" pressure side which measures about 3" edge to edge. The amperage is 10 Amps on High Speed and 3.5 Amps on Low making it a 2.0 Horse Power Pump..

Note: You need to be sure of your voltage by checking one of two things. Either the label on the pump which will say either 115V or 230V or you can look to see where the white wire from the pump is located in the pack if you can't see the label. If the white wire is on the red leg or #2 leg the pump is 230V if it is on the Neutral or the White AC leg. Always turn the breaker to the hot tub off before doing any of these checks.

 If You need a pump Bleeder Barb Click here: Barb Adapter, 3/8"b x 1/4"mpt, With Silicon Kit Pump Wet End Face fits Aqua-Flo & CMP

• Fine tuned impeller that moves water through the system with maximum performance
• 2 1/2" intake and 2" discharge
• 56-frame motor for added strength
• Thermally protected to extend life expectancy of motor
