Complete Wet End, Aqua-Flo ,XP2, Xp2e,3.0HP, 2"x 2" , 48fr, fits Motors with 12.0A/230V

Product Description

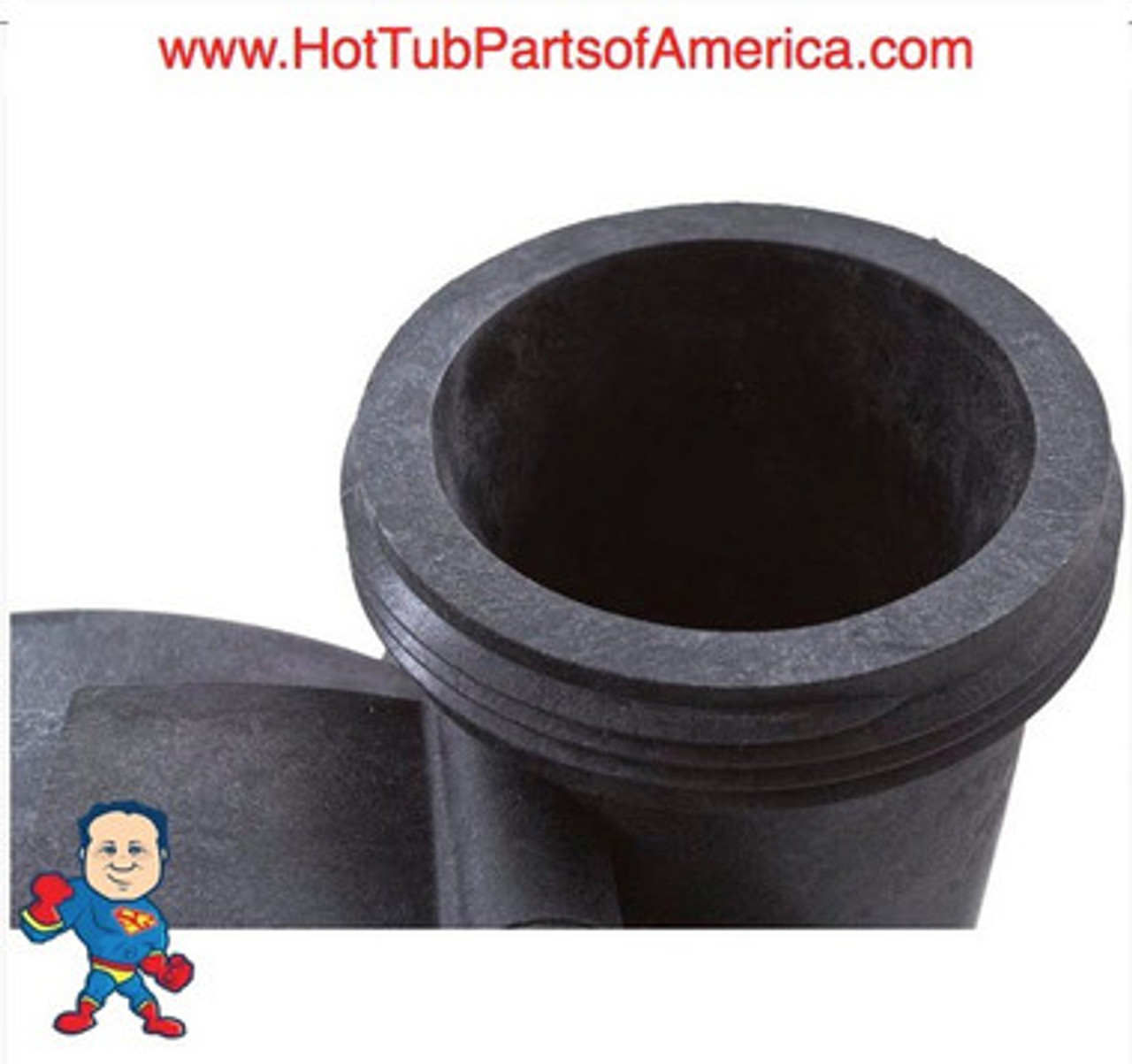

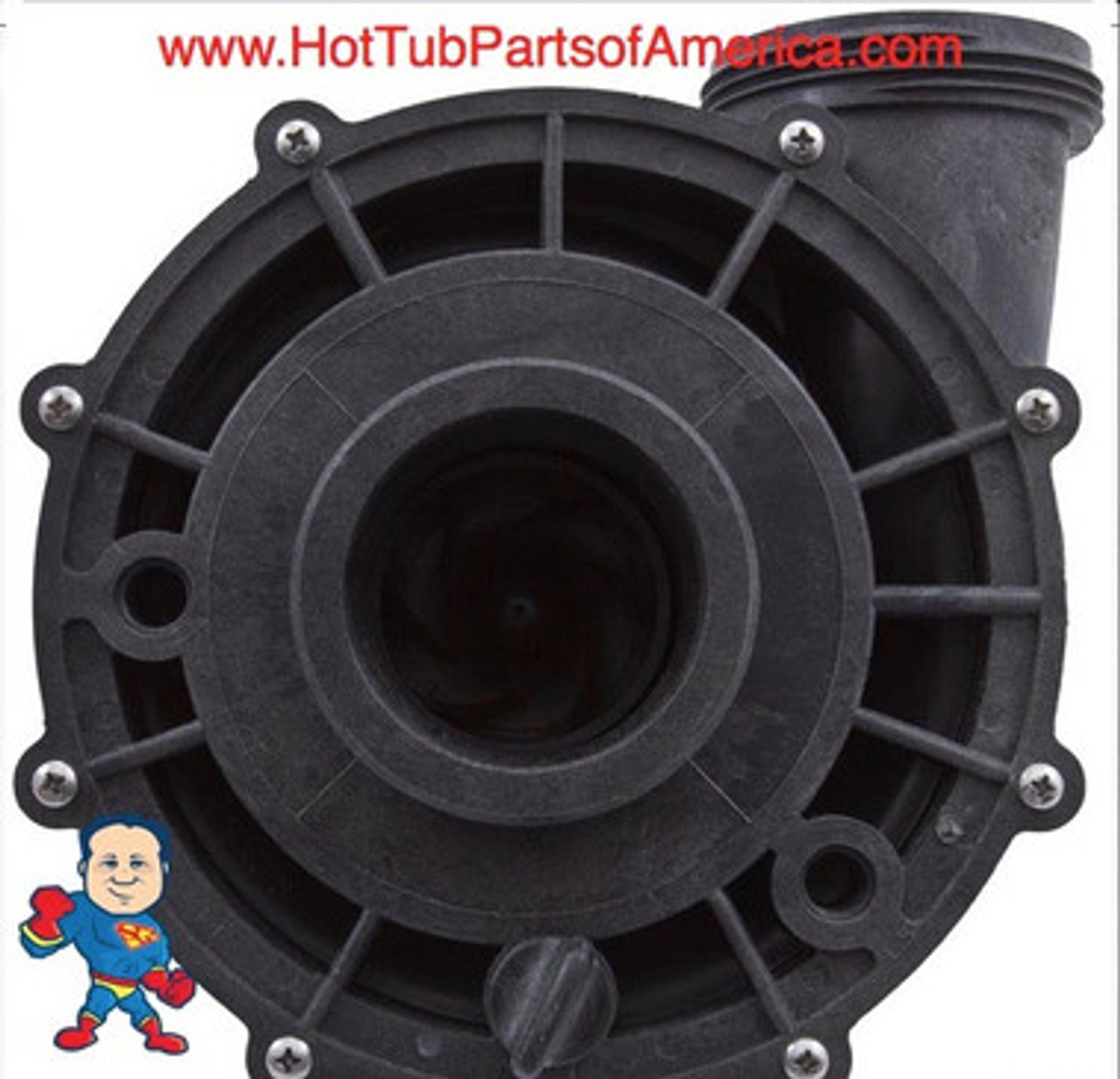

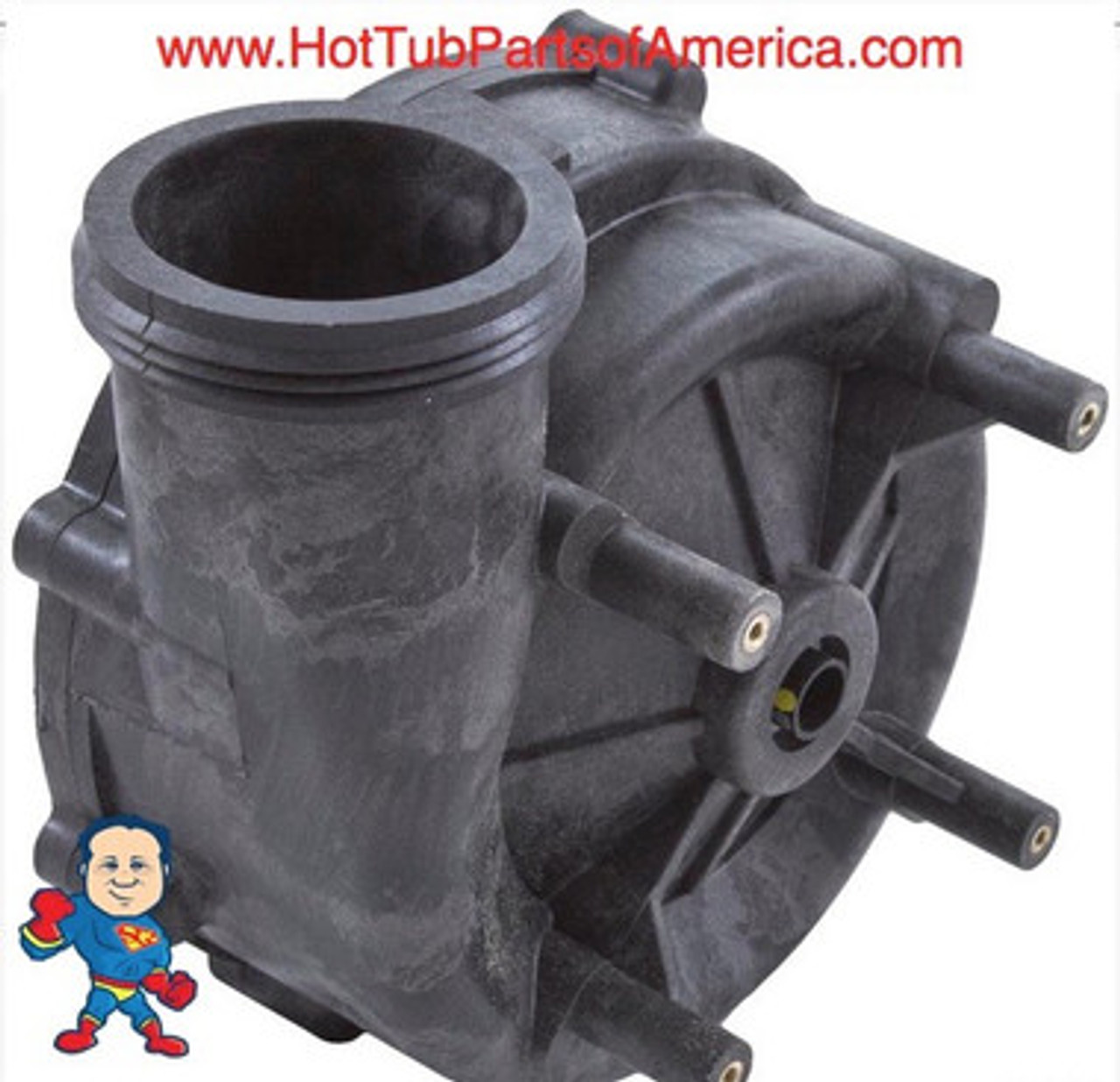

This part is a Complete 3HP Aqua-Flo 2" x 2" ( Which measures about 3" Across the Threads) Side discharge 48 frame wet end for XP2 pumps. This wet end is used with a 48 frame motor that would have about 12.0 Amps on High Speed on a 230V motor and not available for a 115v motor. The motor used may be either a single or dual speed. The wet end may be rotated 90 degrees to change the discharge position. The complete wet end includes: the volute, seal, impeller, wear ring, suction cover, suction cover o-ring, drain plug, drain plug o-ring and suction cover screws.

If you need a barb for the front of your wet end where a small hose connects here are choices for those Barbs with or without sealer.. I always seal these with silicon Pipe tape does not work well on these fittings:

Barb Adapter, 3/8"b x 1/4"mpt, Pump Wet End Face fits Aqua-Flo & CMP

Barb Adapter, 3/8"b x 1/4"mpt, With Silicon Kit Pump Wet End Face fits Aqua-Flo & CMP

Note: You always base your choice of HP on the Amperage of the motor it is going on see the chart below.. a 48 frame motor measures about 5 1/2" across the motor and will have 1/4" heads on the thru-bolts and will measure about 5 3/16" between the thru-bolts in a cross pattern and 56 frame motor measures about 6 1/4" across the motor and will have 5/16" heads on the thru-bolts and will measure about 5 7/8" between the thru-bolts in a cross pattern..

 Horsepower VS Amperage Chart
