Product Description

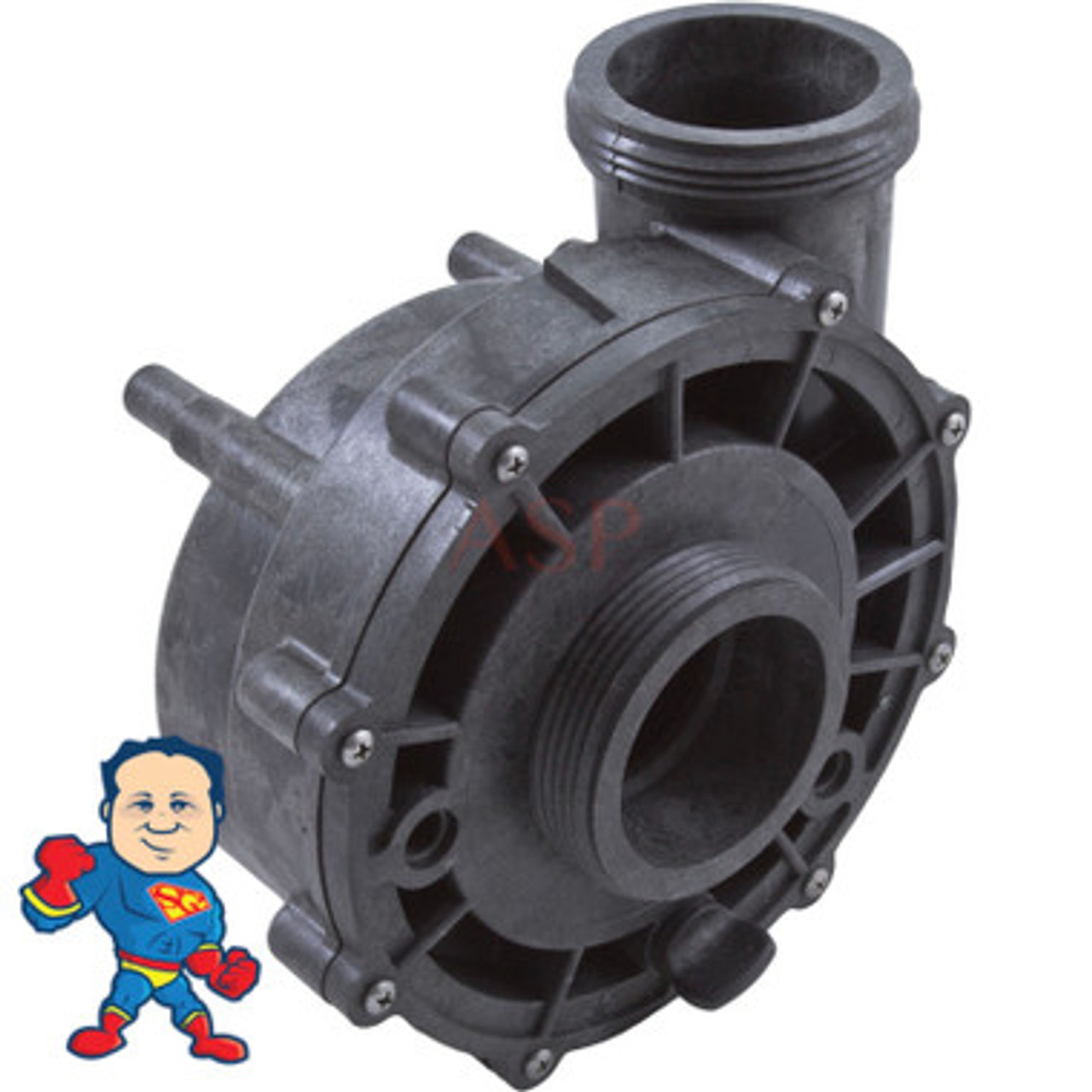

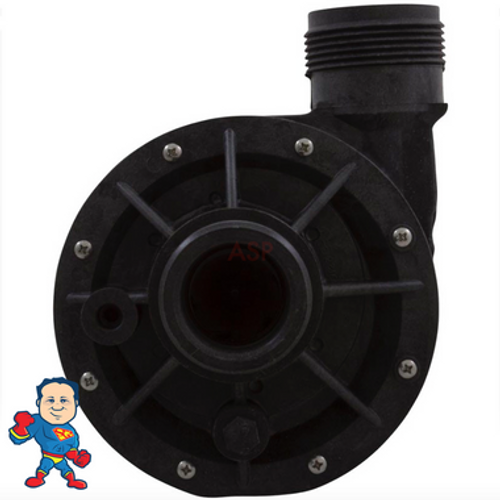

This part is a Complete Wet End for a Sundance, TheraMax II, 6500-901 or 6500-902, 2.5HP, 230v, 56fr, 2"X 2" 11-12A with a 2" suction side and 2" pressure side which measures about 3" edge to edge. The amperage on the motore this would be on is about12 Amps on High Speed making it a 2.5-3.0 Horse Power Pump..
If You need a pump Bleeder Barb Click here: Barb Adapter, 3/8"b x 1/4"mpt, With Silicon Kit Pump Wet End Face fits Aqua-Flo & CMP
For a Complete Pump Click this Link: Sundance TheraMax II 6500-901 56 frame 2.5HP (1) Speed 230V Side Discharge wet end
| Manufacturer | Jacuzzi |
| Pump Model | Theramax II |
| Motor Frame | 56 Frame Thru-Bolt |
| Drain Plug Location | 4,6,9 o`clock |
| Suction Style | Center |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 2" |
| Discharge Style | Side |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 2" |
| Horsepower | 3.0hp |
| Volute Fastening Type | 8 Screws |
