Product Description
The next generation feature rich Balboa BP7 control system with a 4.0KW heater bundled with the sleek rectangle shaped 6 button TP500 topside control with large easy to read backlit LCD screen and simple to follow menus.
Kit includes: system, panel, panel adapter plate, light cord and overlay(s)..
If you want the Wifi Connect Kit that works with this control system click here: Balboa, Wifi Module Kit, Platinum BP Series
BP7 System Specifications:
- 230 volts 60HZ only, cannot run on 120 volts
- 4.0KW heater, 15" Flange to Flange, 2" Union (3" ID)
- Can operate:
- Pump 1 - 1 or 2 speeds (Default setting 2 speed, can be changed)
- Pump 2 - 1 or 2 speeds or Blower
- Dedicated circulation pump, (min 20 GPM and min 1.5" plumbing required)
- Ozonator - M7 Patented Sensor heater technology
- Wifi: Compatible with Balboa ControlMySpa WiFi (Sold Separately)
- Balboa Bluetooth Audio compatible, module 59089 sold separately
- Spa light control 1 Amp max
- 50 Amp GFCI required if running more than 1 pump
- Balboa Spa pack BP7 (4.0KW Heater)
- TP500 topside control Face size 6.32" x 2.25", (Hole size 5.77" x 1.65")
- Adaptor plate (Bezel) 9" x 4"
- Cord for light, 10' long
- Balboa BP7 programming manual

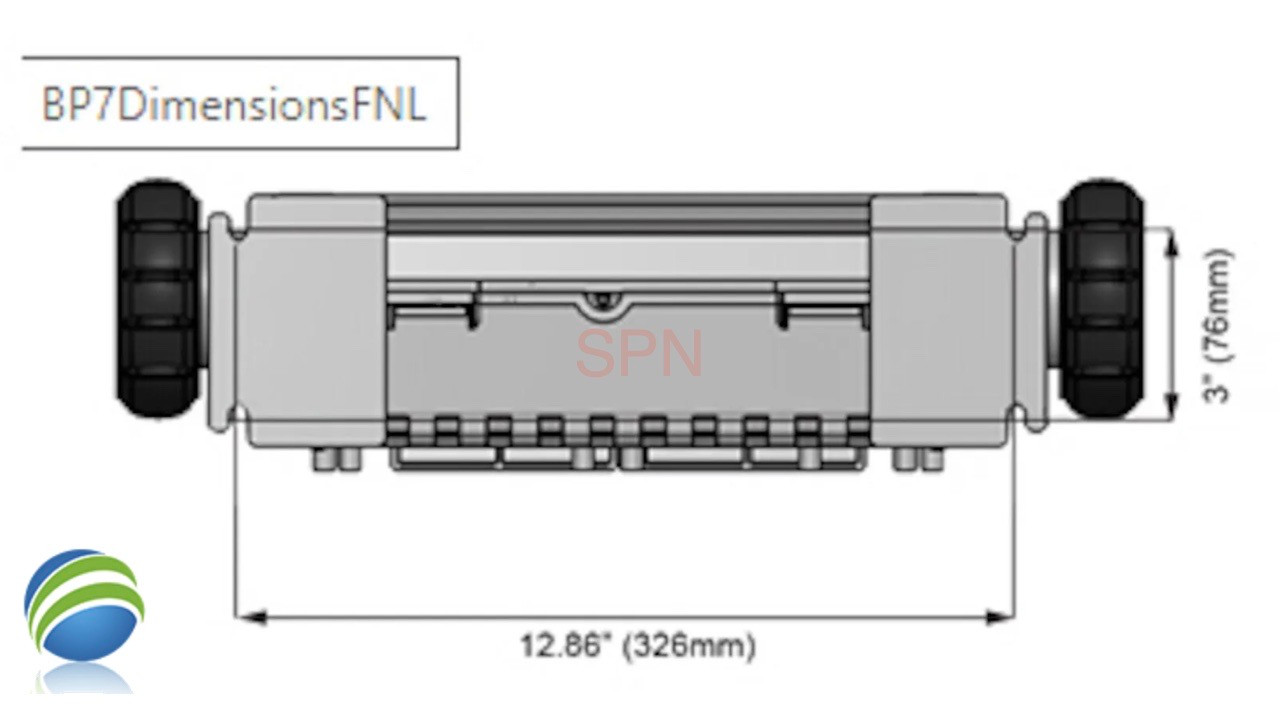

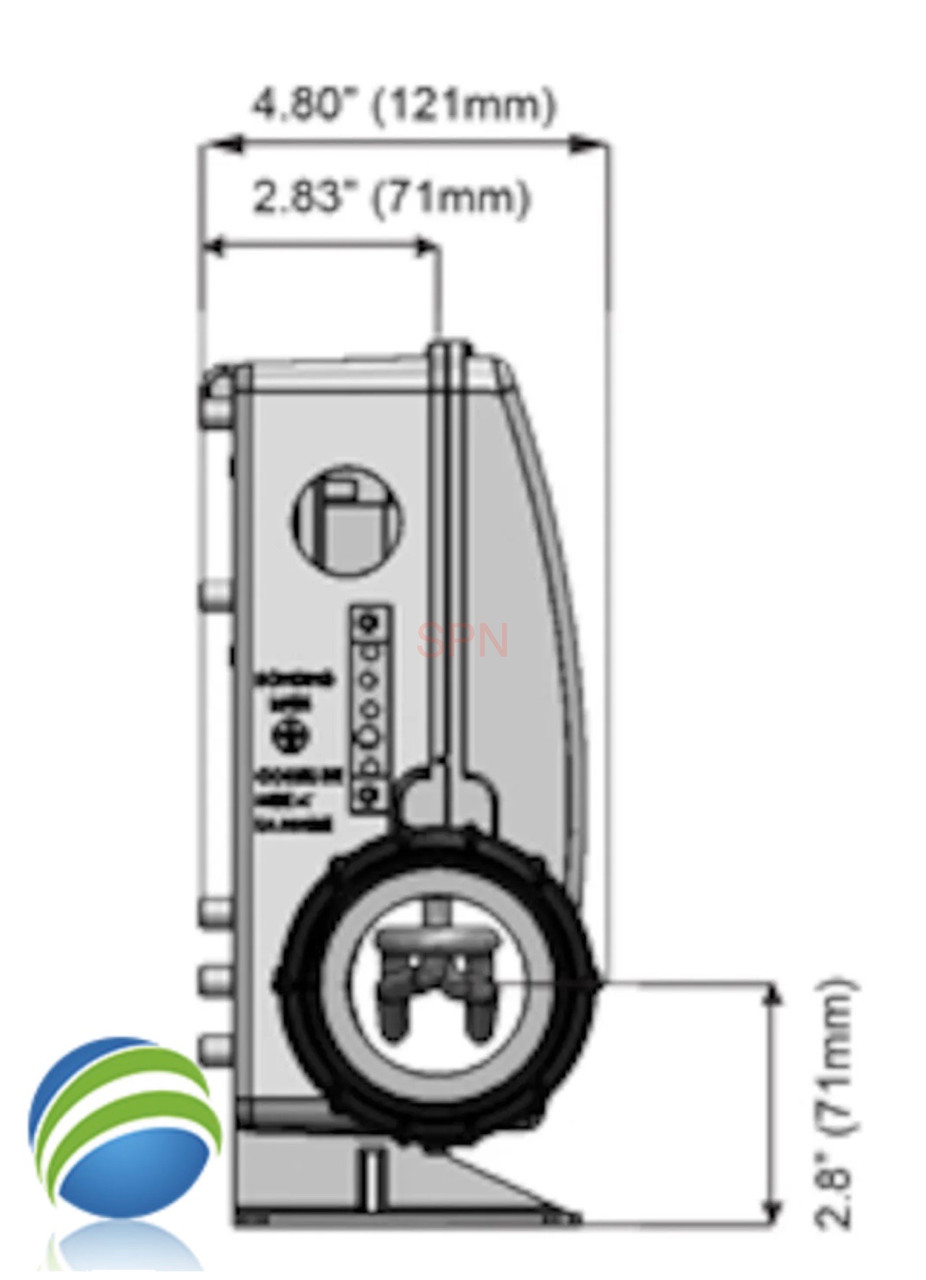

Control Box Dimensions
| Height | Width | Depth |
| 10-9/16" | 12-1/4" | 4-1/2" |
Important: This is a retrofit bundle that can replace other control systems and installation by a qualified person is recommended.
| Number Of Appliances | 2 |
| Manufacturer | Balboa Water Group |
| Model | BP7 |
| Supply Voltage | 230v |
| Heater Type | Fixed - Bottom |
| Heater Wattage | 4.0kW |
| Topside Included | TP500 |
| Circ Pump Ready | Optional 115v/230v |
| Auxiliary Topside Ready | Yes |
| Fiber Optic | No |
| Accessory Ready | Yes |
| Wi-Fi Compatible | Yes |
| 50/60 HZ | 50Hz, 60Hz |
