Product Description

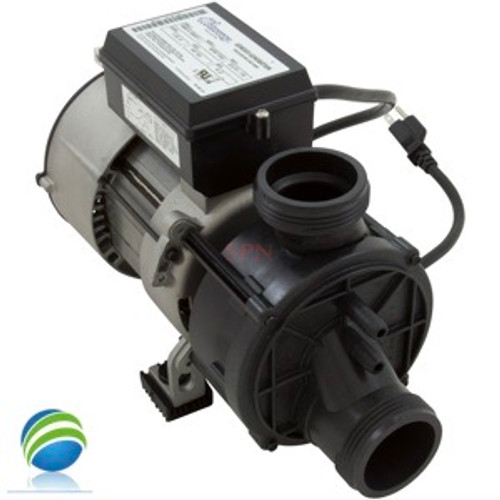

This pump is a Waterway Genesis Generation Energy Efficient Bath Pump 5.5 amps 115 Volts w/Air Switch
The Plumbing connections are 1 1/2" on the Pressure and Suction sides which measure about 2 3/8" across the threads..
There are two barbed fittings on the face of the pump for small lines, these come from the factory plugged. If needed, they can be drilled out easily.
Shaft seal replacement is a Seal 1000 Silicon Spa Hot Tub Pump Wet End Seal Part Waterway Pumps How To Video.
Spa Pump Features:
- Center Discharge
- 1-1/2" intake and discharge
- 3' NEMA power cord
- Single Speed, 3450 RPM, 60 hz
- Dimensions: (H x W x L) 7-1/4" x 5-3/8" x 12-1/2"
Note: This pump is equipped with an air switch. If the motor does not start upon plugging it in, the switch may be in the off position.
California Residents WARNING: Cancer and Reproductive Harm
| Complete Pump Type | Bath Pump |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | None |
| Suction Auxiliary Port | 3/8" barb (b) 1ea |
| Suction Style | Bottom |
| Suction Connection (Physical Dimension) | 2-7/16"od |
| Suction Connection Type | Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2" |
| Discharge Auxiliary Port | 3/8" barb (b) 1ea |
| Discharge Style | Center |
| Discharge Connection (Physical Dimension) | 2-7/16"od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2" |
| Motor Amperage/Wattage | 5.5A |
| Manufacturer | Waterway |
| Pump Model | Genesis |
| Volute Fastening Type | 4 Bolts |
