Product Description

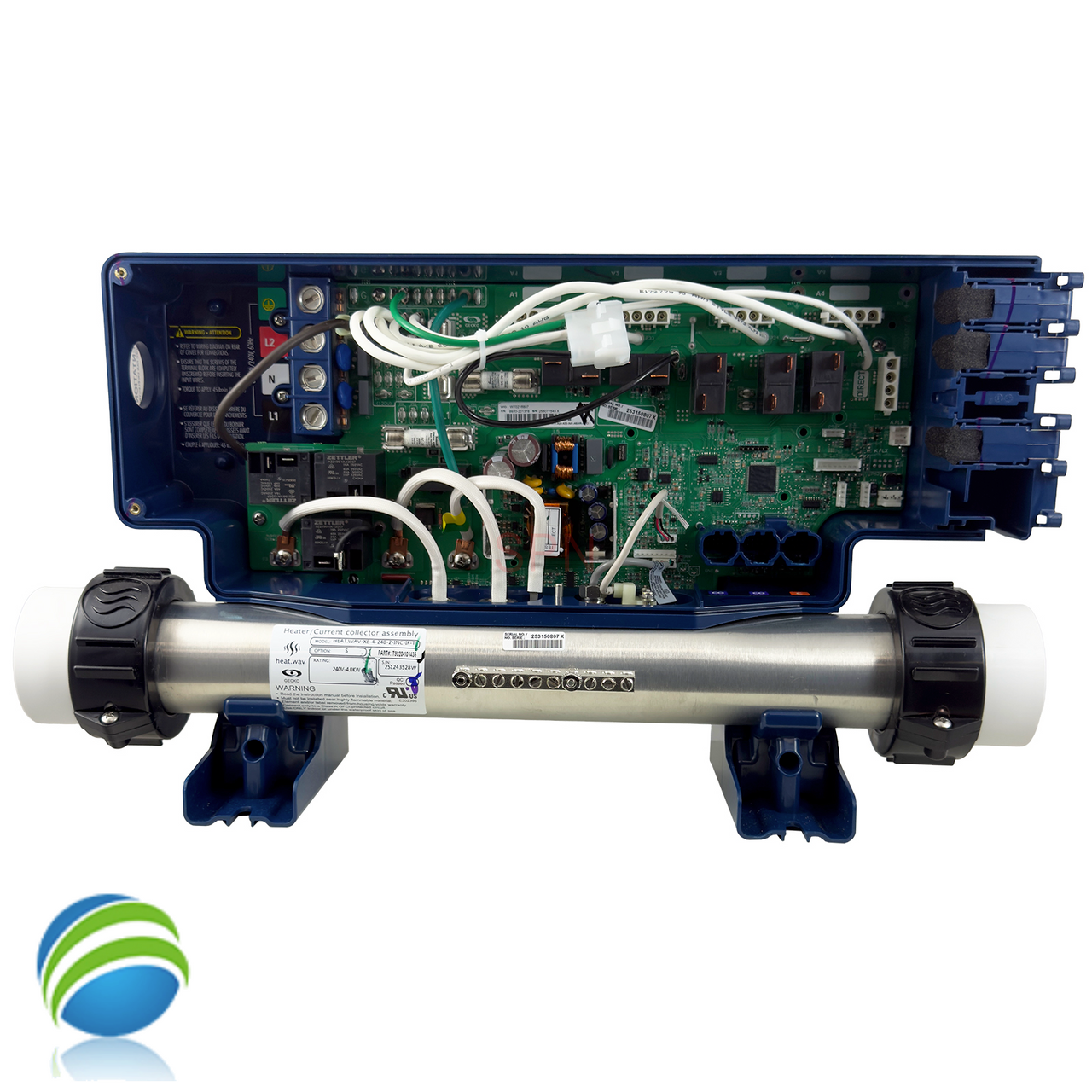

Gecko IN-YE-5 retro fit control system bundle used to replace outdated or discontinued control systems. This versatile system can support dual or single speed motors for pump # 1 and 2. Blower circuit (can also add a 3rd pump) is single speed. Also supports a circ pump, ozonator and 12 volt light. All circuits are convertible to 115 or 230 volt at the board and many different configurations can be set through the topside control making this a great retro-fit option.

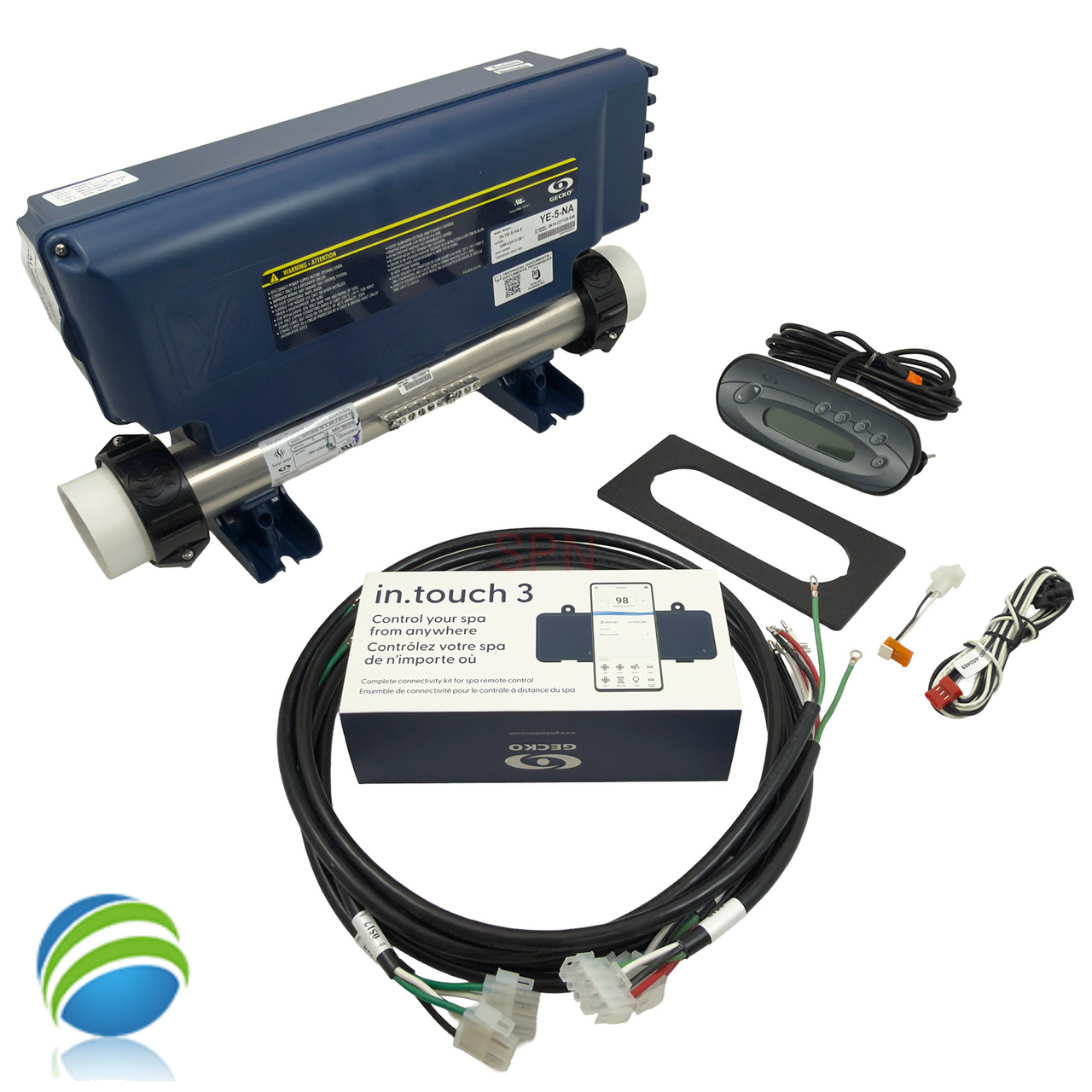

Includes the spa pack with 4.0 KW 15" heater, power cords, K450 topside control, adapter plate and new WiFi module to control your spa from a smartphone app.
The Gecko in.ye-5 Control System is a great alternative to the Gecko S-Class and SSPA Control Systems
Features:
- Supports topside, heater, and 5 configurable relays/circuits
- Solid-state water flow detection: No pressure switch to adjust
- IPX5 rated waterproof design
- Preloaded configuration allows fast and easy installation
- in.touch WiFi module
- 115v/230v Convertible
- Each output voltage can be configured to 115v or 230v
- Standard 15" 4.0 KW Heater w/ 2" unions (3" inside diameter), Fixed
- Oval k450 Topside Control (7-1/4" X 3" )w/ adapter plate for larger holes
- Includes power cables (2) Dual Speed Cords, (2) Single Speed Cords, Light Cord
Control Box Dimensions:
| Height | Width | Depth |
| 10-3/4" | 19-5/8" | 5" |
Please Note: This retro-fit kit may require minor adjustments to the voltage selection and the low level setting. These systems come out of the factory set for 220 Volts incoming power (electric line) and 240 Volt pump, blower and ozonator circuits, but can easily be converted to 115 volt. To convert the circuits simply move the white wires under each receptacle from the N box to the L2 box. N = 115/120 Volt and L2 = 220/230 Volts
SCAN THE QR CODE ON THE OUTSIDE ON THE CONTROL BOX FOR TECHNICAL DOCUMENTS THAT MATCH THE REVISION OF YOUR CONTROL SYSTEM.
Follow the illustrations on the circuit board. See below

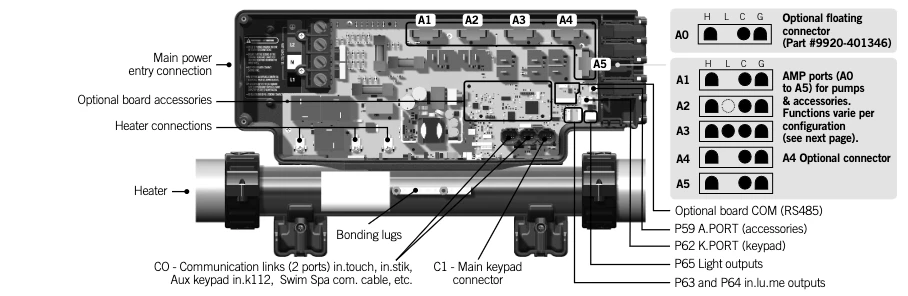

Location of receptacles:
| Manufacturer | Gecko |
| Model | in.ye-5 |
| Supply Voltage | 115v, 230v - 4 Wire |
| Heater Type | Fixed - Bottom - 15" Flange to Flange - 2" Union (3" female thread) |
| Heater Wattage | 1.0kW, 4.0kW |
| Topside Included |
In.K450 Digital Topside (7/1/8" x 2-7/8" ) w/ adapter plate for larger cutouts |
| Circ Pump Ready | Yes 115v/230v |
| Auxiliary Topside Ready | Yes |
| Fiber Optic | No |
| Accessory Ready | Yes |
| Wi-Fi Compatible | Yes |
| 50/60 HZ | 60Hz |
Here is some information on getting into the Low Level (LL) and Breaker (BR) Settings. The LL setting is set depending on what equipment you need to support:

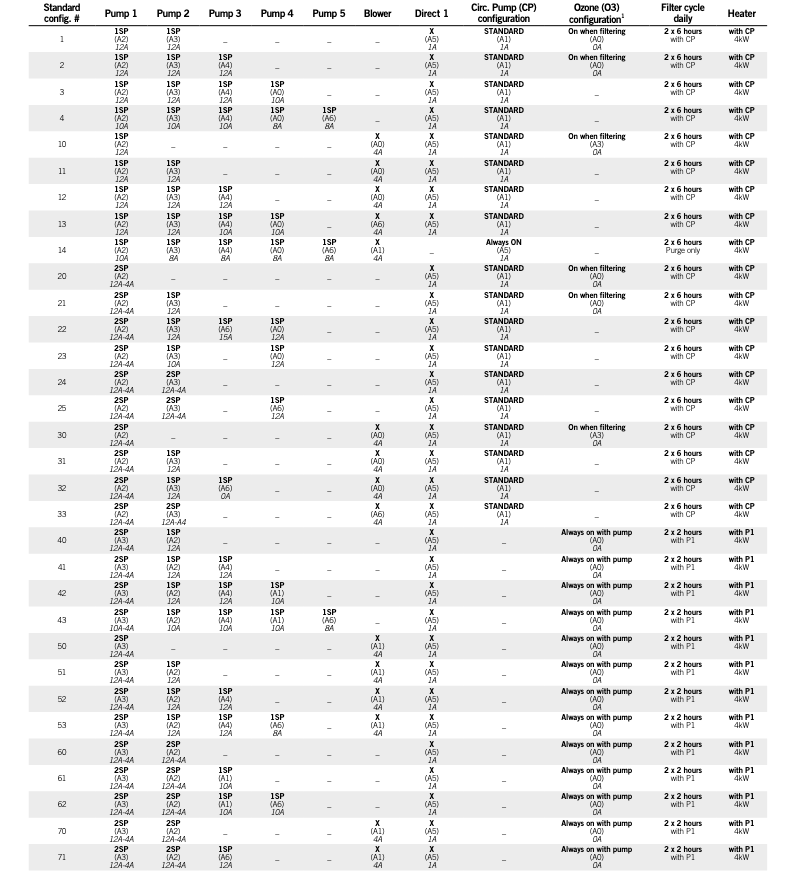

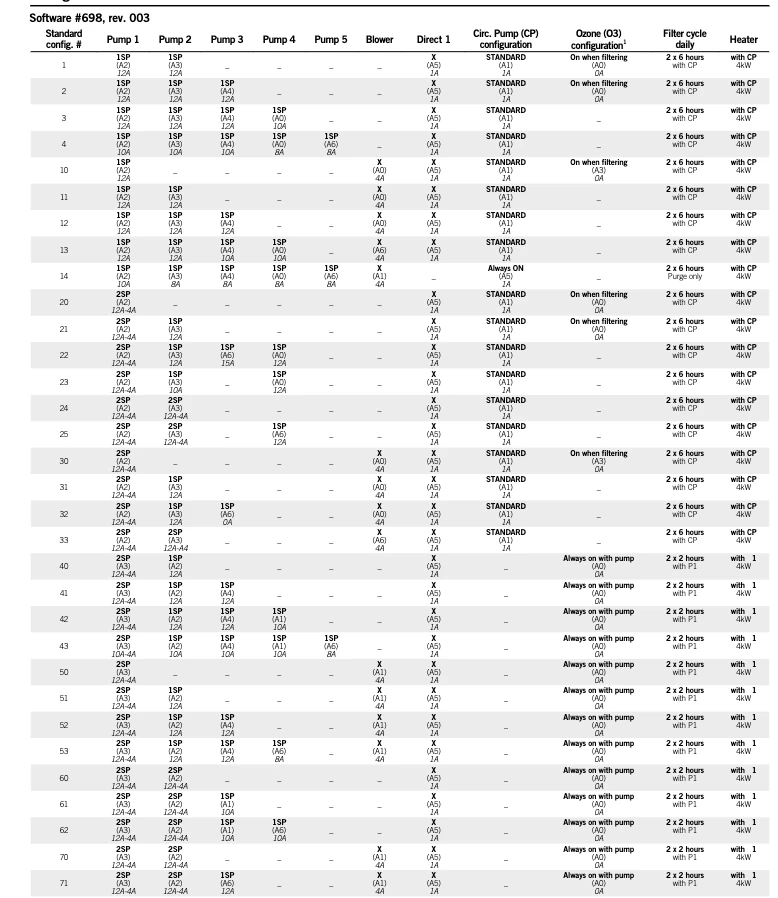

Here are the Low Level Settings for this system:
