This part is a Heater Complete with the Sensor set and built in pressure switch an exact generic replacement for the original Watkins No Fault 6000 76227 heater...
This is a generic replacement for the various versions of Watkins/Hot Spring/Tiger River/Hot Spot/Caldera OEM Heaters. Also for the Laing Tri-bend heater. This heater includes 2 sensors with new style 4-pin sensor plugs (2002+) and an auto-reset high limit as well as a built in pressure switch with cable, sensor adapters and tubing to help connect drain line if needed.

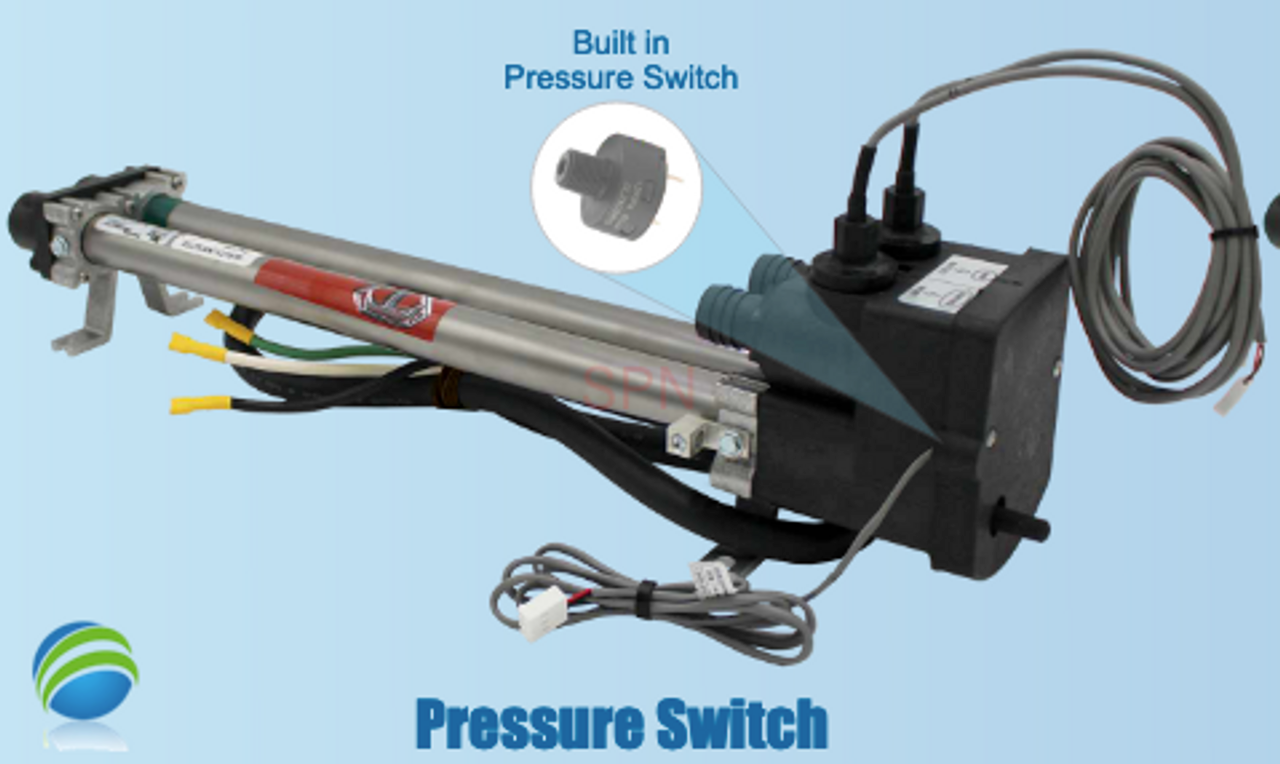

This universal replacement heater contains a pressure switch which is not used on all Watkins models. If your heater has a gray wire coming out of the back or side of it with a small white connector that plugs to your circuit board, then you have a pressure switch. If not see below for our versions without a pressure switch.
We have this heater in the lower 4.0 KW version here: Watkins Hotspring Tiger River, Heater with Sensors, Pressure Switch, Low Flow, No Fault 4000, 230v, 4.0kW, Generic
Note: If you are installing this heater in a pre-2002 tub you will use the included adapters to convert the new sensor plugs to the old style
| Heater Application | Watkins Generic Replacement |
| Kilowatts | 1.5kW, 6.0kW |
| Low Flow Heater Assy Style | Stainless Steel |
| Heater Inlet Size | 3/4" |
| Heater Inlet Type | Barb (b) |
| Heater Outlet Size | 3/4" |
| Heater Outlet Type |
Barb (b) |
