Product Description
Balboa Water Group

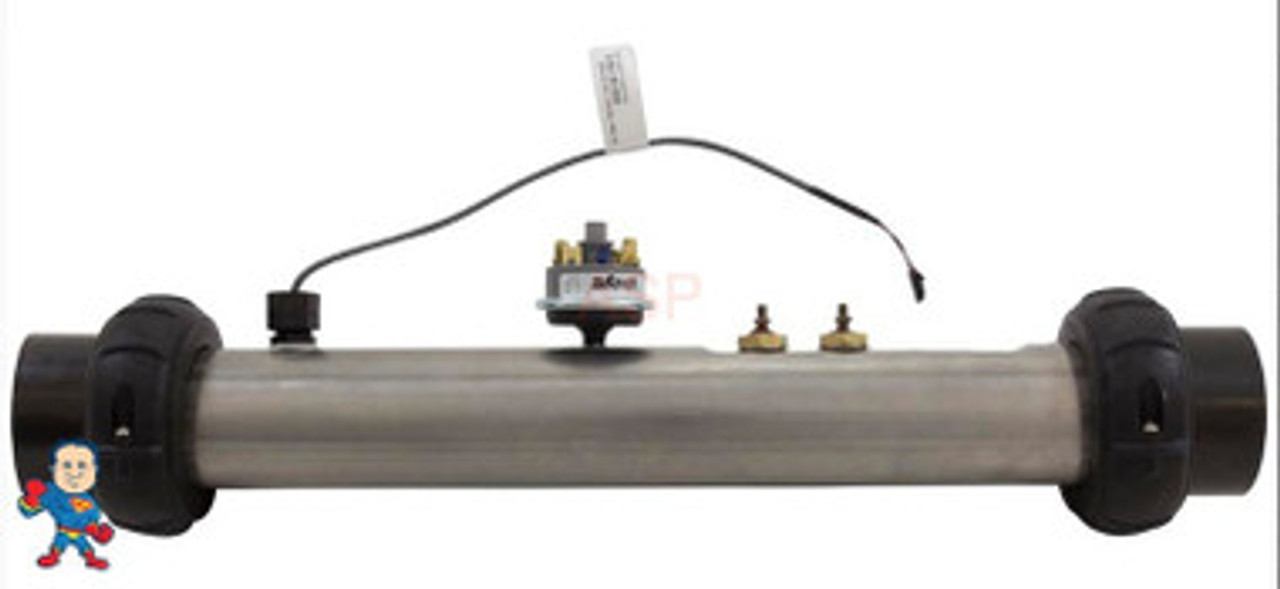

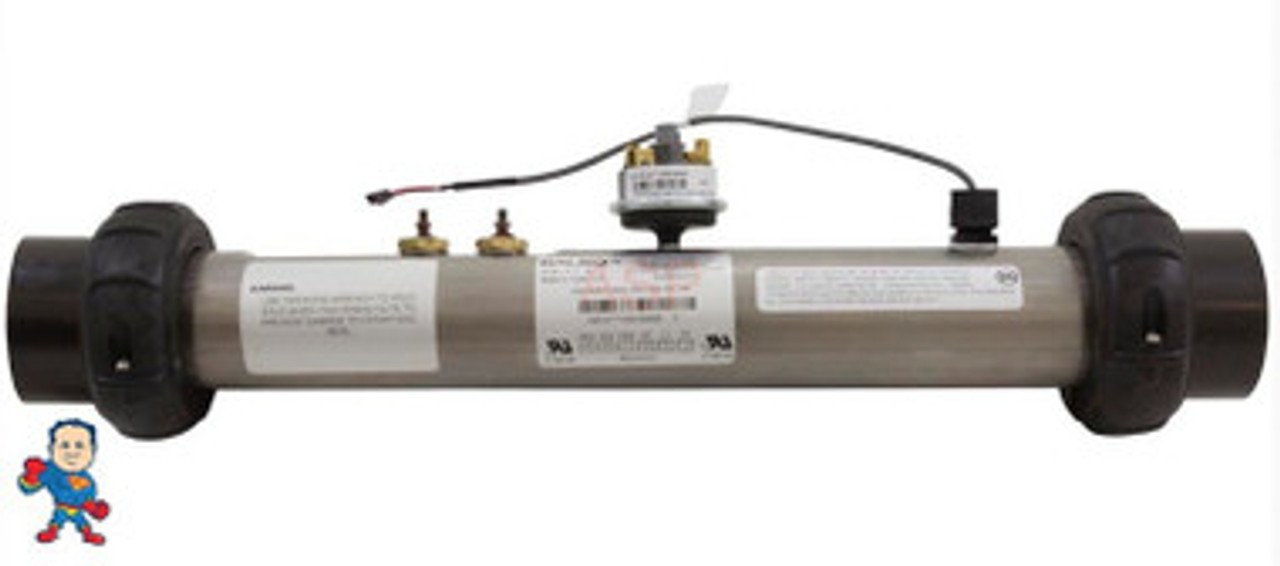

Stainless steel replacement heater assembly, 5.5kW/230v, 2" x 15". Includes a pressure switch, Hi Limit Sensor on the right side. Made for Balboa Value and Balboa LE control systems.
Housing Configuration Straight
Heater Length 15"
Lead End Terminal Location 4-1/4"
Threaded Tap Orientation 12 O`Clock
Threaded Tap Location 13" From Leading End, 8-1/4" From Leading End
Kilowatts 1.375kW, 5.5kW
Voltage 115v, 230v
Sensor Stud Orientation None
Mounting Stud Type None
Heater Size 2"
Heater Application Balboa Water Group
This heater is compatible with the following numbers..
- 58013 (Balboa)
- X300910 (Master Spas)
- NSBI58019
- 46-138-1010
- 58074
- This heater is compatible with Balboa control systems with the following numbers:
52222-02 52222-03 52222-04 52222-05 52244 52294 52294-01 52294-02
52294-03 52294-C 52294-C1 52294-C2 52294-C3 52294HC 5229-HC1 52294HC2
52294HC3 52315 52315-01 52315-02 52315-03 52315-C2 52315-C3 52363
52497 52497-01 52497-02 52497-03 52519 52519-01 52635 52636
54160 54160-01 54160-02 54160-C 54160-C1 54160-C2 54160-HC 54160HC1
54160HC2 54189 54189-01 54189-02
