Product Description
Applied Computer Controls

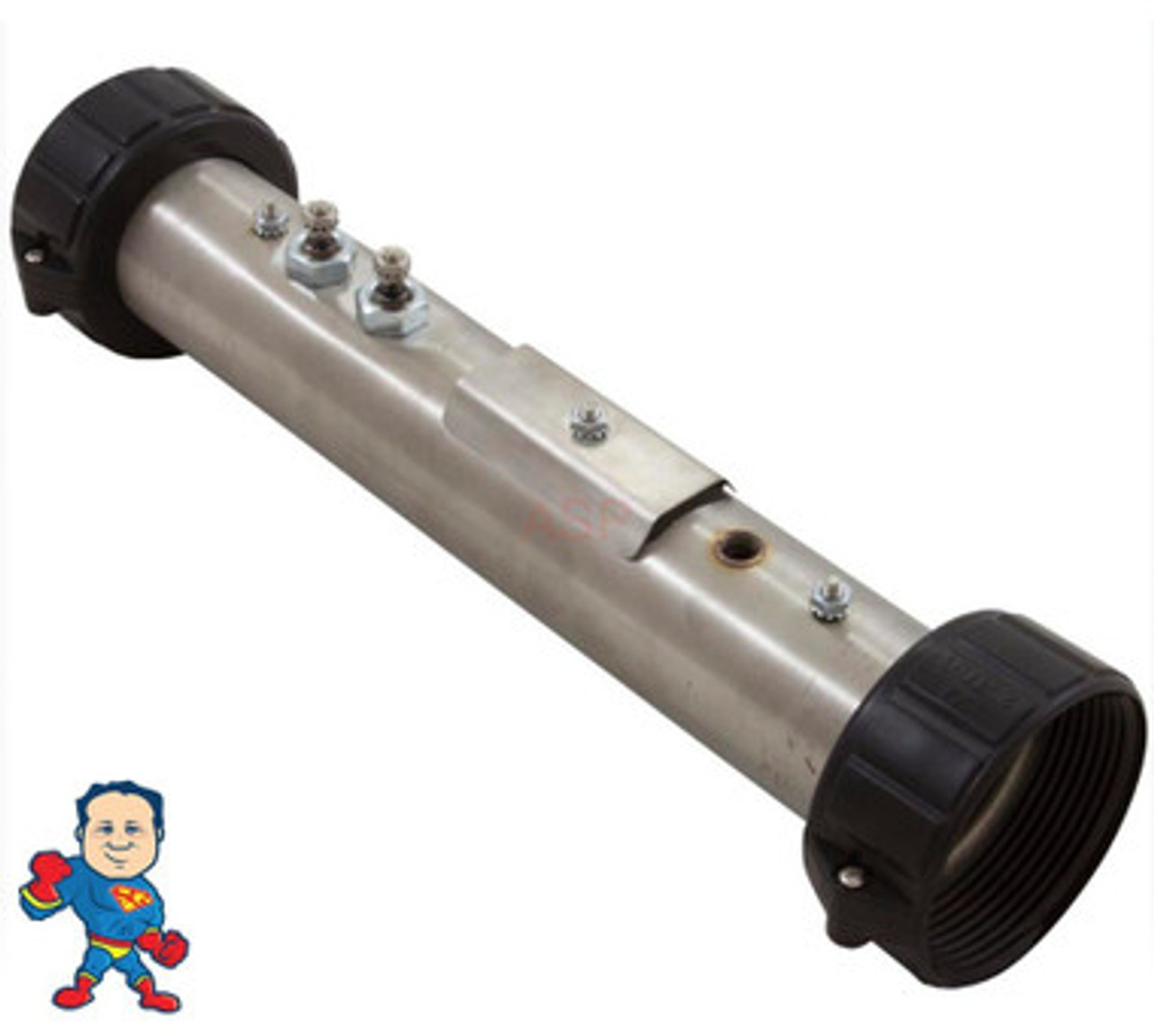

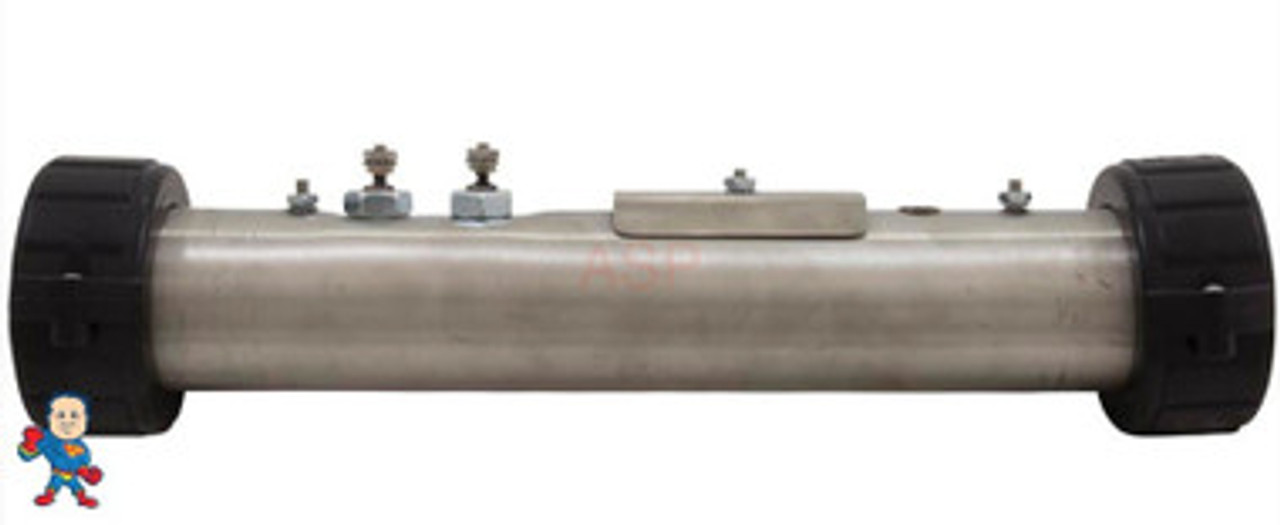

Stainless steel flo-thru replacement heater assembly. Measures 12-1/2" x 2" and has (2) mounting studs, pressure switch tap at 0 degrees from the heater terminals, external thermowell and a 5.5kW element. Commonly found on the ACC (Applied Computer Controls) STMD1000 series control system. Pressure switch not included
Housing Configuration Straight
Heater Length 12-1/2"
Lead End Terminal Location 3-1/4"
Threaded Tap Orientation 12 O`Clock
Threaded Tap Location 9-5/8" From Leading End
Kilowatts 1.375kW, 5.5kW
Voltage 115v, 230v
Sensor Stud Orientation 12 O`Clock
Mounting Stud Type Fixed
Heater Size 2"
Heater Application Applied Computer Controls
