Product Description

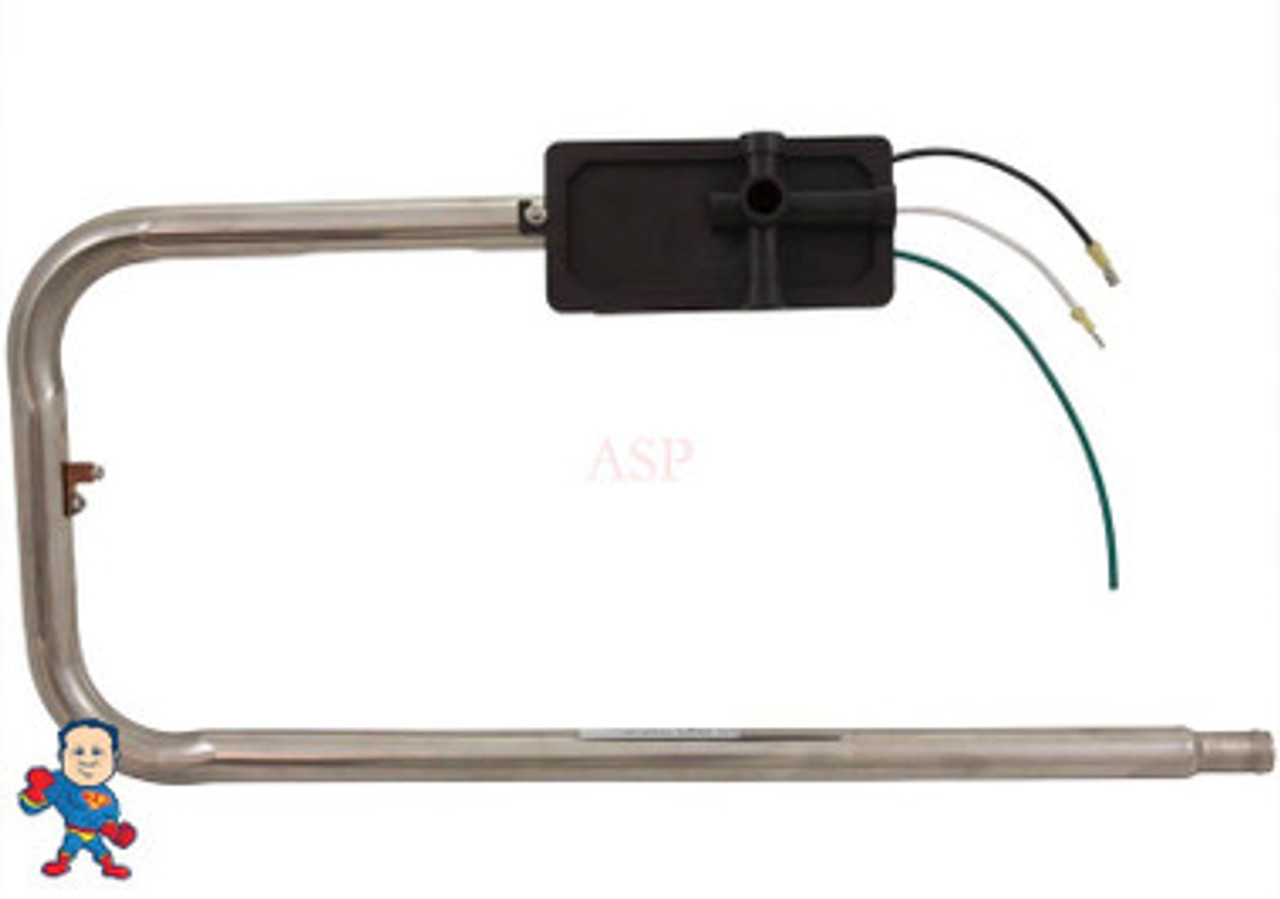

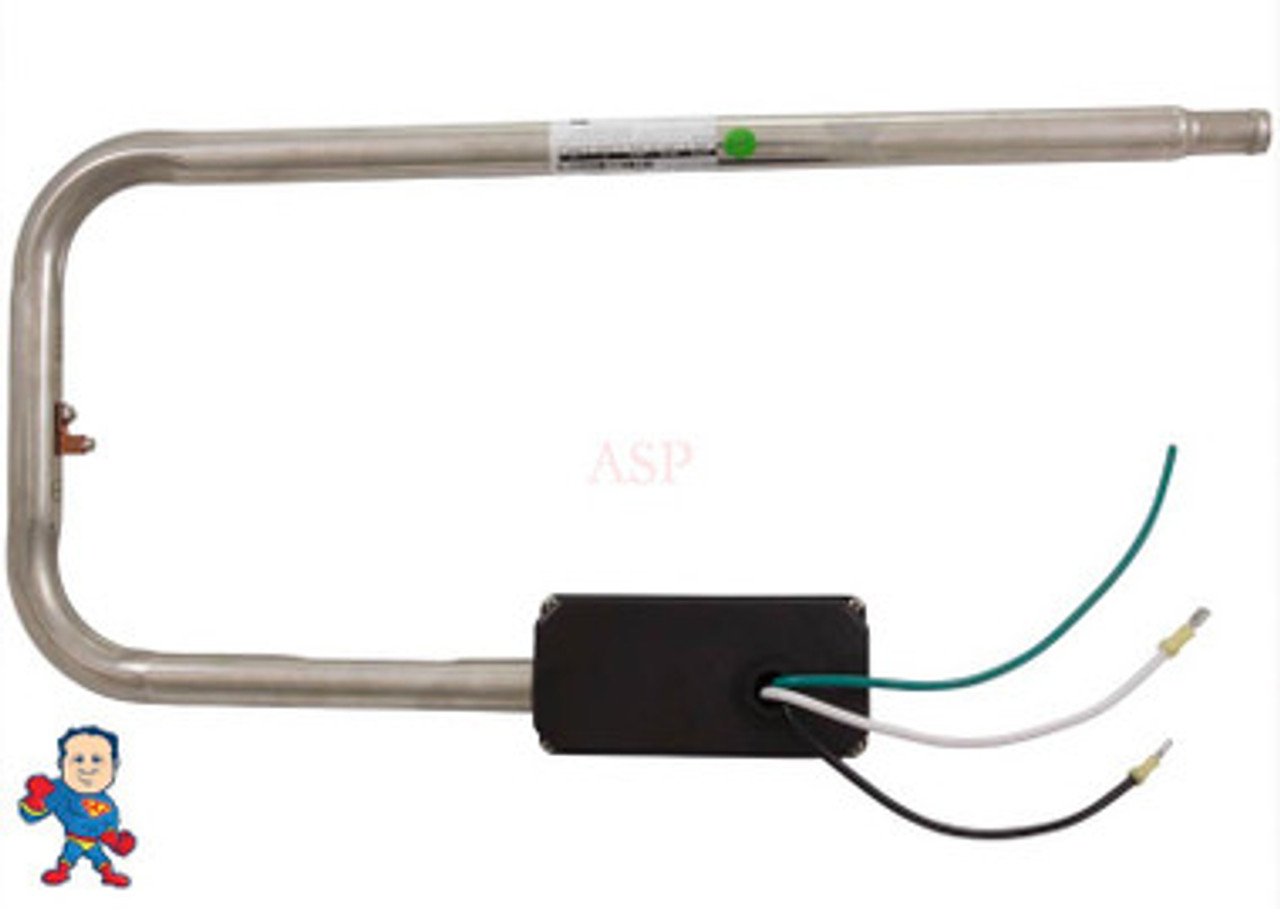

This part is a Complete Trombone Heater that is about 23" X 10" X 15" Squareback 3-Wire with Built in Thermal Cut-Out. Includes Titanium Heater Element and Hi-Limit Disk. This heater fits a lot of different brands of tubs and there is a list below of some of them.. Note that the original heater has been discontinued as the manufacturer went out of business so some plumbing adjustments may be needed on some installations..
Replaces Jacuzzi/Sundance J-300 Heater 6500-402 LED Models 2002+ (Spade Connects) & Jacuzzi/Sundance J-300 Heater 6500-403 LCD Models 2002-2006 (1/4" Fem Tab).
Used in Sundance/Jacuzzi Spa Models:
2011+ Constance and Victoria
2008+ 680 Burlington, Hartford and Hawthorne with Circ pump
2007+ 680 Hartform and Hawthorne with Circ Pump
2007+ 780 Hamilton, Chelsee, Certa and Camden
2003-06 Palermo, Bahia and Cayman
2011+ All J-LX/J-LXL
2002-06 J-350, J-330
2004+ J-335, J-345, J-355
2005-07 J-325
2007+ J-375, J-365, J-270, J-280
For the 4.0kw version click this link:Heater, Low Flow, Trombone, Jacuzzi, Replacement, 230v, 4.0kW, Generic
Replacement Option For:
AI #2-00-0029 / MFG #C3549-1
AI #2-00-0070 / MFG #C3236-1A
MFG #6698
MFG #66980
MFG #6500-403
MFG #C3229-1A
MFG #C3229-2A
MFG #1-HA-E24055LS
MFG #SEH-5500-NH-6698
Aber-Pacific
Artesian
Atera
Dimension One
Dynasty
HydroQuip
LA Spas
Santa Barbara
Note: Plumbing Adjustments May Be Required for Replacements Due to Original Heater Not Available
