Product Description
Upgrade your spa with the HydroQuip Water Pro Retro-Fit Control System featuring a 5.5 kW, 15" slide heater. Powered by the reliable Balboa BP7 platform, this innovative system is designed to make spa retrofits faster and easier. The versatile slide heater can move up or down along the back of the control box or be detached entirely to accommodate a wide range of plumbing configurations. For even greater flexibility, the heater can also be mounted remotely up to 3 feet away from the control pack.
The heater unions are considered 2" plumbing connections and measure 3" on the inside, ensuring compatibility with many existing spa setups.
This next-generation WaterPro BP7 control system includes a powerful 5.5 kW slide heater and the sleek TP600 oval 6-button topside control. The TP600 features a large, easy-to-read backlit LCD screen with simple, intuitive menus that make spa operation effortless.
Built for performance, flexibility, and easy installation, the HydroQuip Water Pro BP7 retro-fit control system is an ideal solution for modernizing older spa control packs while maintaining dependable spa operation.
Kit includes: The Control System, Topside Control Panel, Topside Adapter Plate, 12 Volt Light Cord
For the WiFi module click here: Balboa, Wifi Module Kit, Platinum BP Series
BP7 System Specifications:
- 230 volts 60HZ only, cannot run on 120 volts
- 5.5KW slide heater
- Can operate: Pump 1 - 1 or 2 speeds (Default setting 2 speed, can be changed), Pump 2 - 1 or 2 speed, Dedicated circulation pump (min 20 GPM and min 1.5" plumbing required), Blower or Pump 3 - single speed, Ozonator, 12 Volt Light, Hot Plug (stereo converter and accessories)
- M7 Patented Sensor heater technology
- Wifi: Compatible with Balboa ControlMySpa WiFi (Sold Separately)
- Balboa Bluetooth Audio compatible, module 59089 sold separately
- Spa light control 1 Amp max
- 50 Amp GFCI required if running more than 1 pump
- Balboa Spa pack BP7 (5.5KW Heater)

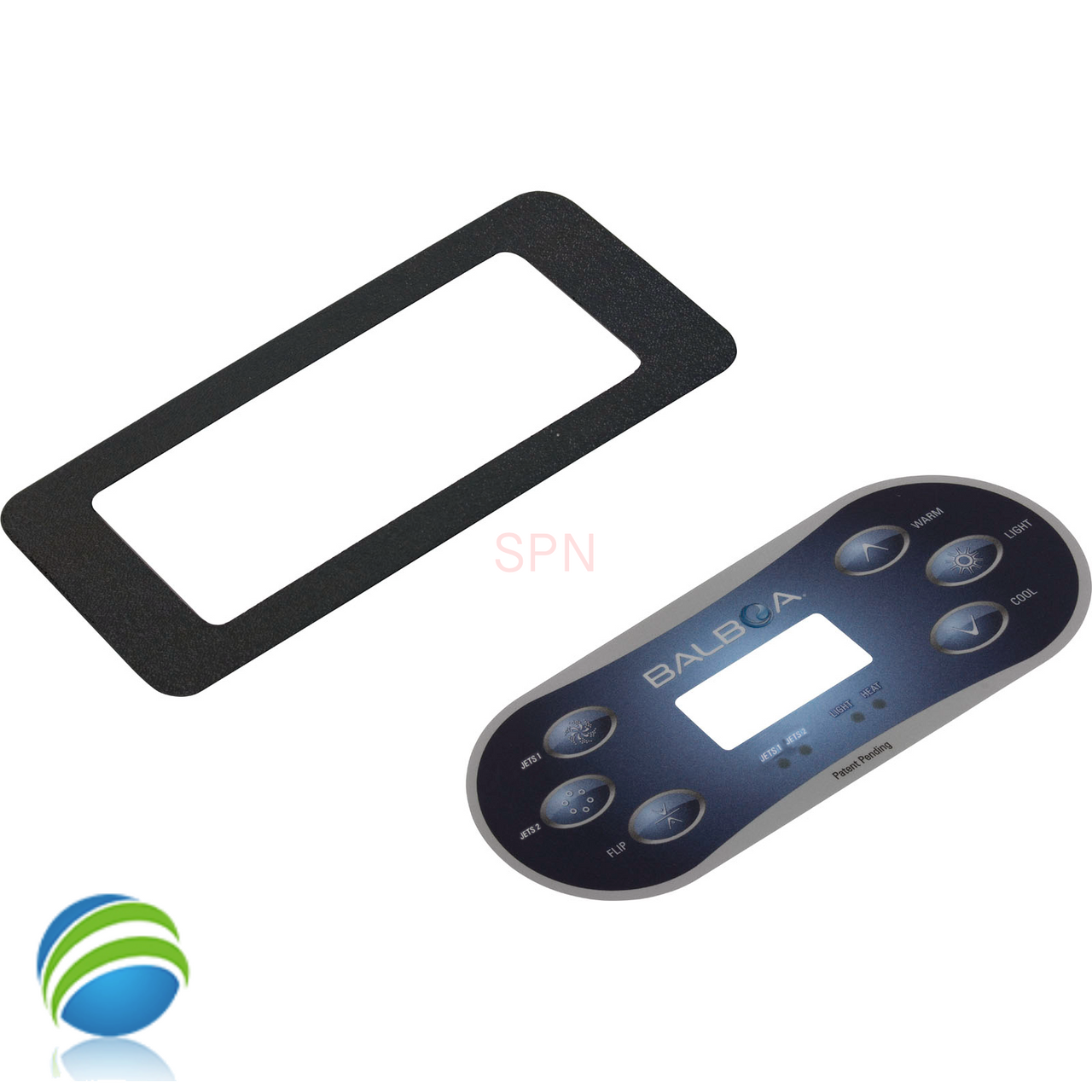

- TP600 topside control Face size 7-1/8" x 3-1/2"
- Adapter plate (Bezel) 9" x 4"
- Cord for light, 10' long
- Balboa BP7 programming manual
Control Box Dimensions
| Height | Width | Depth |
| 10-9/16" | 12-1/4" | 4-1/2" |
Important: This is a retrofit bundle that can replace other control systems and installation by a qualified person is recommended.
