Product Description

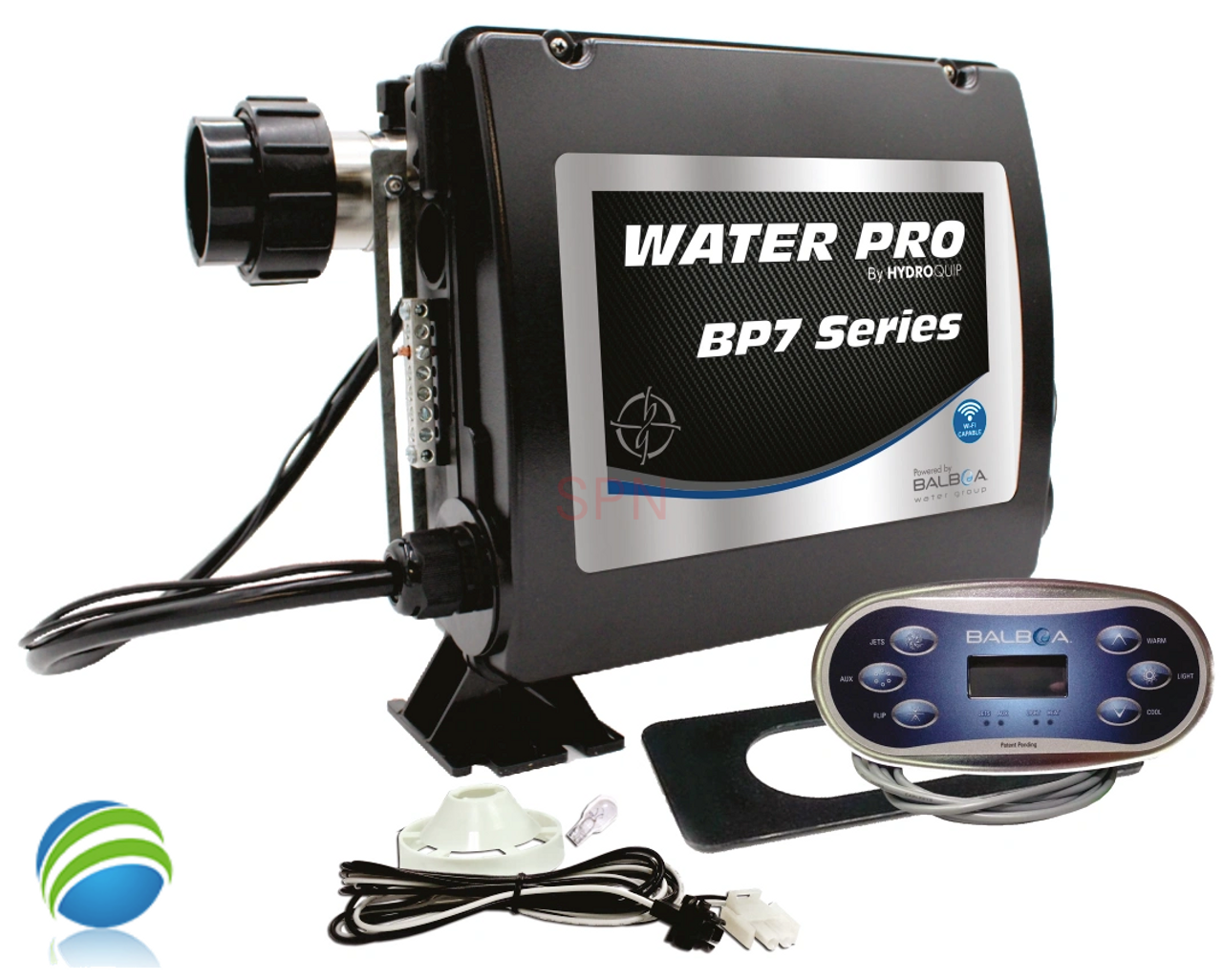

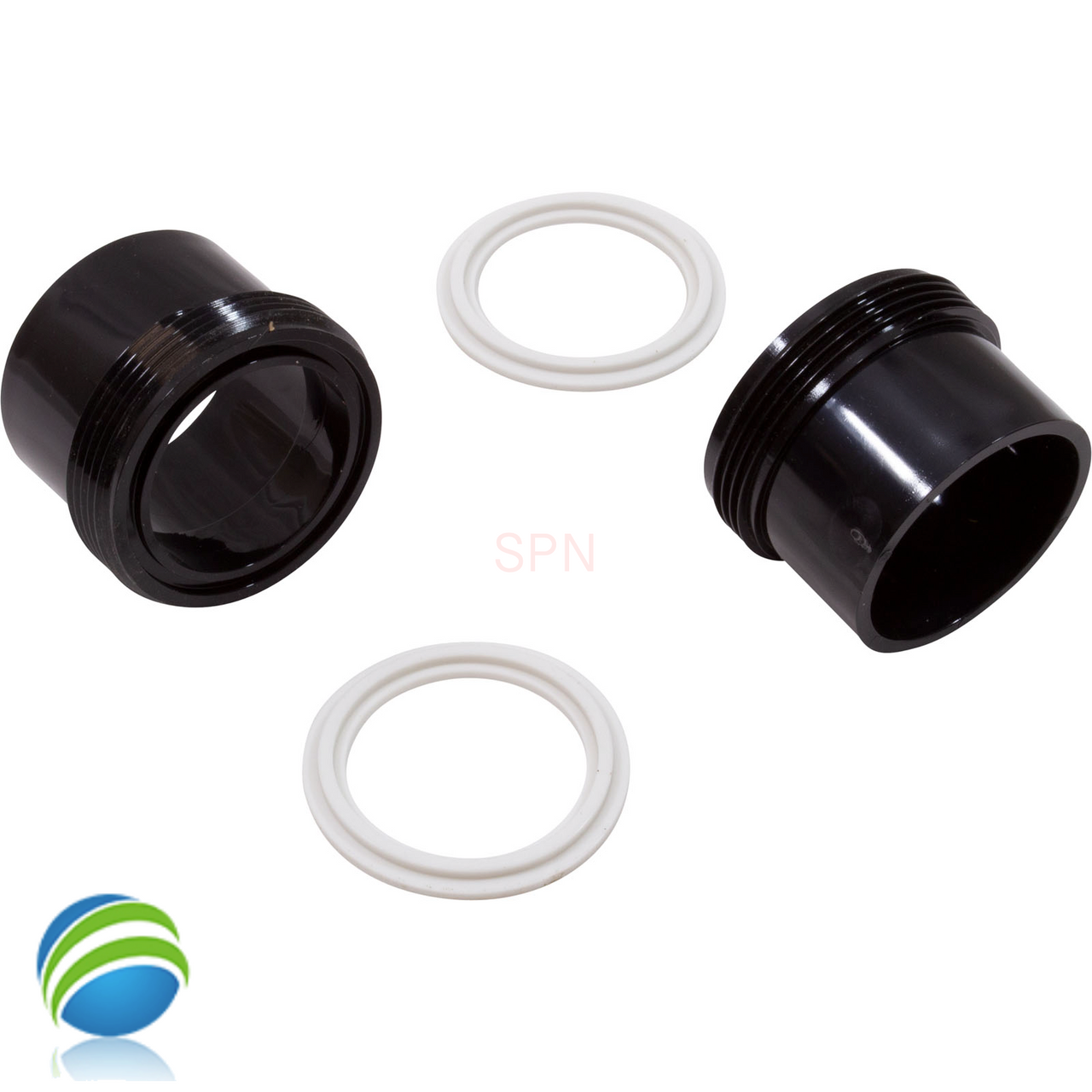

HydroQuip Water Pro retro-fit control system with 5.5 KW, 15" slide heater. This innovative Balboa BP7 powered system has a heater that can slide up and down the back of the box or can be detached to meet various plumbing setups making retro-fits a breeze. The unions on this slide heater are considered 2" and measure 3" on the inside. The heater can also be mounted remotely from the control, up to 3 feet away.

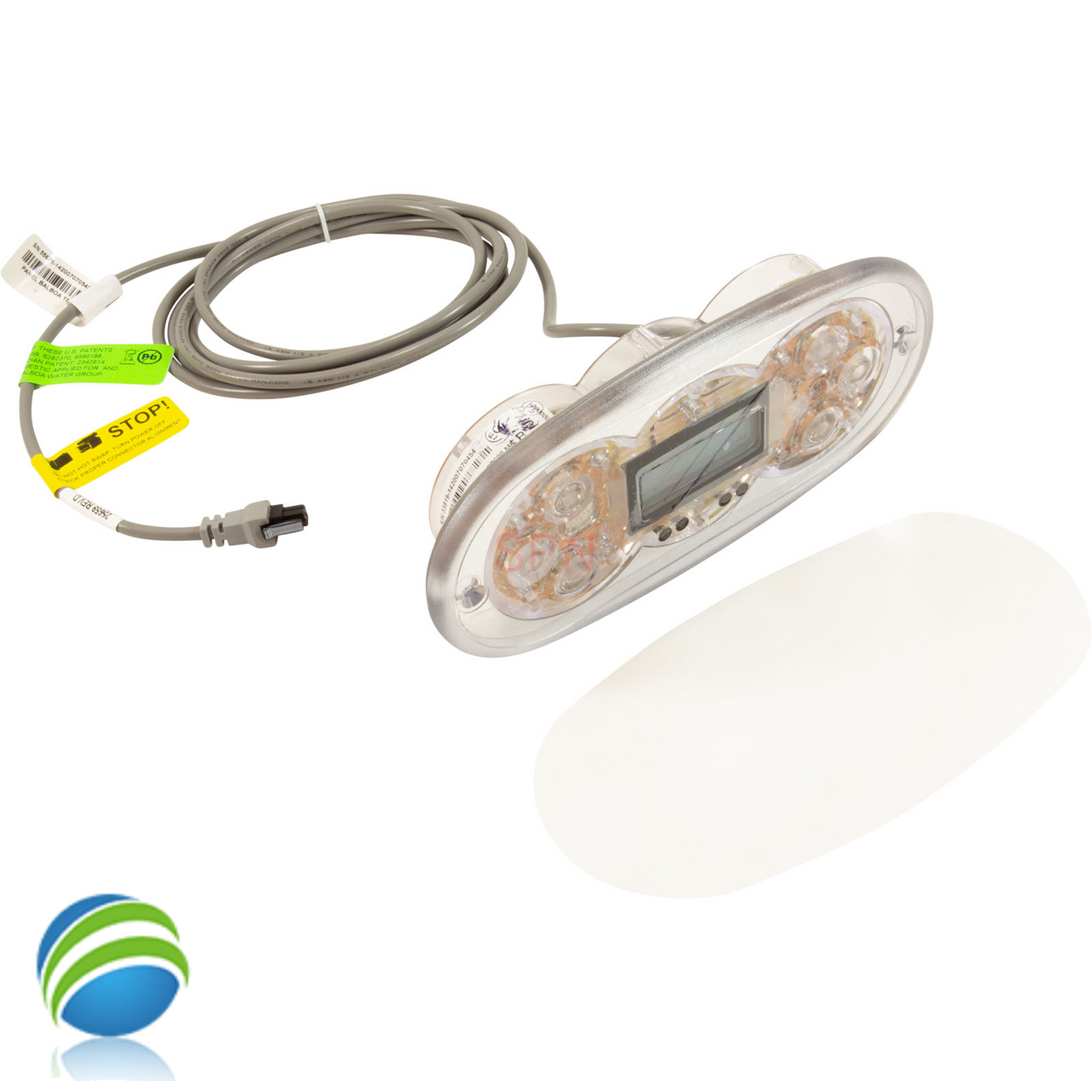

This next generation feature rich WaterPro BP7 based control system comes with a 5.5KW slide heater bundled with the sleek oval shaped 6 button TP600 topside control with large easy to read backlit LCD screen and simple to follow menus.

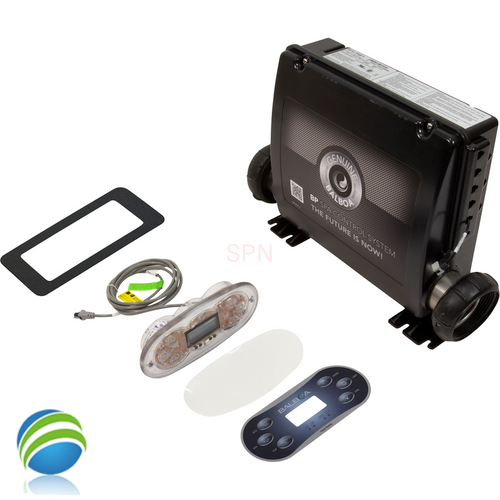

Kit includes: The Control System, Topside Control Panel, Topside Adapter Plate, 12 Volt Light Cord
For the WiFi module click here: Balboa, Wifi Module Kit, Platinum BP Series
BP7 System Specifications:
- 230 volts 60HZ only, cannot run on 120 volts
- 5.5KW slide heater
- Can operate: Pump 1 - 1 or 2 speeds (Default setting 2 speed, can be changed), Pump 2 - 1 or 2 speed, Dedicated circulation pump (min 20 GPM and min 1.5" plumbing required), Blower or Pump 3 - single speed, Ozonator, 12 Volt Light, Hot Plug (stereo converter and accessories)
- M7 Patented Sensor heater technology
- Wifi: Compatible with Balboa ControlMySpa WiFi (Sold Separately)
- Balboa Bluetooth Audio compatible, module 59089 sold separately
- Spa light control 1 Amp max
- 50 Amp GFCI required if running more than 1 pump
- Balboa Spa pack BP7 (5.5KW Heater)
- TP600 topside control Face size 7-1/8" x 3-1/2"

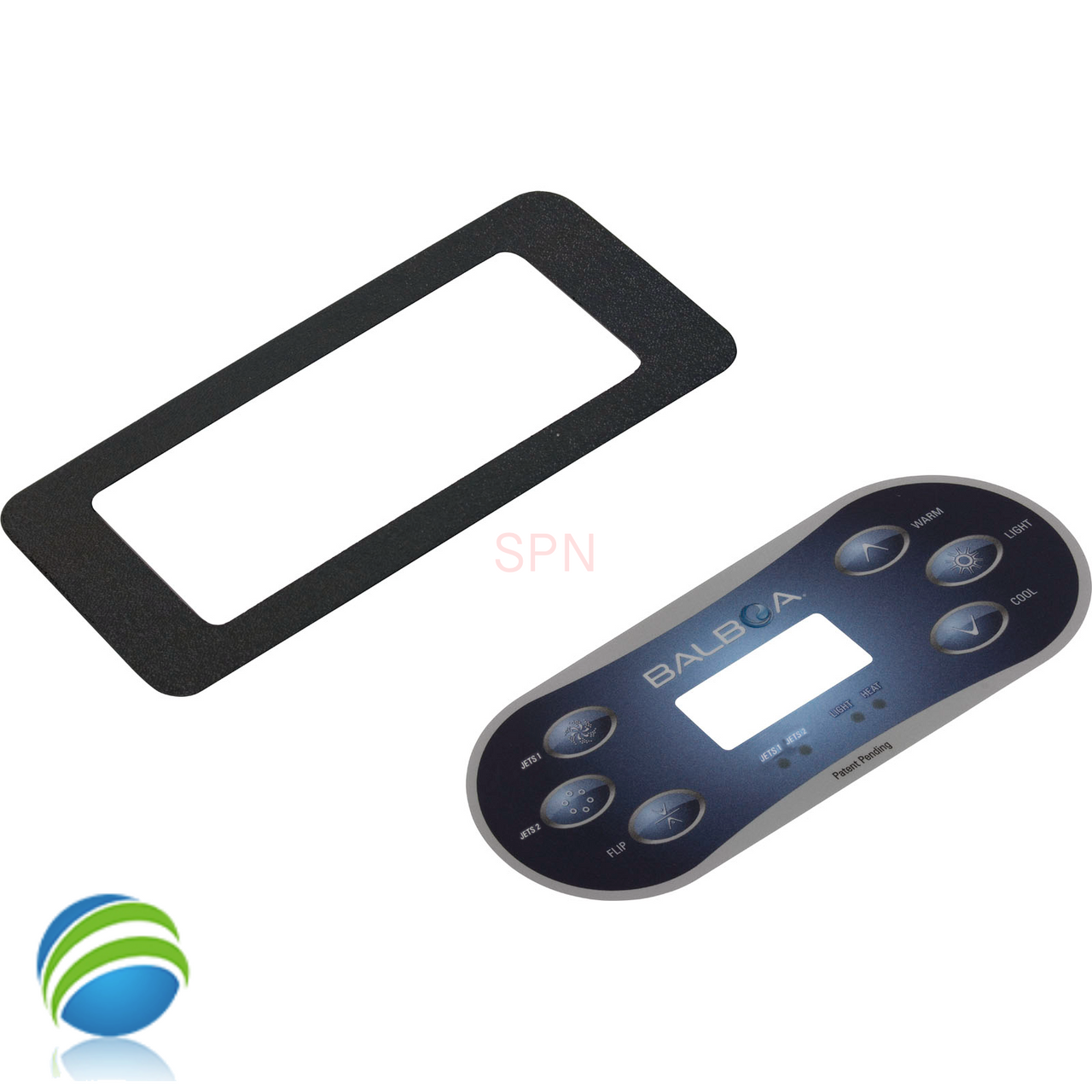

- Adapter plate (Bezel) 9" x 4"
- Cord for light, 10' long
- Balboa BP7 programming manual
Control Box Dimensions
| Height | Width | Depth |
| 10-9/16" | 12-1/4" | 4-1/2" |
Important: This is a retrofit bundle that can replace other control systems and installation by a qualified person is recommended.
