Product Description

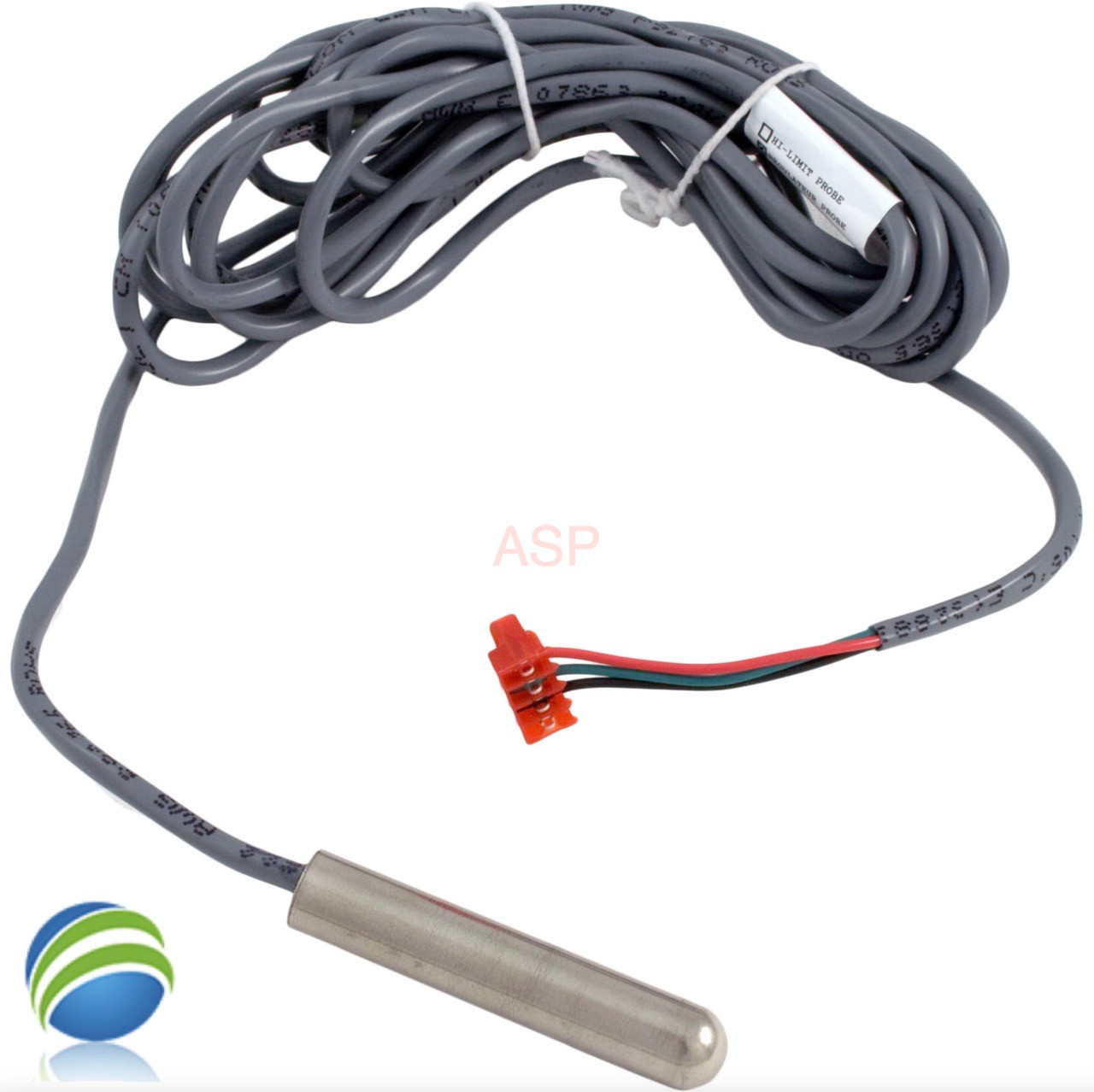

HydroQuip temperature sensor used on the CS6100, CS7100, CS9400 and CS9600 VDS models manufactured prior to 5/2003. If your current sensor has any letter aside from K after the part number 34-0203, then this is not the correct sensor for your unit. This sensor has a 3/8" diameter bulb with a 10 foot cable and 4 pin 3 wire connector. Current versions may have a different wire layout or color coding, but are 100% compatible.
Symptoms of a temp sensor failure would be an inaccurate temperature display. If your panel displays 85 but the water is more like 104 then the sensor is bad.
| Sensor Application | Spa Control |
| Sensor Type | Temperature |
| Application | HydroQuip |
| Model | 4 Pin Prior 5/03 |
| Connector Type | 4 pin |
| Sensor Diameter | 3/8" |
| Wire Count | 3 wire |
| Wire Length | 10ft |
Product Videos
Custom Field
Short Description Product Code: 34-0203
