Product Description

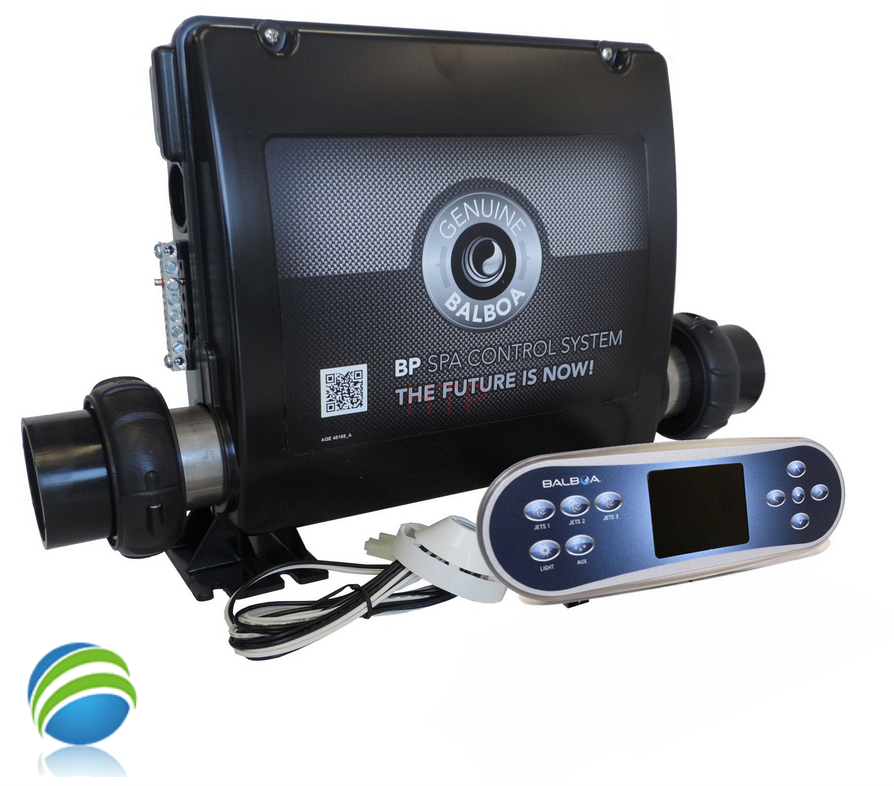

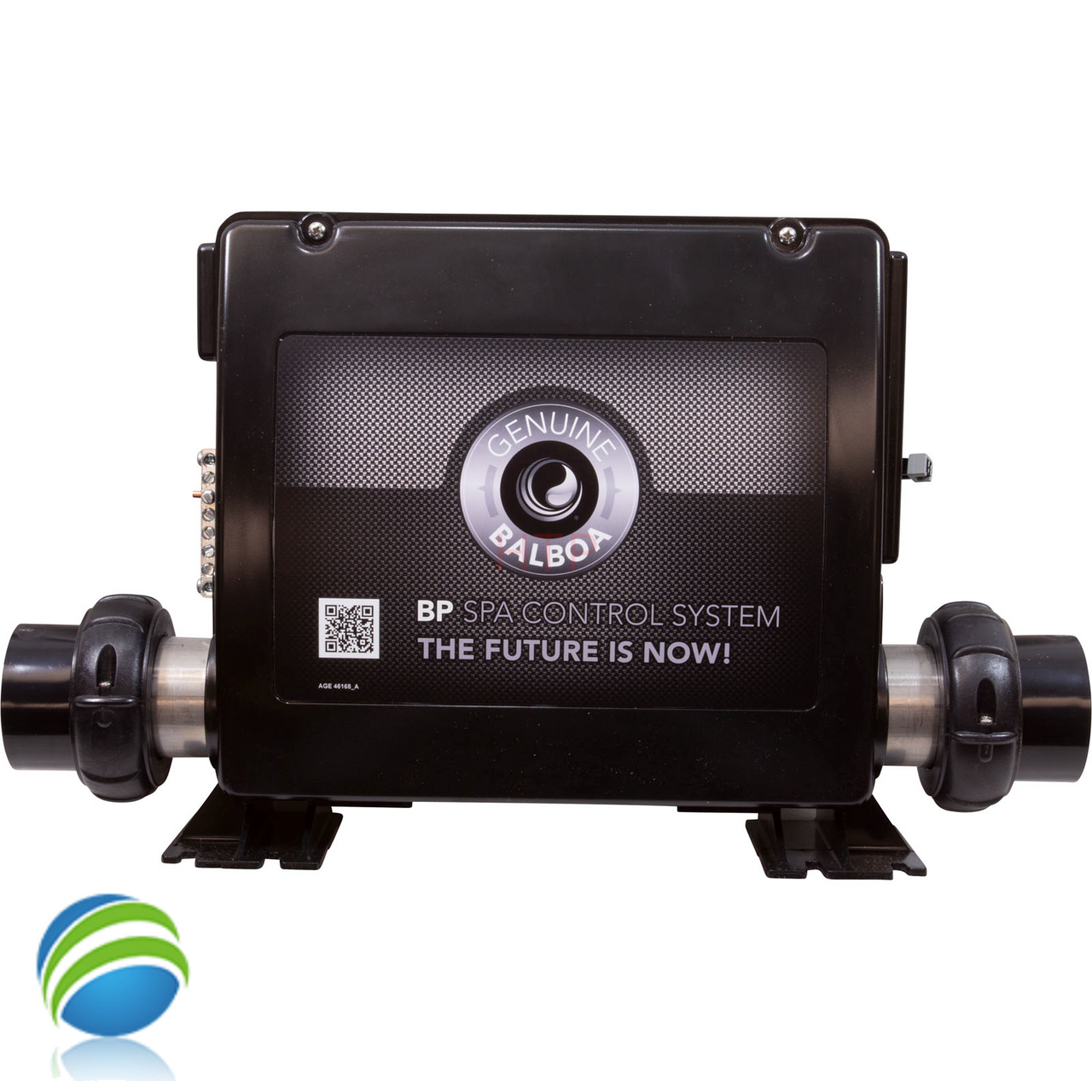

Enhance your spa with the HydroQuip WaterPro BP2000 Retro-Fit Control System paired with the TP700 Color LCD Topside Control, powered by trusted Balboa technology. This high-performance BP2000 spa control system offers advanced functionality and flexible configuration, making it a great solution for replacing older or outdated spa control packs.
The feature-rich BP2000 platform supports multiple pumps and provides extensive programmable settings for filtration cycles, purge functions, and overall system management, giving spa owners improved control and efficiency. Built with Balboa’s M8 sensor technology, the system monitors both water temperature and water flow without requiring separate flow switches. These sensors also allow the control pack to be installed on either the suction or discharge side of the pump, offering greater installation flexibility. If your spa already uses AMP power cords with a Balboa system, you may be able to reuse your existing cords. If not, compatible cord options are available in the drop-down selection boxes.
Out of the box, the HydroQuip WaterPro BP2000 system supports up to three pumps, along with an air blower, ozonator, 12-volt spa light, and an optional circulation pump. Support for Pump 4 can be added using a splitter connected to the Pump #2 circuit, provided that circuit is configured as a two-speed pump. When using this configuration, Pump 2 and Pump 4 cannot operate at the same time.

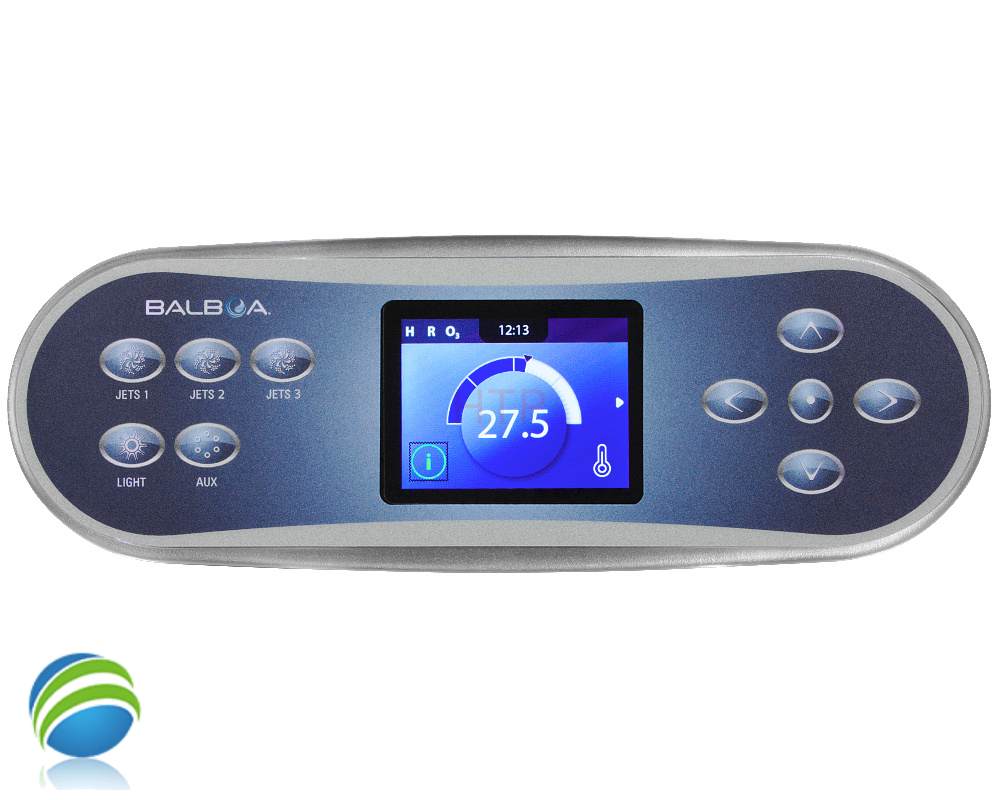

This system also includes the sleek TP700 Color LCD topside control panel, which features a full-color display and easy-to-navigate menus for simple spa operation. The TP700 topside control measures 10" x 3-1/2" overall and requires a cutout size of 8.85" x 2.36" for proper installation.
If you would like to add WiFi so you control your tub via an Android or Apple app click here: Balboa, Wifi Module Kit, Platinum BP Series
If you need a splitter to hook up a 4th pump to the pump 2 circuit click here: Balboa P2+4 Pump Y Splitter Cable, AMP
| Number Of Appliances | 4 |
| Manufacturer | Balboa Water Group |
| Model | BP2000 |
| Supply Voltage | 230v - 3 Wire, 230v - 4 Wire |
| Heater Type | Fixed - Bottom |
| Heater Wattage | 5.5 KW, 15", 2" unions (3" thread ID) |
| Topside Included | TP700 |
| Circ Pump Ready | Optional 115v/230v |
| Auxiliary Topside Ready | Yes |
| Fiber Optic | No |
| Accessory Ready | Yes |
| Wi-Fi Compatible | Yes |
| 50/60 HZ | 50Hz, 60Hz |
