Product Description
This part is an Aqua-Flo XP3 Pump 4.0HP Impeller exclusively for an Aqua-Flo XP3 pump which has 2 1/2" inlet and outlet which measures about 3 9/16" across the threads...I have found this 4.0HP pump impeller to be on a 14 amp motor...
Click here for the Seal Kit only
Click here for a Seal and (1) Bearing Kit
Click Here for an additional bearing if needed

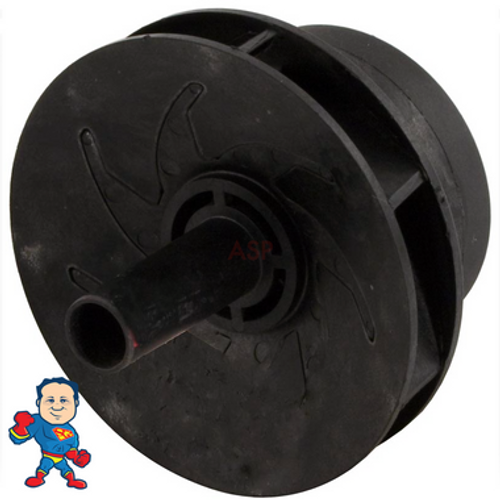

Closed face impeller made for the AquaFlo XP3 spa pump by AquaFlo. Rated at 4.0hp, it is used in an XP3 wet end, and must be installed on a 4.0hp (or greater) thru bolt motor.
Impeller Type Closed Face
Impeller Diameter OD 3-5/8"
Vane Width ID 13/16"
Eye Diameter OD 2-5/8"
Eye Length 7/16"
Impeller Width OD 1"
Seal Seat Depth 1/8"
Shaft Length 1-5/16"
Shaft Diameter OD 5/8"
Seal Seat Diameter OD 1-1/4"
Manufacturer AquaFlo/Gecko
Pump Application XP3
