Impeller, D, Waterway, HiFlo, Side Discharge, 1.5hp, Hi-Flo, Hi-Flow

Product Description

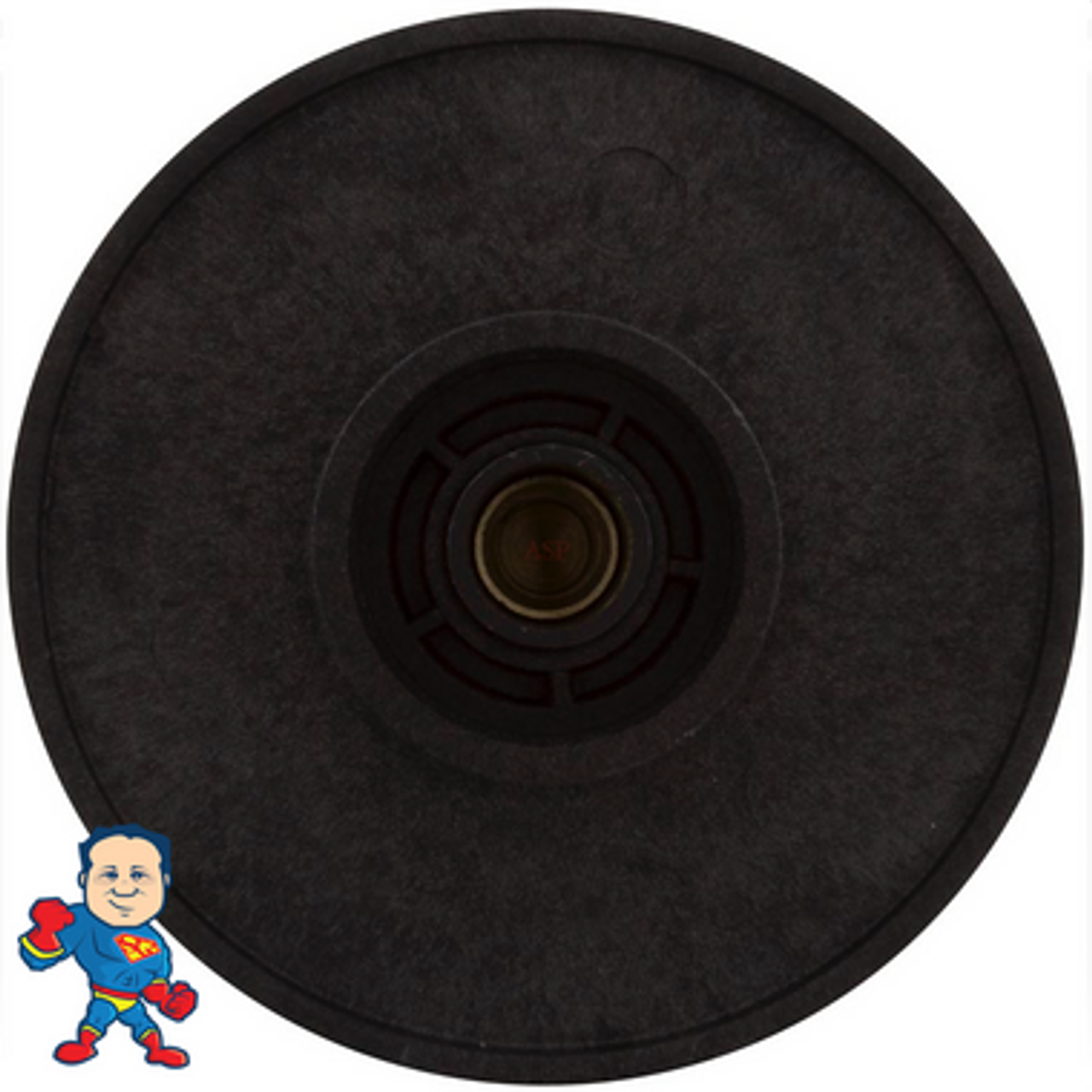

<p><span>Waterway Hi-Flo Pump Impeller</span><br /><br /><span>Closed face impeller made for the HiFlo side discharge pump by Waterway Plastics. Rated at 1.5hp, it is used in a Waterway Hi-Flo pump wet end, and must be installed on a 1.5hp (or greater) thru bolt motor.&nbsp;</span><strong><a href="https://spapartsnet.com/seal-1000-silicon-spa-hot-tub-pump-wet-end-seal-part-waterway-pumps-how-to-video/">Shaft seal sold separately</a></strong></p>
<p><strong>For Wear Ring Click here: <a href="https://spapartsnet.com/wear-ring-waterway-hi-flo-1-13-16-inside-diameter/">Wear Ring, Waterway, Hi-Flo, 1 13/16", Inside Diameter</a></strong></p>
<table class="margintop4">
<tbody>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl0_labelAttributeName">Impeller Type</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl0_labelAttributeValue">Closed Face</span></td>
</tr>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl1_labelAttributeName">Impeller Diameter OD</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl1_labelAttributeValue">3-11/16"</span></td>
</tr>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl2_labelAttributeName">Vane Width ID</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl2_labelAttributeValue">7/16"</span></td>
</tr>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl3_labelAttributeName">Eye Diameter OD</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl3_labelAttributeValue">1-13/16"</span></td>
</tr>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl4_labelAttributeName">Eye Length</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl4_labelAttributeValue">1"</span></td>
</tr>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl5_labelAttributeName">Impeller Width OD</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl5_labelAttributeValue">13/16"</span></td>
</tr>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl6_labelAttributeName">Seal Seat Depth</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl6_labelAttributeValue">1/2"</span></td>
</tr>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl7_labelAttributeName">Shaft Length</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl7_labelAttributeValue">15/16"</span></td>
</tr>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl8_labelAttributeName">Shaft Diameter OD</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl8_labelAttributeValue">5/8"</span></td>
</tr>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl9_labelAttributeName">Seal Seat Diameter OD</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl9_labelAttributeValue">1-9/16"</span></td>
</tr>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl10_labelAttributeName">Manufacturer</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl10_labelAttributeValue">Waterway</span></td>
</tr>
<tr>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl11_labelAttributeName">Pump Application</span></td>
<td><span id="_ctl0__ctl0_listviewSpecificationAttributes_ctrl11_labelAttributeValue">Hi-Flo "D"</span></td>
</tr>
</tbody>
</table>
