Product Description
This 1.5HP Impeller fits a Jacuzzi Piranha 4 Stand Wet End Fixed Bracket Motor only and would be found on a motor that is about 15.6-16.0 Amps on a 115V motor or 7.8-9.0 Amps on a 230V motor..... It can be found under the Name Thera-Max or Thera-Flo on Sundance tubs and is also on Jacuzzi Premium J Series Tubs, I have seen these on some other brands too... You need to look at the face to determine if this is your Wet End.. There are many times that the word Jacuzzi or Sundance is cast into the wet end face coming down from the Pressure Side outlet..

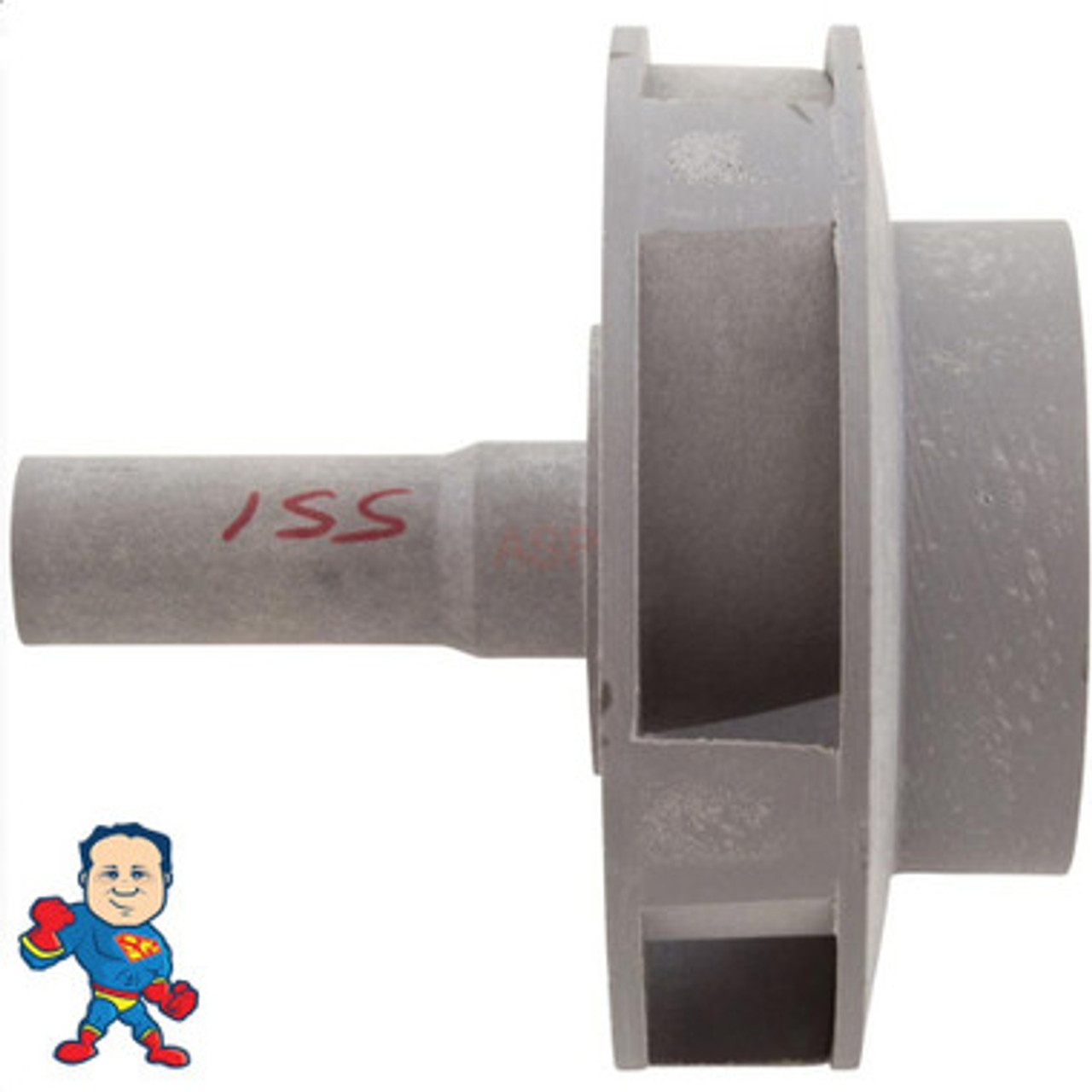

Closed face impeller made for the Piranha series spa pump by Jacuzzi. Rated at 1.5hp, it is used in a Piranha pump body, and must be installed on a 1.5hp (or greater) thru bolt motor. Also used in Thera-Max and Thera-Flo pumps.
For Shaft seal options Click the below Links:
Jacuzzi (4) Mount Piranha Thera-Max Thera-Flo Pump Seal Parts Kit with Silicon
Jacuzzi (4) Mount Piranha Pump Seal Parts Kit with Silicon & (1) Bearing
Jacuzzi (4) Mount Piranha Thera-Max Thera-Flo Pump Seal (2) Bearing Parts Kit with Silicon
Impeller Type Closed Face
Impeller Diameter OD 3-5/8"
Vane Width ID 9/16"
Eye Diameter OD 2-3/16"
Eye Length 5/8"
Impeller Width OD 13/16"
Seal Seat Depth 1/16"
Shaft Length 2"
Shaft Diameter OD 11/16"
Seal Seat Diameter OD 1-9/16"
Manufacturer Jacuzzi/Carvin
Pump Application Fixed Bracket
