Product Description

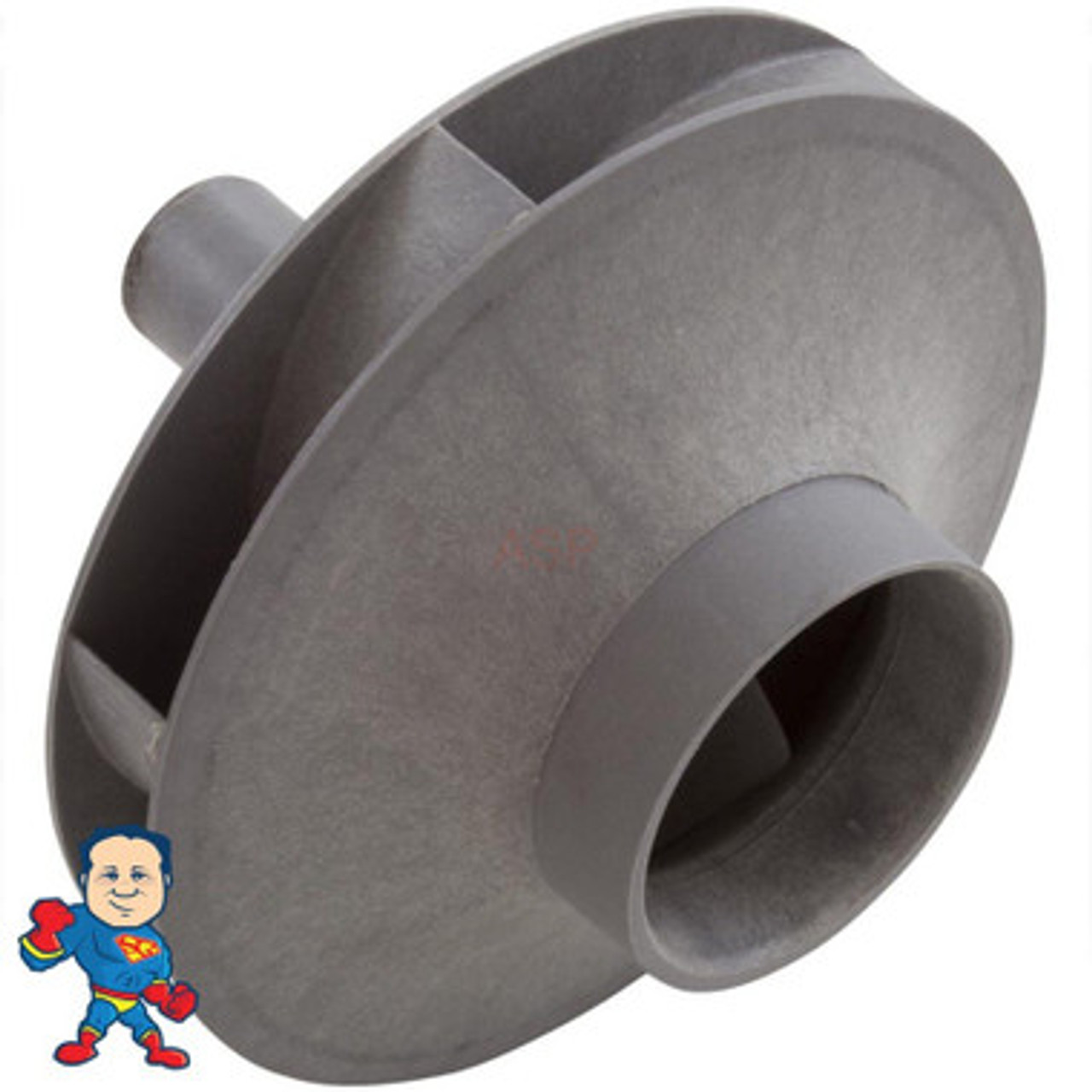

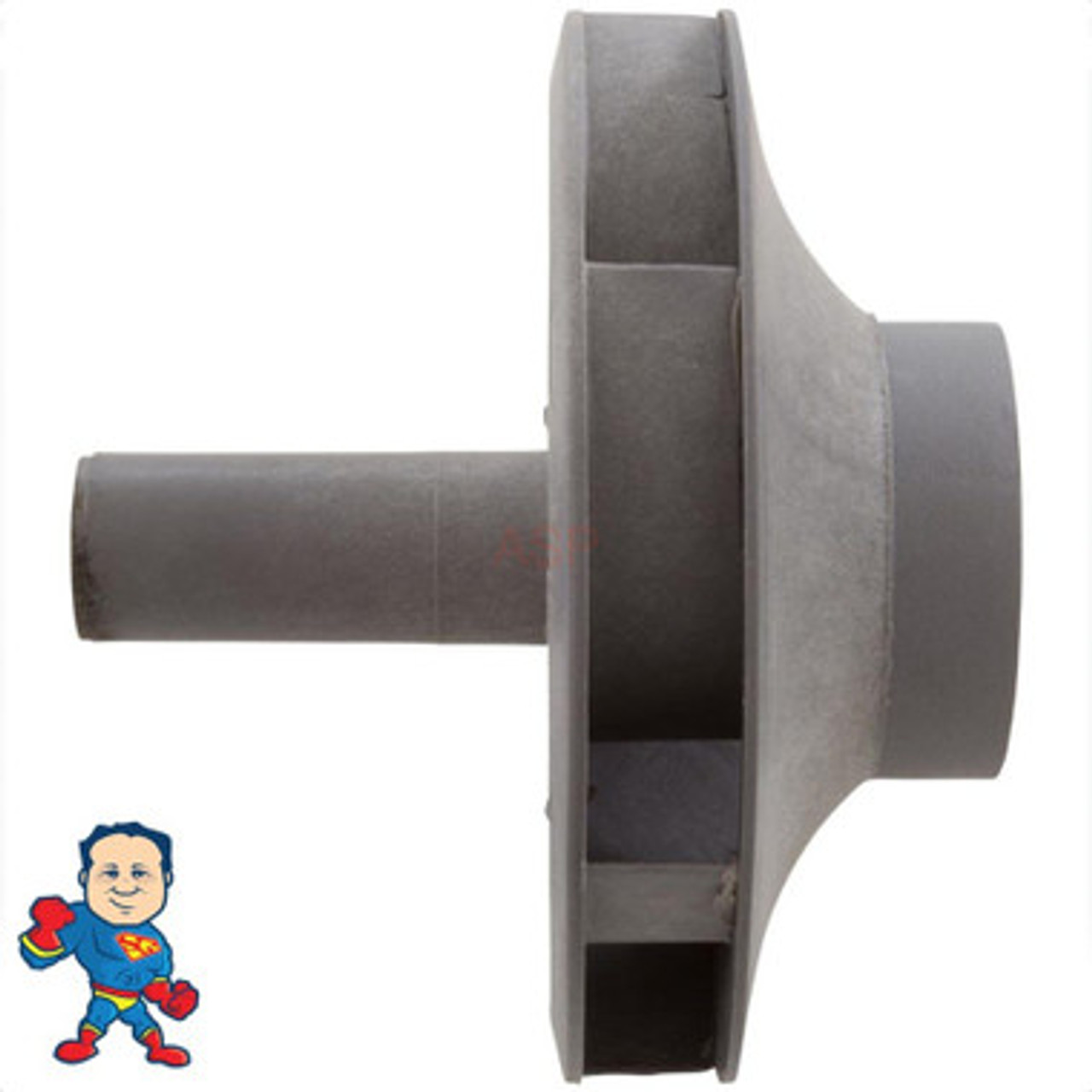

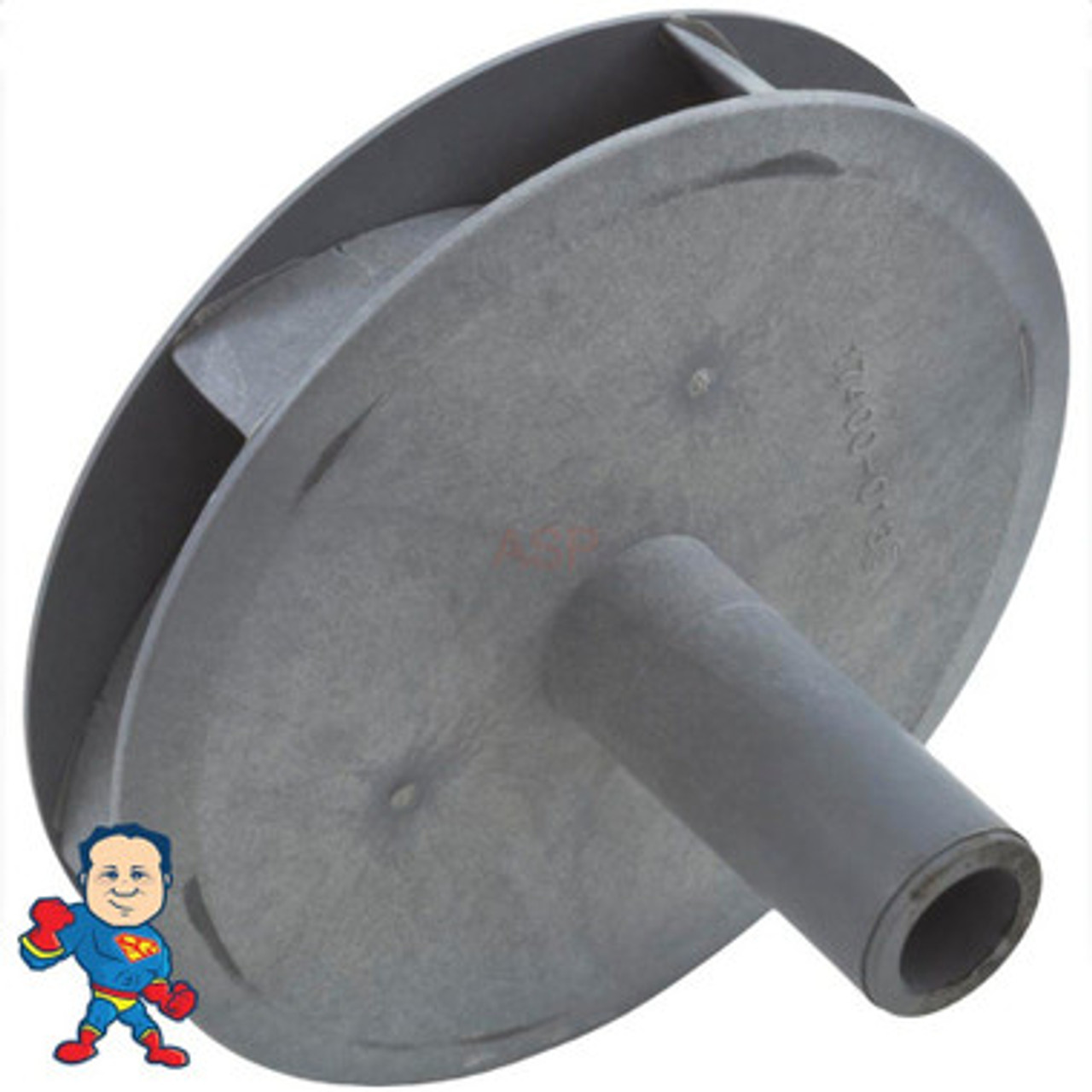

This part is a 3HP Sta-Rite DJ Dura-Jet Pump Impeller.. This impeller will usually have the number 17400-0135 cast into the back and will measure about 4 1/8" wide with an eye width of 1 3/4" and a vane width of 1/2".. This can be found on motors with an amperage of about 12.0 Amps at 230V on High Speed..
For seal kits that fit this pump click this link: 201 Seal Kits
For a face o-ring for this Wet End Click this link: Wet End O-Ring 5-1/8" ID, 3/16" Cross Section Sta-Rite Starite Dura-Jet DJ Series
Impeller Type Closed Face
Impeller Diameter OD 4-1/8"
Vane Width ID 1/2"
Eye Diameter OD 1-3/4"
Eye Length 1/2"
Impeller Width OD 5/8"
Seal Seat Depth n/a
Shaft Length 1-3/4"
Shaft Diameter OD 3/4"
Seal Seat Diameter OD n/a
Manufacturer Sta-Rite/Balboa
Pump Application Dura-Jet
