Product Description
This part is an Impeller for a 48fr Vico Ultima or Ultra Flo, 0.50hp, Jet or Circulation Pump...

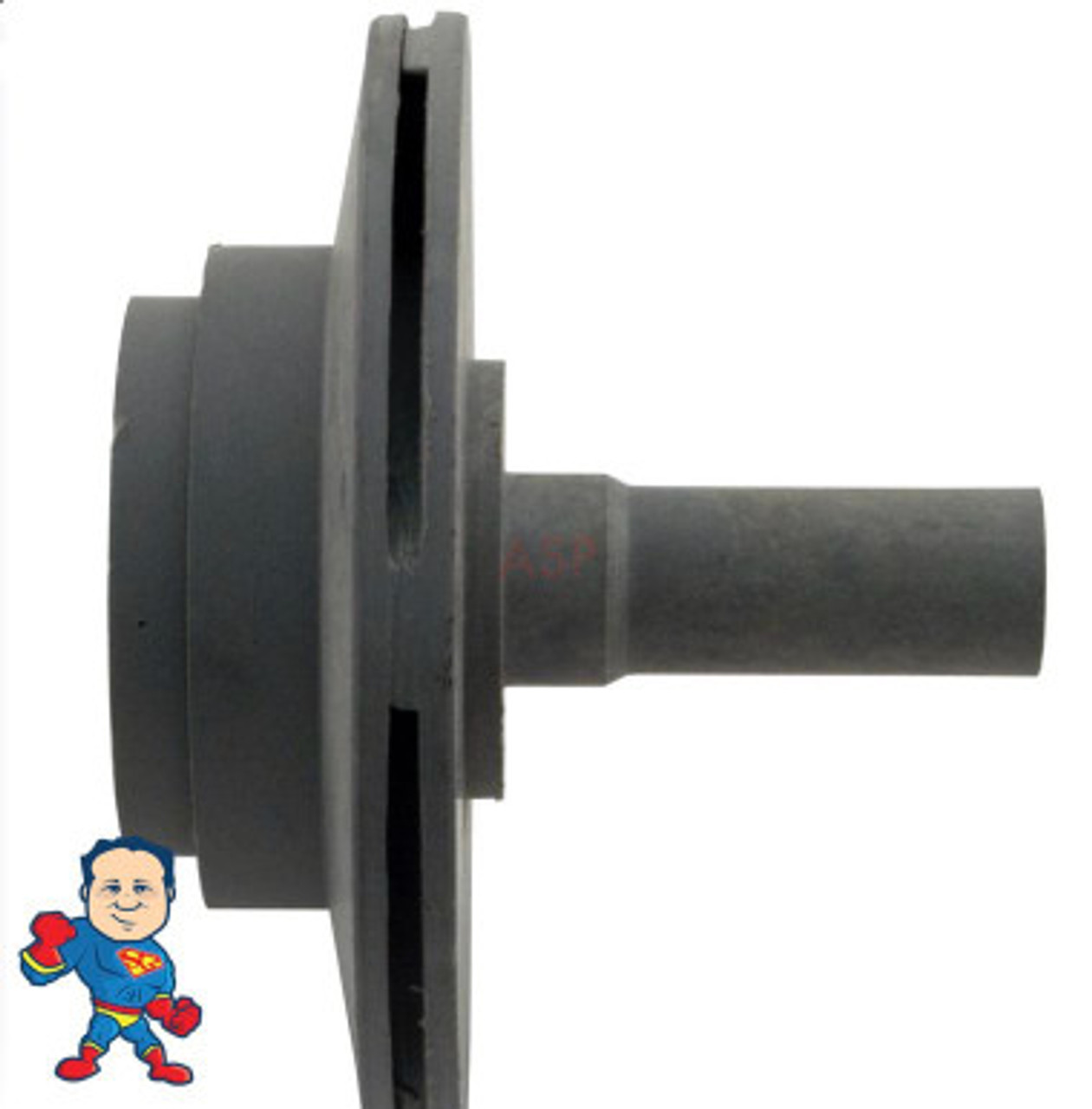

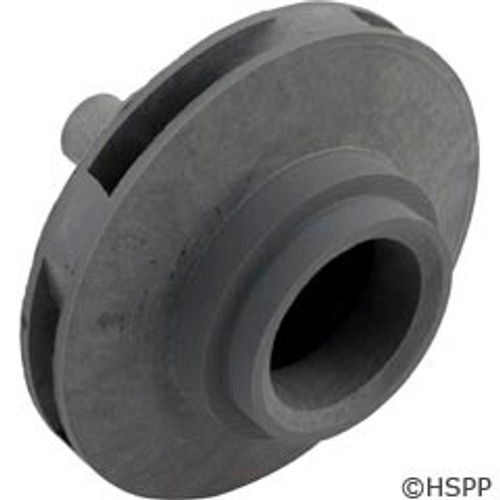

Closed face impeller made for the Ultima and Ultra Flo spa pumps by Vico/Balboa. Rated at 1/2hp, it is used in an Ultima and/or Ultra Flo pump wet end, and must be installed on a 1/2hp (or greater) thru bolt motor.
Impeller Type Closed Face
Impeller Diameter OD 4"
Vane Width ID 1/8"
Eye Diameter OD 2"
Eye Length 1/4"
Impeller Width OD 5/16"
Seal Seat Depth 1/8"
Shaft Length 1-7/8"
Shaft Diameter OD 11/16"
Seal Seat Diameter OD 1-1/2"
Manufacturer Vico/Balboa
Pump Application Ultima, Ultra-Flo
