Product Description
Vico Ultima, Ultra Flo Pump Impeller for a 2HP Motor which would have an Amperage of around 10 Amps on High Speed...

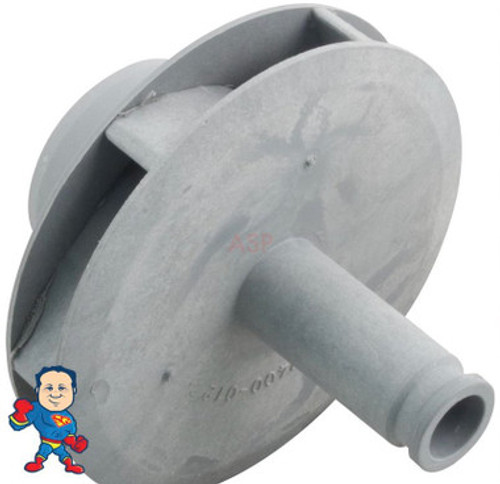

Closed face impeller made for the Ultima and Ultra Flo spa pumps by Vico. Rated at 2.0hp, it is used in an Ultima and/or Ultra Flo pump wet end, and must be installed on a 2.0hp (or greater) thru bolt motor. Shaft Seal Kits Sold Here
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4-7/16" |
| Vane Width ID | 5/16" |
| Eye Diameter OD | 2" |
| Eye Length | 5/16" |
| Impeller Width OD | 1/2" |
| Seal Seat Depth | 1/16" |
| Shaft Length | 1-7/8" |
| Shaft Diameter OD | 11/16" |
| Seal Seat Diameter OD | 1-1/2" |
| Manufacturer | Vico |
| Pump Application | Ultima, Ultra-Flo |
