Product Description

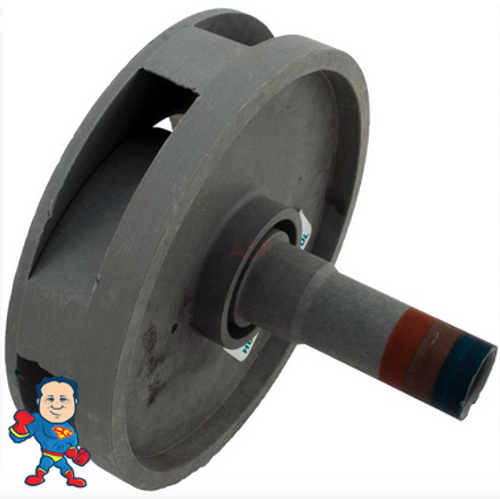

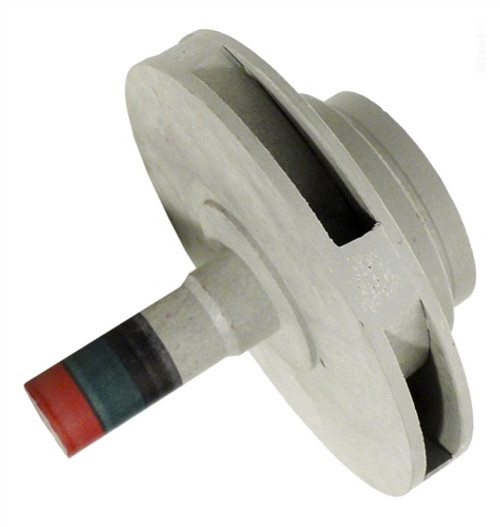

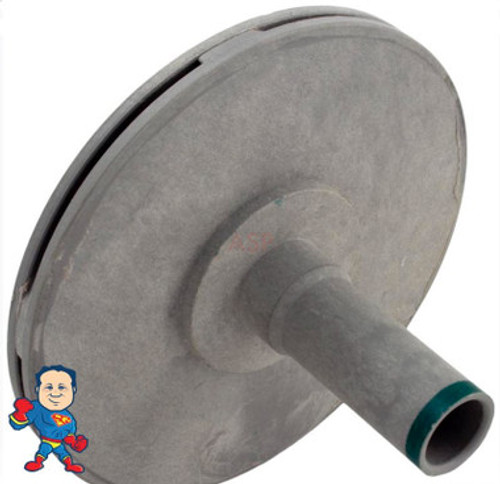

Vico/Balboa Ultimax Pump Impeller
Closed face impeller made for the Ultimax spa pump by Vico/Balboa. Rated at 4.0hp, it is used in an Ultimax pump wet end, and must be installed on a 4.0hp (or greater) thru bolt motor.
Click the below links for the seals, kits and bearings for this pump and motor:
201 Seal Pump Parts Kit with Silicon Fits Most Vico Sta-Rite Spa Hot Tub Pumps
1 Front Bearing & Seal Pump Parts Kit Fits Most Vico Sta-Rite Spa Hot Tub Pumps
Shaft Seal, PS-201, 3/4" Shaft, Buna Fits Most Vico, Sta-Rite and Power Right Spa Pumps
Motor Bearing Deluxe High Quality 6203 Fits most but not all motors
| Impeller Type | Closed Face |
| Impeller Diameter OD | 4-5/16" |
| Vane Width ID | 3/4" |
| Eye Diameter OD | 2-1/4" |
| Eye Length | 3/8" |
| Impeller Width OD | 1" |
| Seal Seat Depth | n/a |
| Shaft Length | 2" |
| Shaft Diameter OD | 11/16" |
| Seal Seat Diameter OD | n/a |
| Manufacturer | Vico/Balboa |
| Pump Application | Ultimax |
Due to the length of the shaft on the impeller it may be necessary to remove the water slinger on the motor or shorten the shaft of the impeller in order for the wetend and motor to fit properly together.
Shaft seals for the Vico pumps may be very snug on the impellers, the use of seal lube may be necessary in order to fit seal onto shaft of impeller.
