Product Description

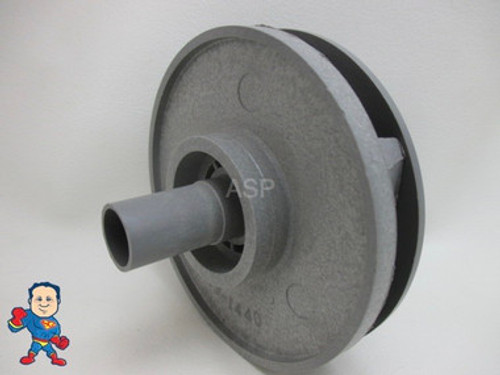

Waterway HiFlo Pump Impeller
Closed face impeller made for the HiFlo side discharge pump by Waterway Plastics. Rated at 3.0hp, it is used in a Waterway HiFlo pump wetend, and must be installed on a 3.0hp (or greater) thru bolt motor. Shaft seal sold separately
| Impeller Type | Closed Face |
| Impeller Diameter OD | 3-13/16" |
| Vane Width ID | 7/16" |
| Eye Diameter OD | 1-13/16" |
| Eye Length | 3/4" |
| Impeller Width OD | 1" |
| Seal Seat Depth | 1/2" |
| Shaft Length | 15/16" |
| Shaft Diameter OD | 5/8" |
| Seal Seat Diameter OD | 1-9/16" |
| Manufacturer | Waterway |
| Pump Application | Hi-Flo "F" |
