Product Description
Waterway Viper Pump 5.0 Impeller exclusively for a Waterway Viper pump which has 2 1/2" inlet and outlet which measures about 3 9/16" across the threads...I have found this 5HP pump impeller to be on a 14-16 amp motor...

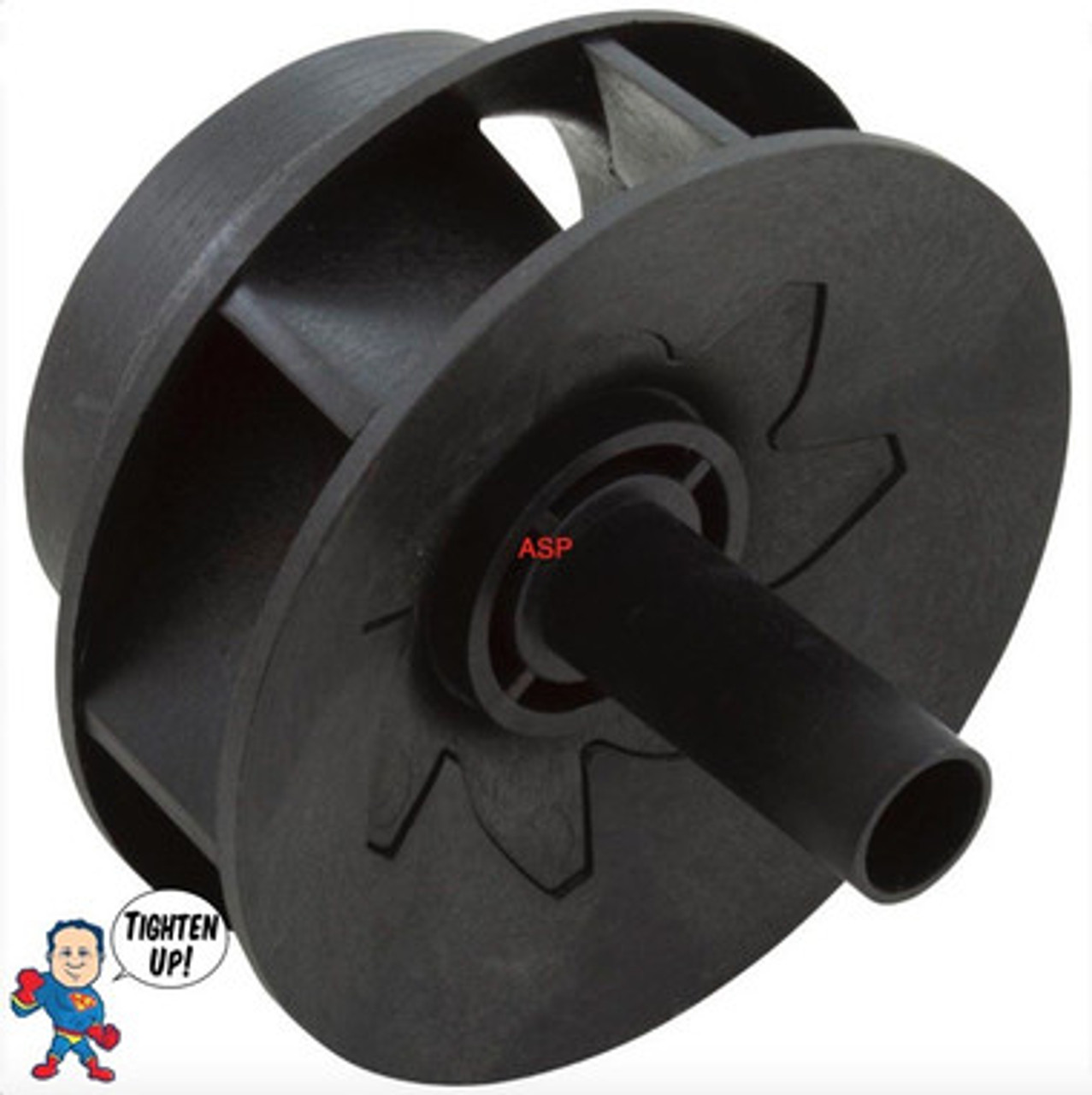

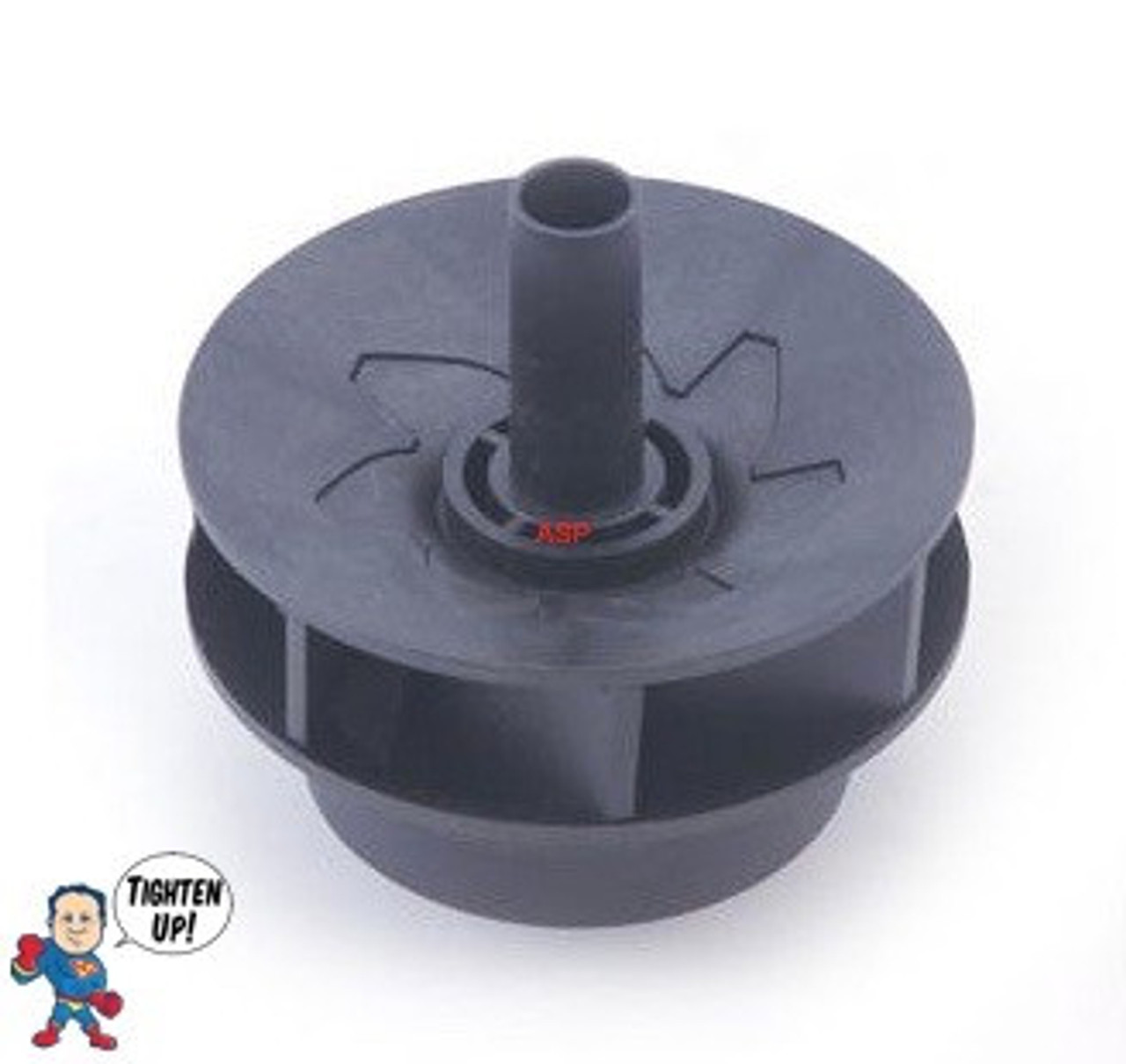

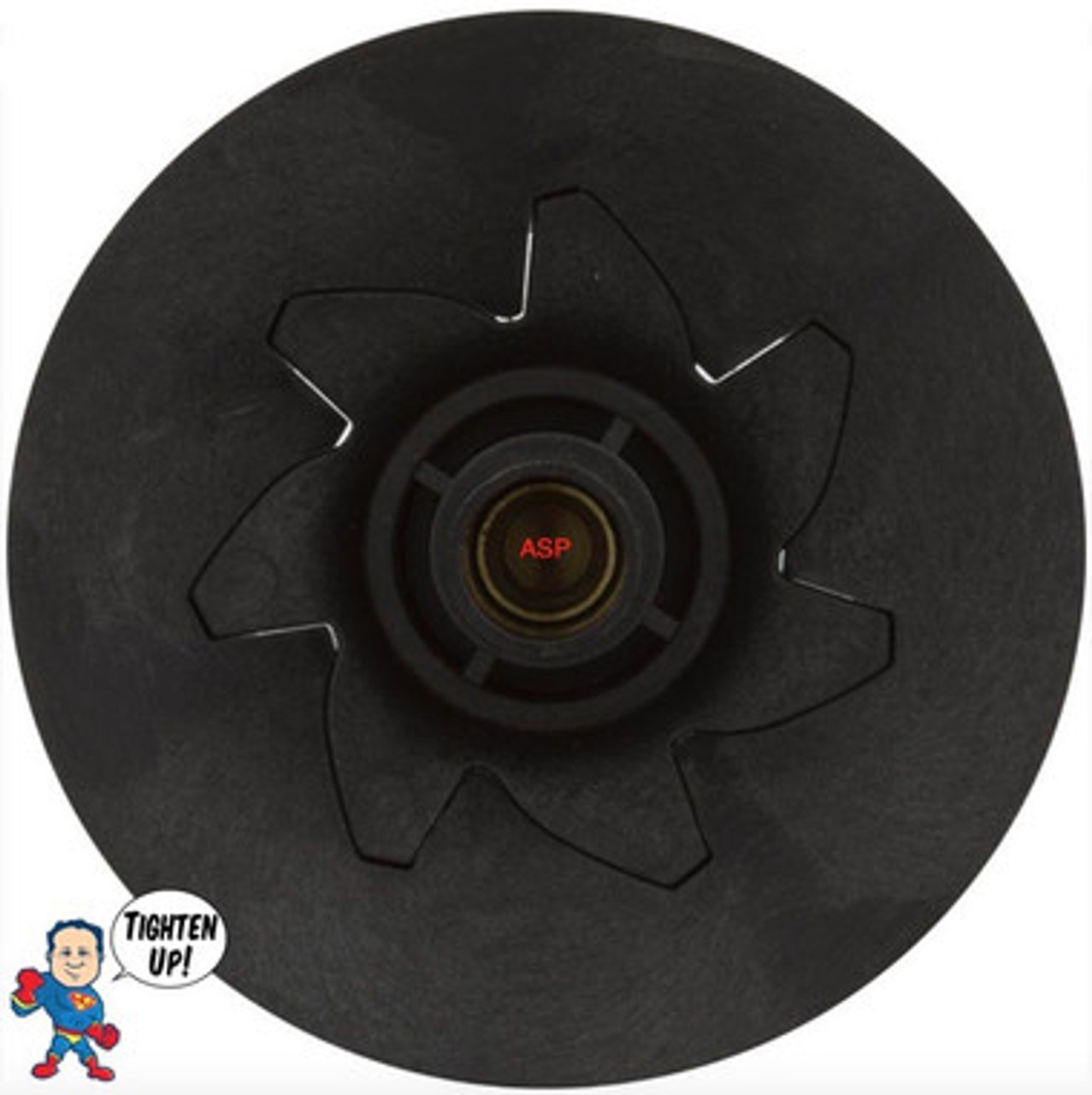

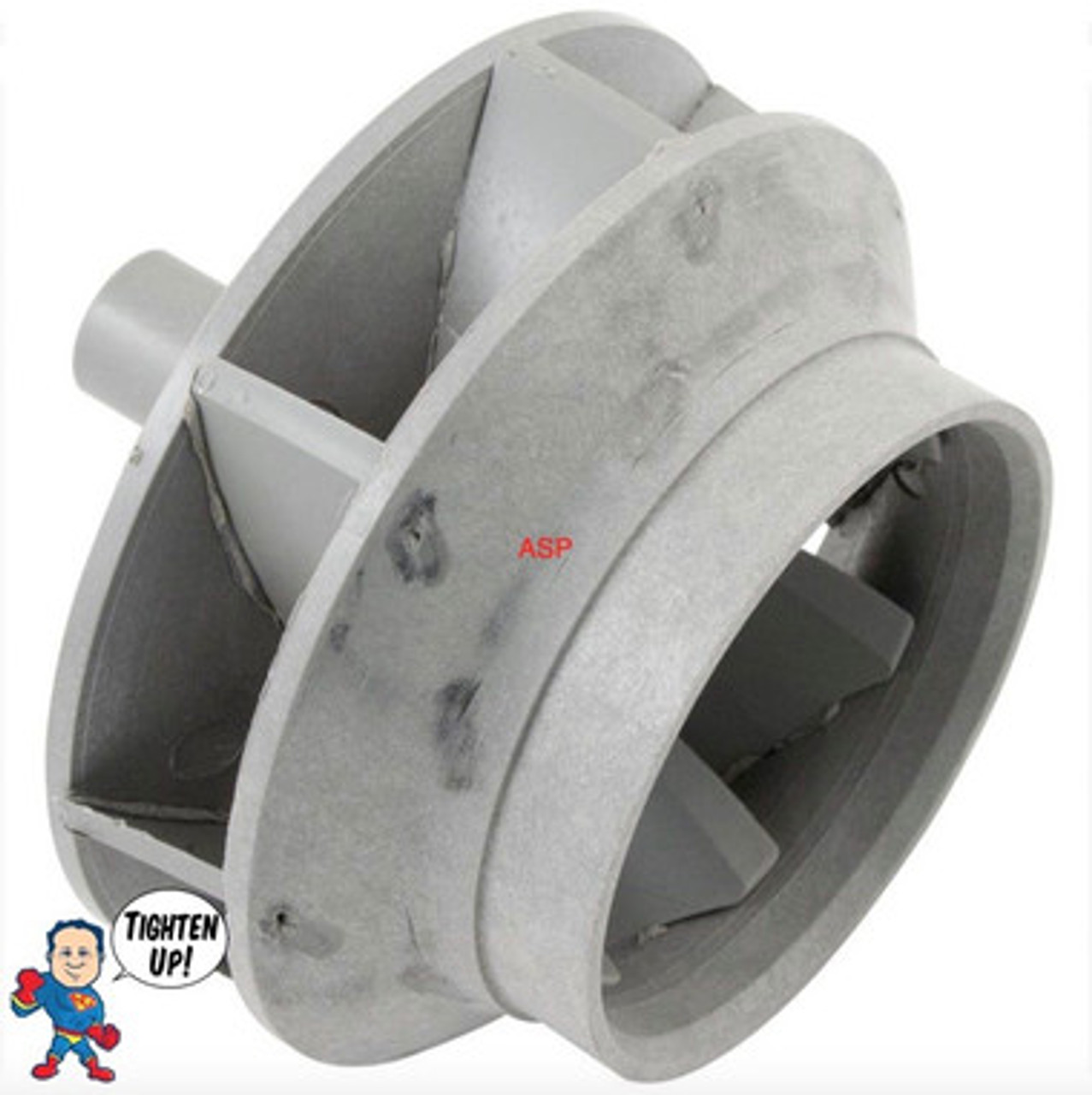

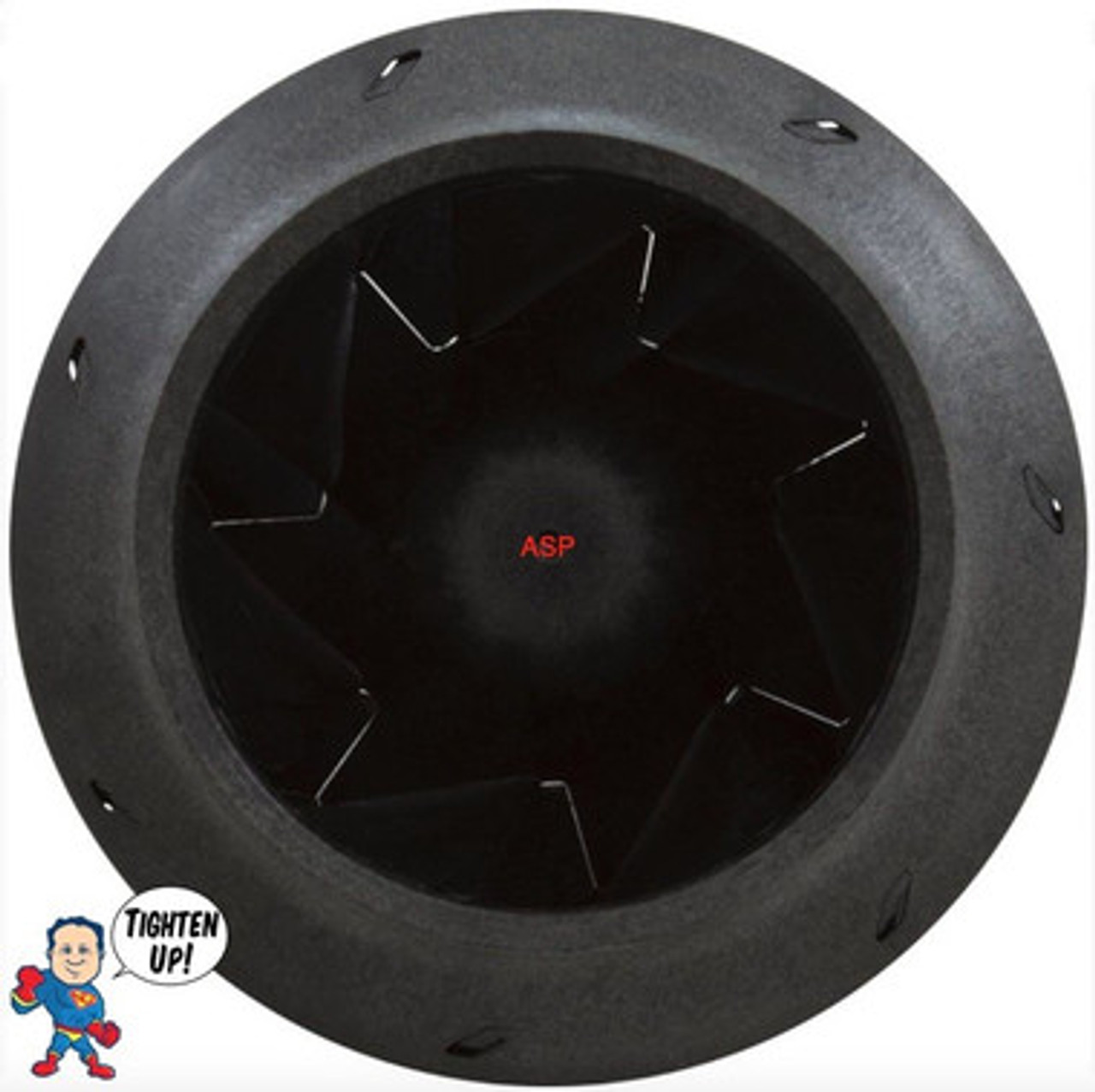

Closed face impeller made for the Viper pump by Waterway Plastics. Rated at 5.0hp, it is used in a Waterway Viper pump wet end, and must be installed on a 5.0hp (or greater) thru bolt motor.
Impeller Type Closed Face
Impeller Diameter OD 3-11/16"
Vane Width ID 11/16"
Eye Diameter OD 2-5/8"
Eye Length 9/16"
Impeller Width OD 29/32"
Seal Seat Depth 7/32"
Shaft Length 1-1/2"
Shaft Diameter OD 5/8"
Seal Seat Diameter OD 1-1/4"
Manufacturer Waterway
Pump Application Viper
