Product Description
This 1.65HP Impeller fits a Watkins Vendor Code 0108 Wet End.. It can be found under the Name Wavemaster 7000 on Hot Spring, Caldera, Tiger River, Solana or Hot Spot tubs... You need to look at the face to determine if this is your Wet End..

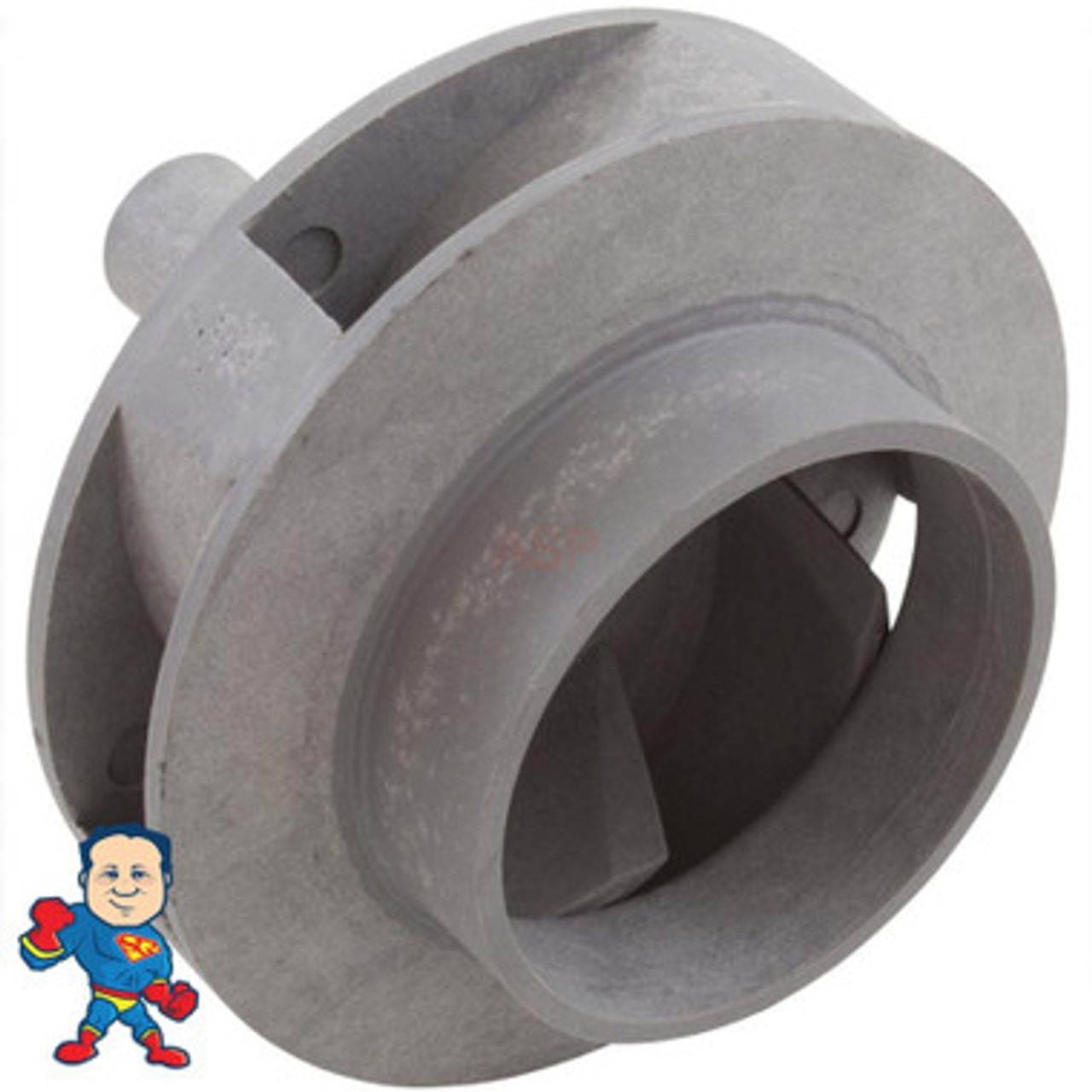

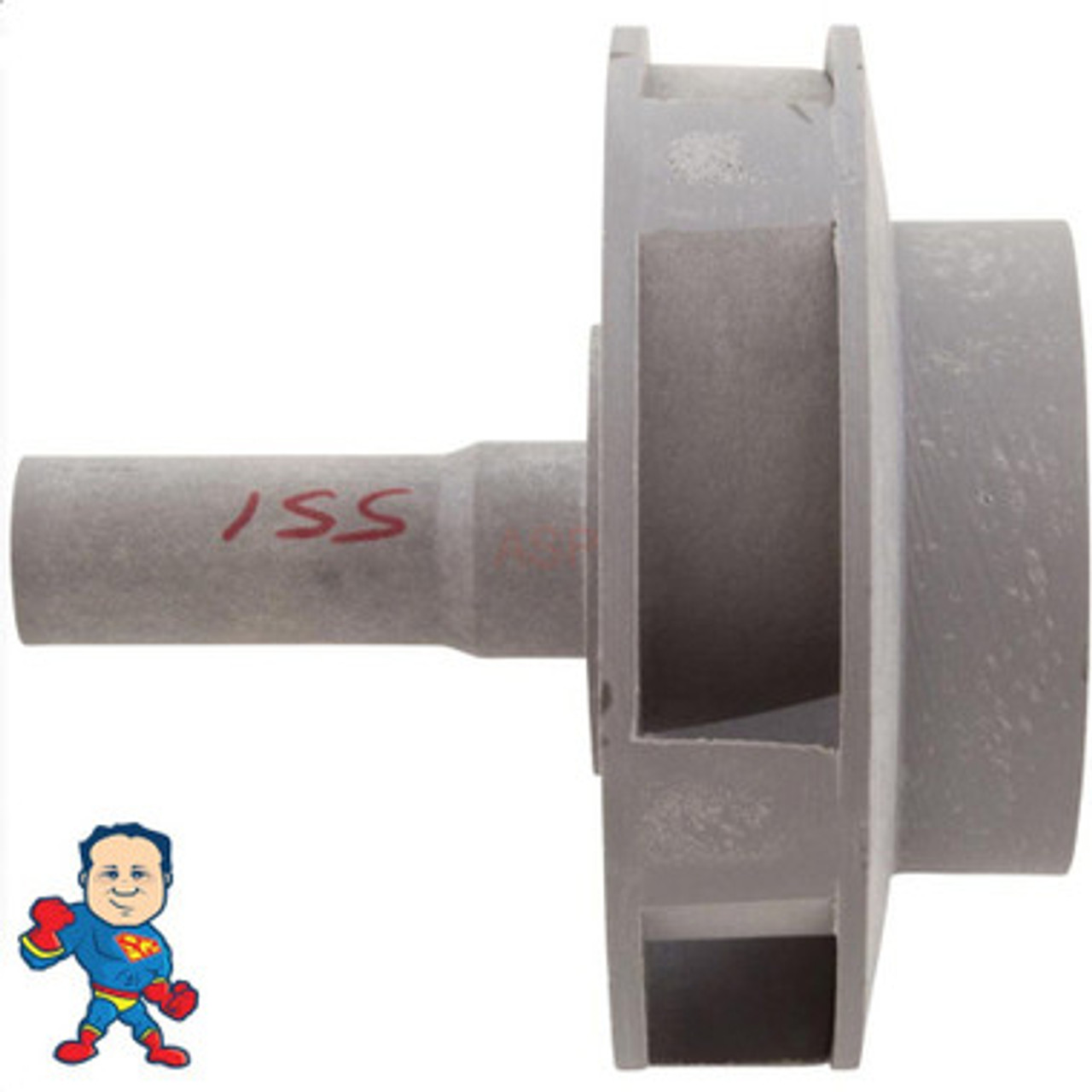

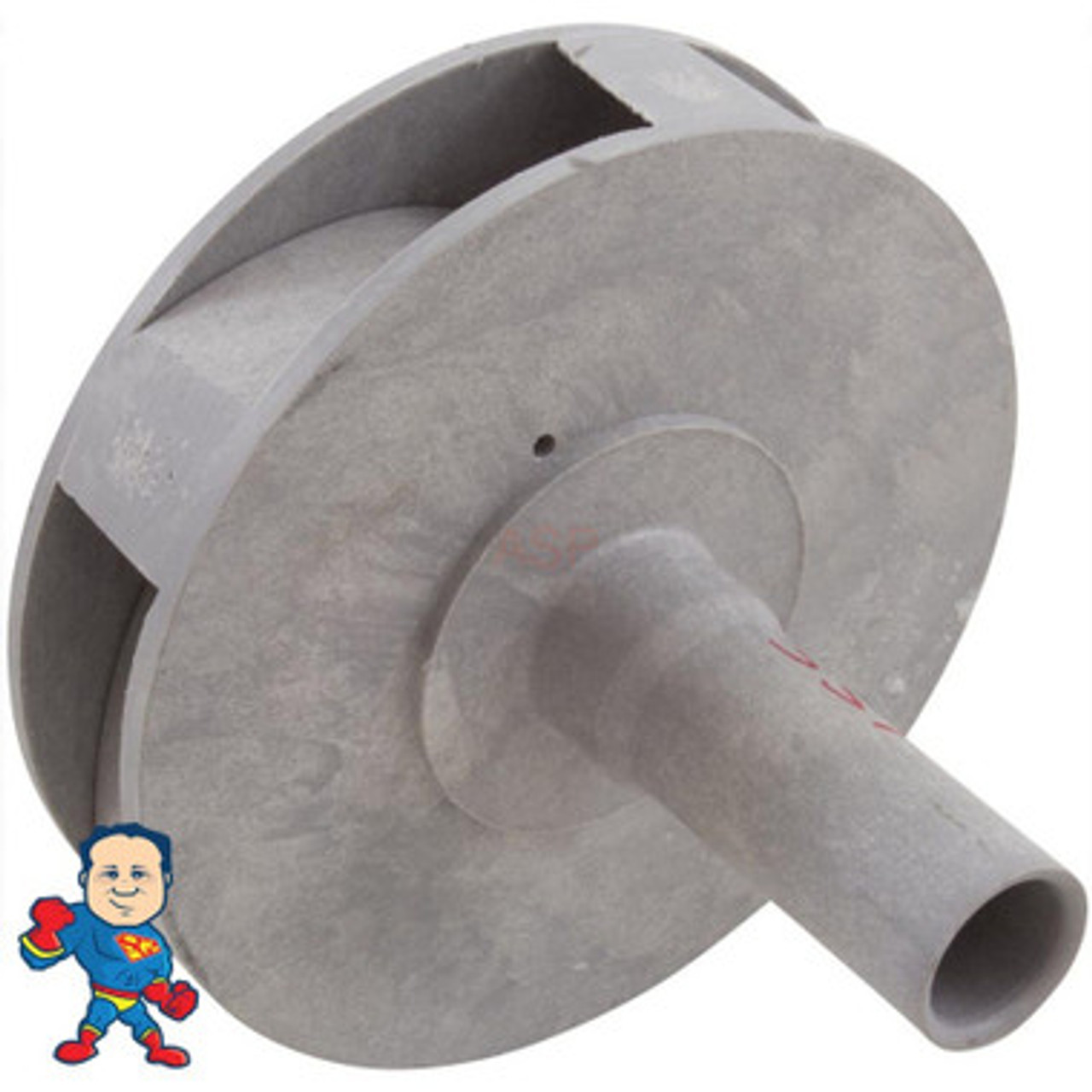

Closed face impeller made for the Piranha series spa pump by Jacuzzi. Rated at 1.65hp, it is used in a Piranha pump body..
Impeller Type Closed Face
Impeller Diameter OD 3-5/8"
Vane Width ID 9/16"
Eye Diameter OD 2-3/16"
Eye Length 5/8"
Impeller Width OD 13/16"
Seal Seat Depth 1/16"
Shaft Length 2"
Shaft Diameter OD 11/16"
Seal Seat Diameter OD 1-9/16"
Manufacturer Watkins Wavemaster
Pump Application Vendor Code 0108
