Product Description

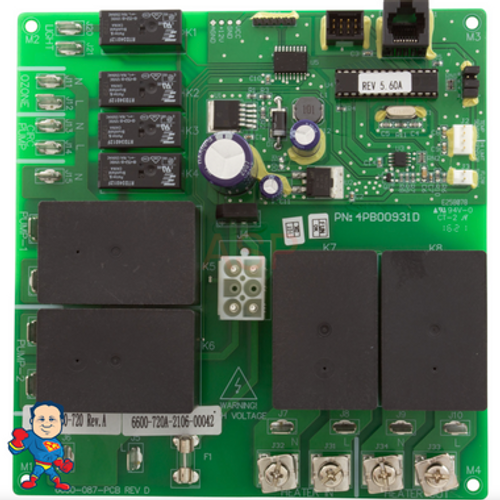

LX-15 based circuit board for Sweetwater, Sundance and Jacuzzi spas that use a circulation pump, manufactured 2002 +. Eprom revision 3.61 which provides support for optional second pump. This new universal board replaces 6000-167, 6600-288, 6600-088 and SD6600-726.
Jumper settings are as follows:
Jumper 2 - On 1 Pin - 15A, On 2 Pins - 50A
Jumper 4 - On 1 Pin - 2 pumps, On 2 Pins - 1 pump
Jumper 6 - Used along with Jumper 2
Jumper 8 - On 1 Pin - Celsius temp display, On 2 Pins - Fahrenheit temp display
Circuit Board Control Type | Spa Control |
Circuit Board Application | Sundance |
Circuit Board Model | J-LX, J-LXL |
Circuit Board Type | New |
Please Note: Circuit boards are final sale, so please be sure that this is the correct board for your spa.
