Product Description

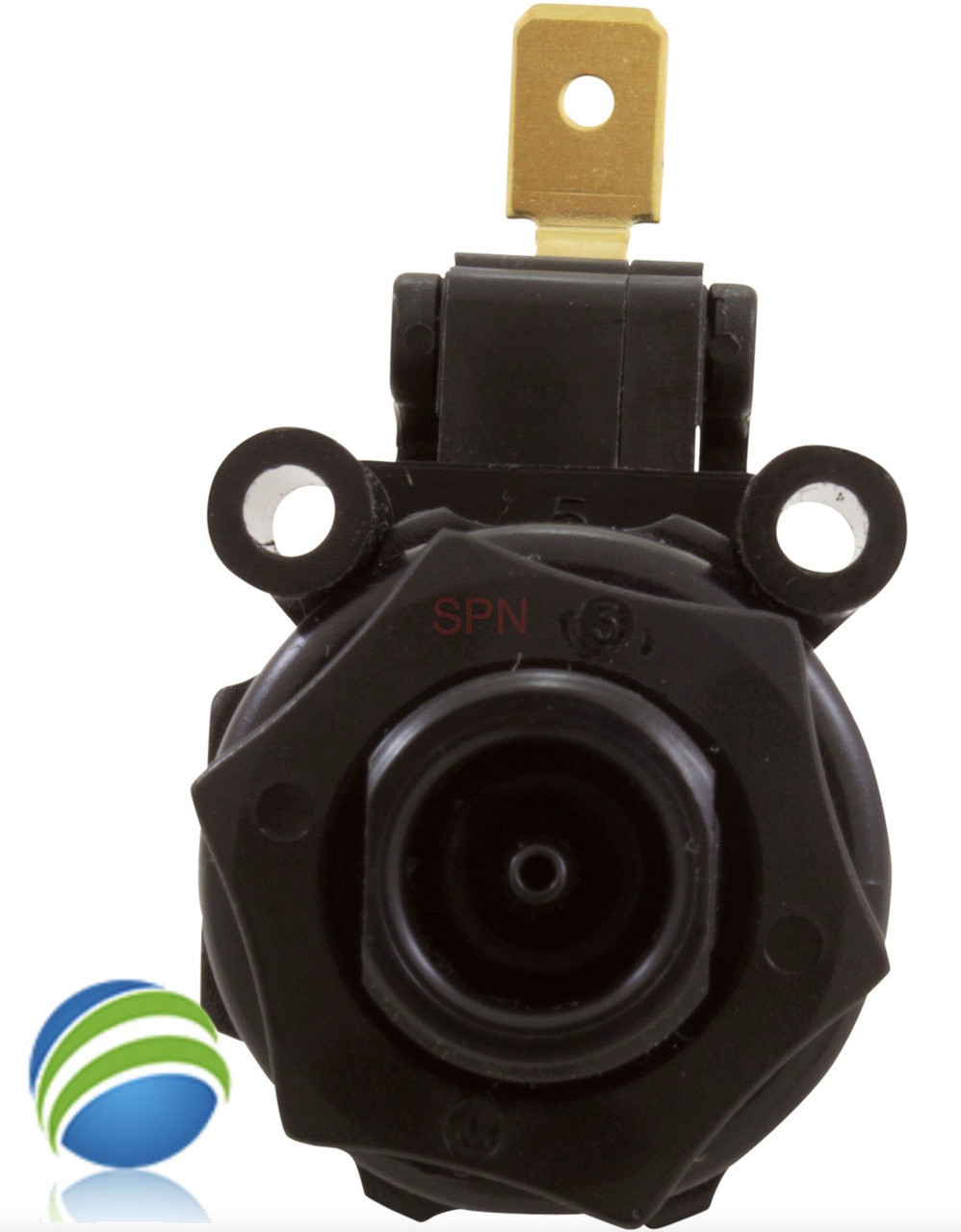

Note: The Jag-3 air switch is obsolete and you will receive the new retro-fit replacement option. Its possible you may need to adjust the hole size in your control box a s the Jag-3 used a 3/8" hole and the new units a 9/16" or you can mount the switch inside of the control box. Most boxes have the 9/16" hole precut.

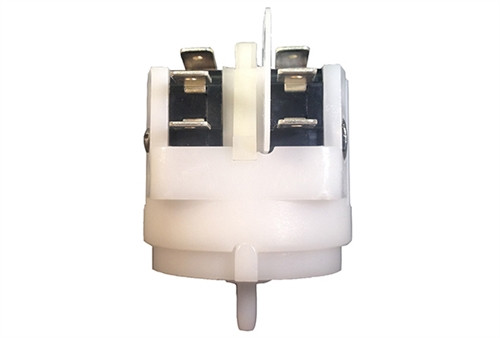

Len Gordon Jag-3 momentary air switch rated at 3 amp. Normally used to activate a coil on a stepper style switch. Depending on air button used this button can be located at different distances from the air button itself. Momentary means this was used in conjunction with a sequencer or relay that does the work. Used in conjunction with most Len Gordon relays
Distances with Len Gordon Air Buttons line are:
#4 Air Button with Maximum Distance of 75'
#10 Air Button with Maximum Distance of 150'
#15 Air Button with Maximum Distance of 150'
| Function | Momentary |
| Air Switch Type | Single Pole Double Throw (spdt) |
| Model | 860010-3 |
| Air Switch Mount | 3/8"-hole (Now 9/16" w/ retro replacement) |
| Air Tube Connection Size | 1/8" Barb (b) |
| Switch Amperage | 3A |
| Manufacturer | Brett Aqualine |
