Product Description

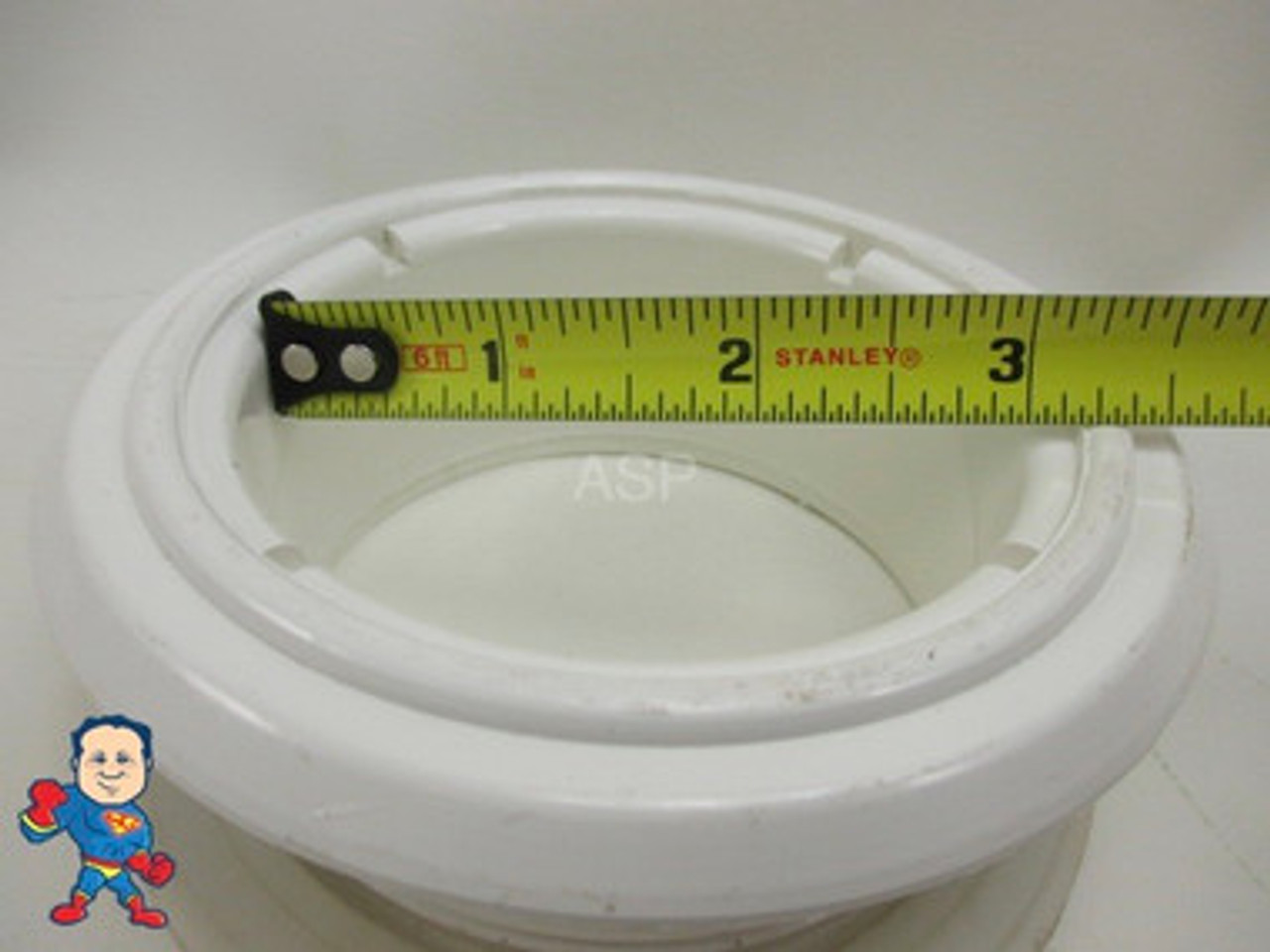

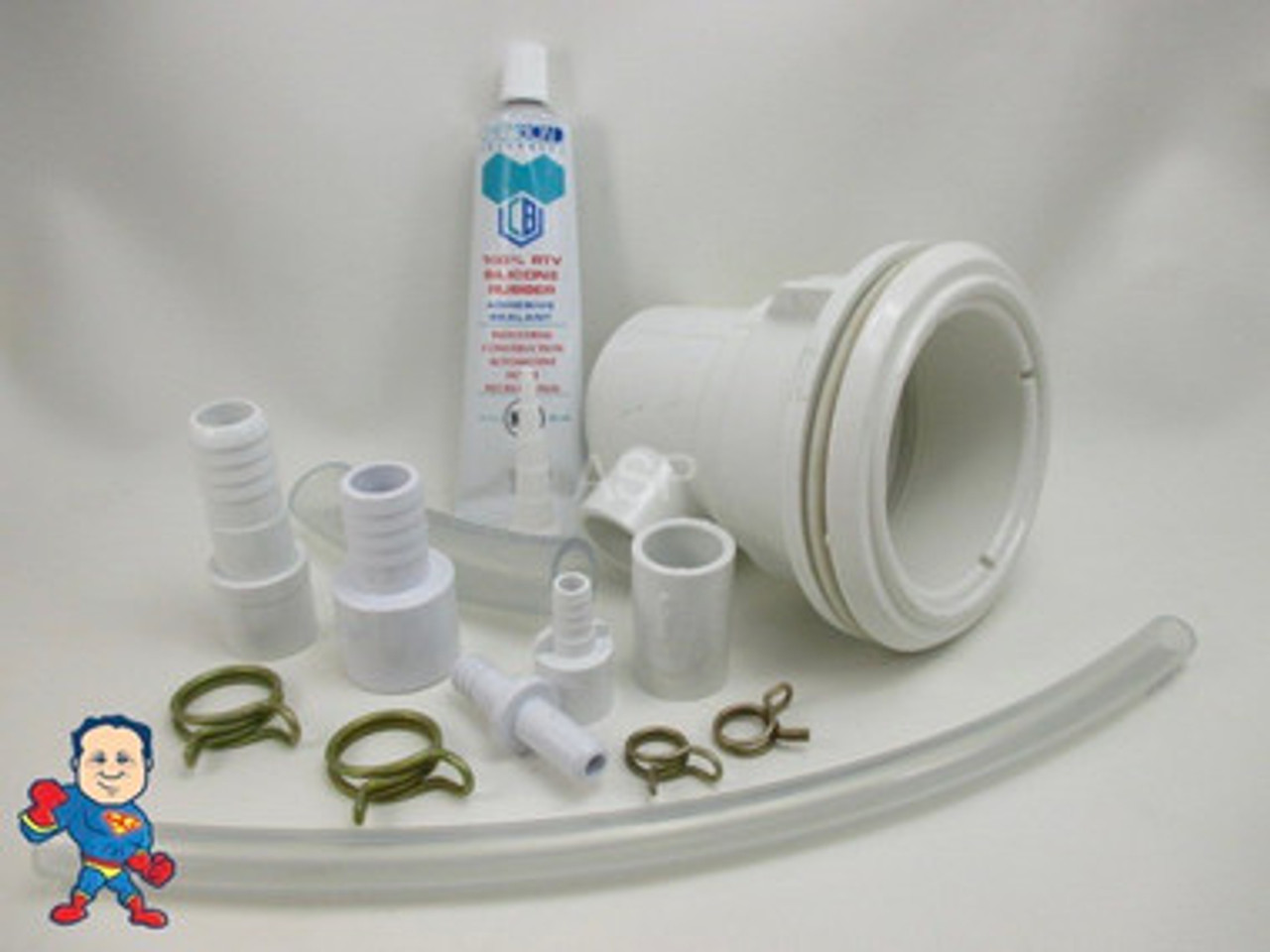

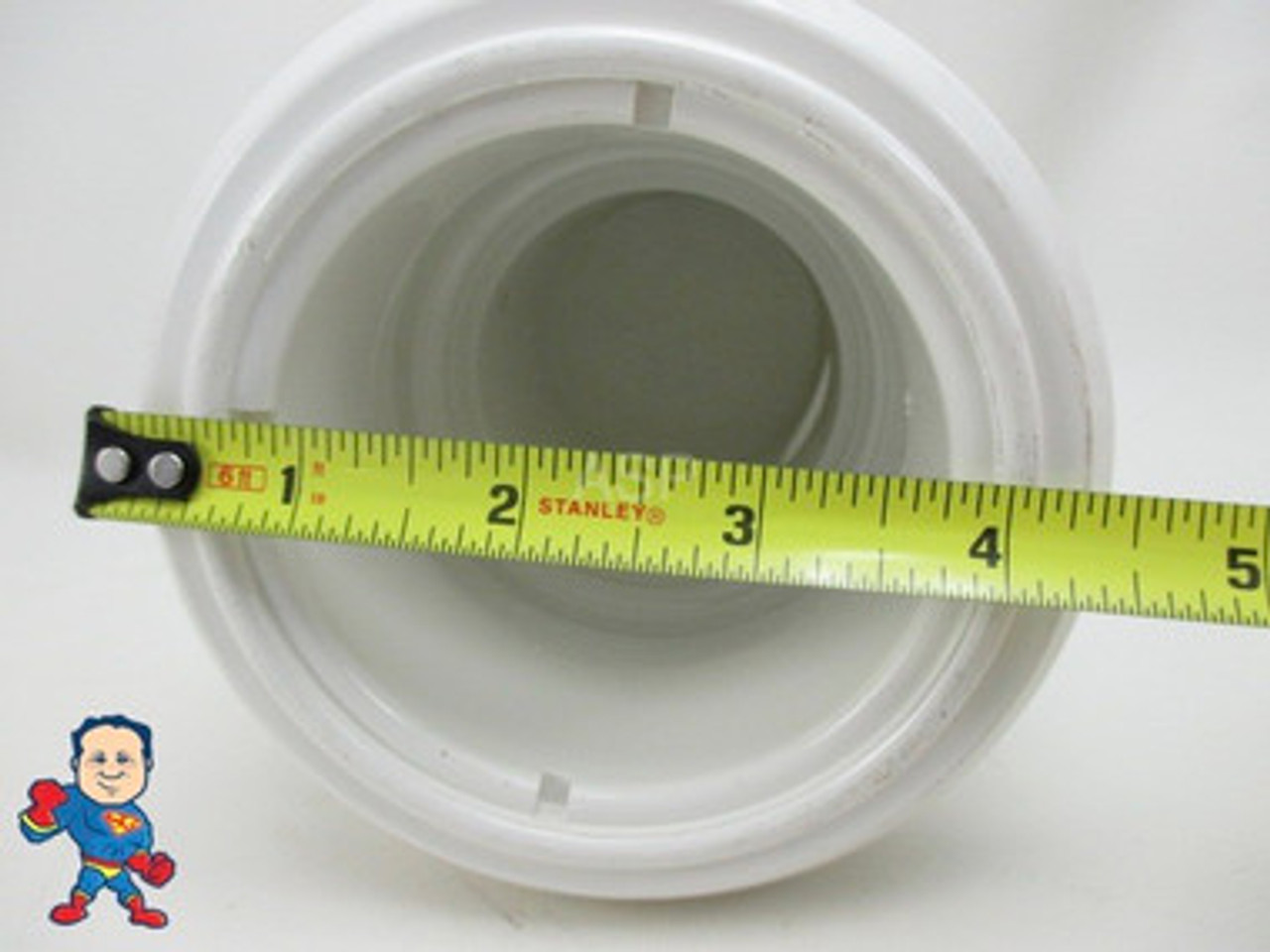

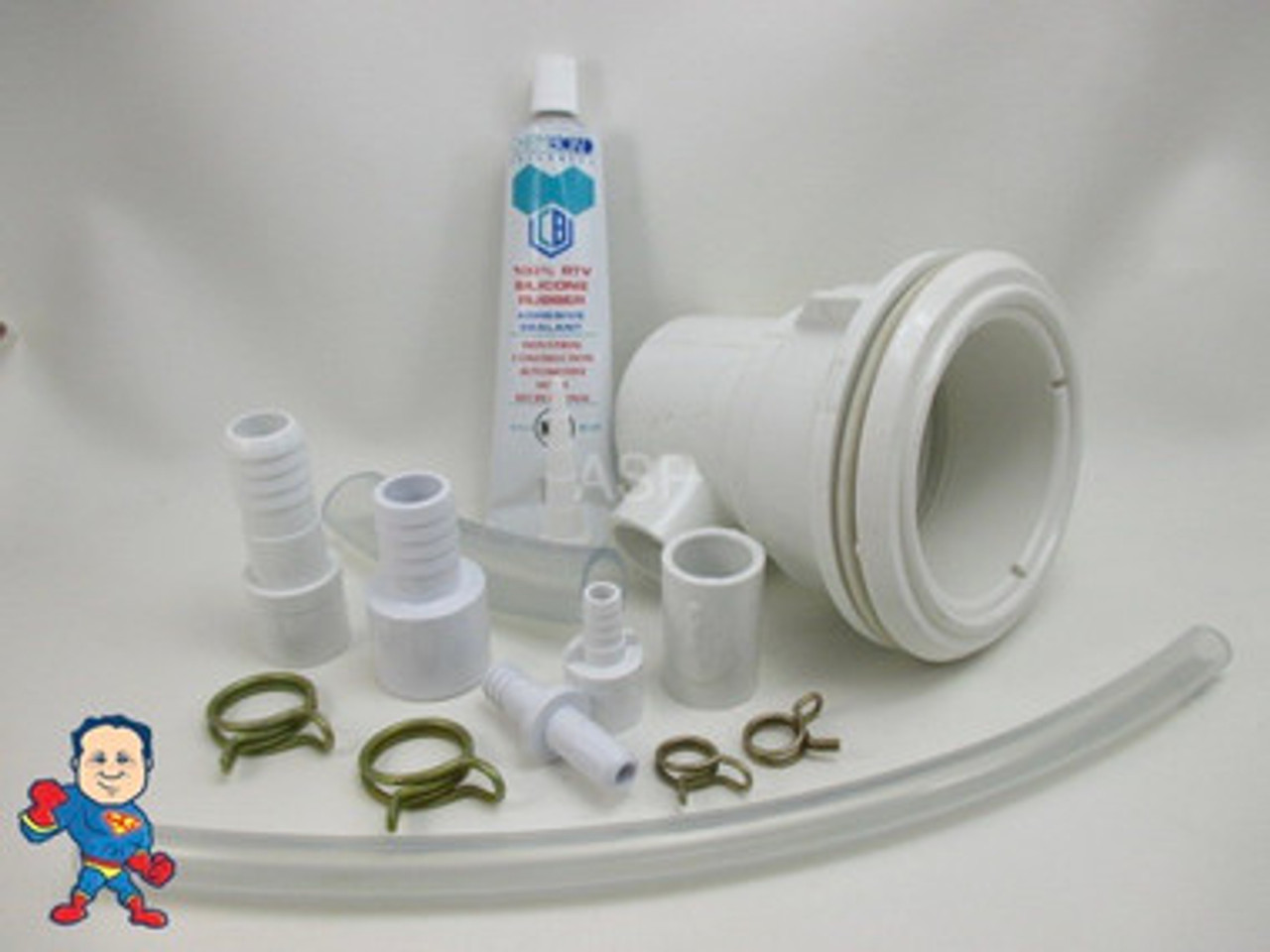

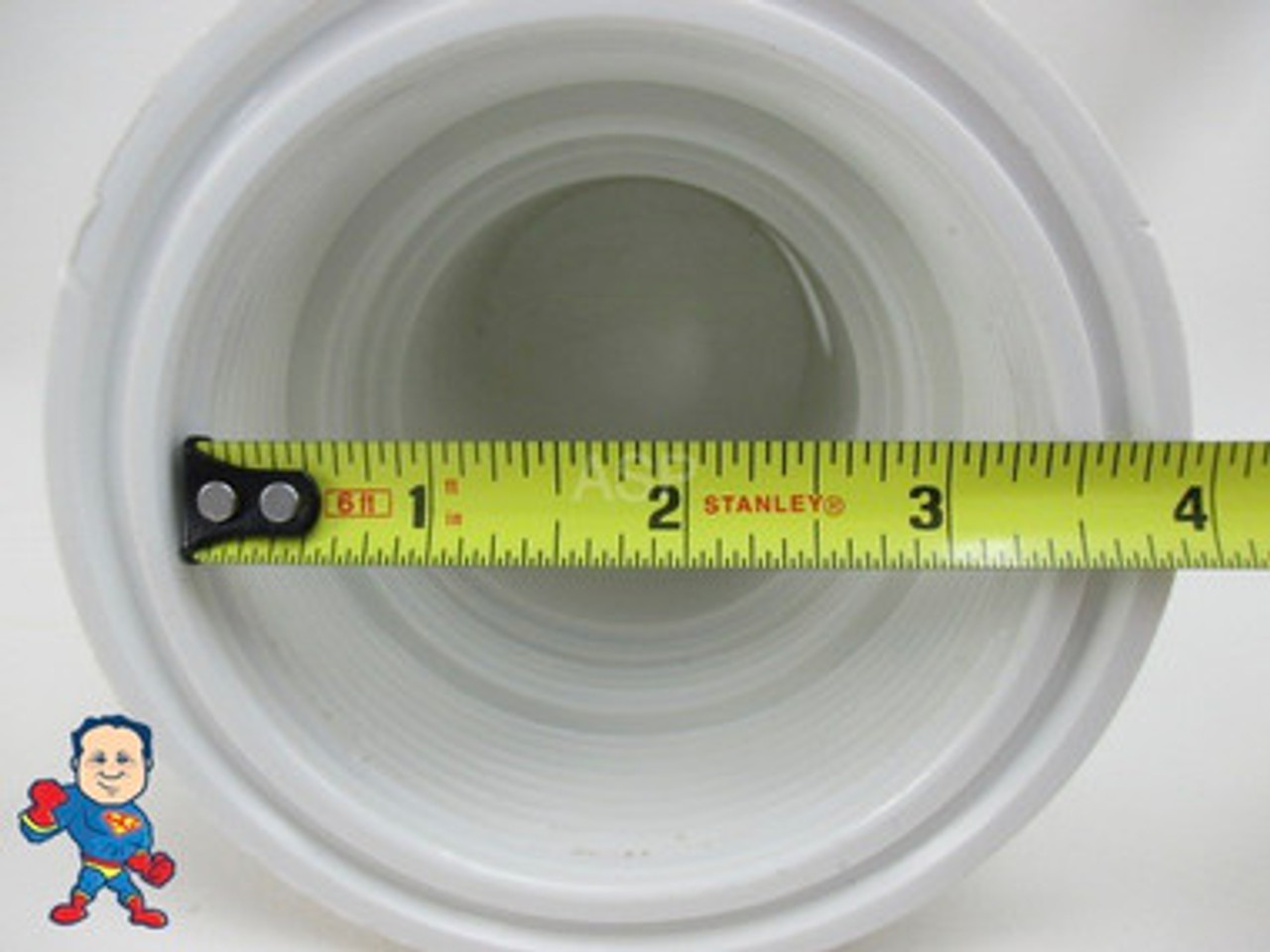

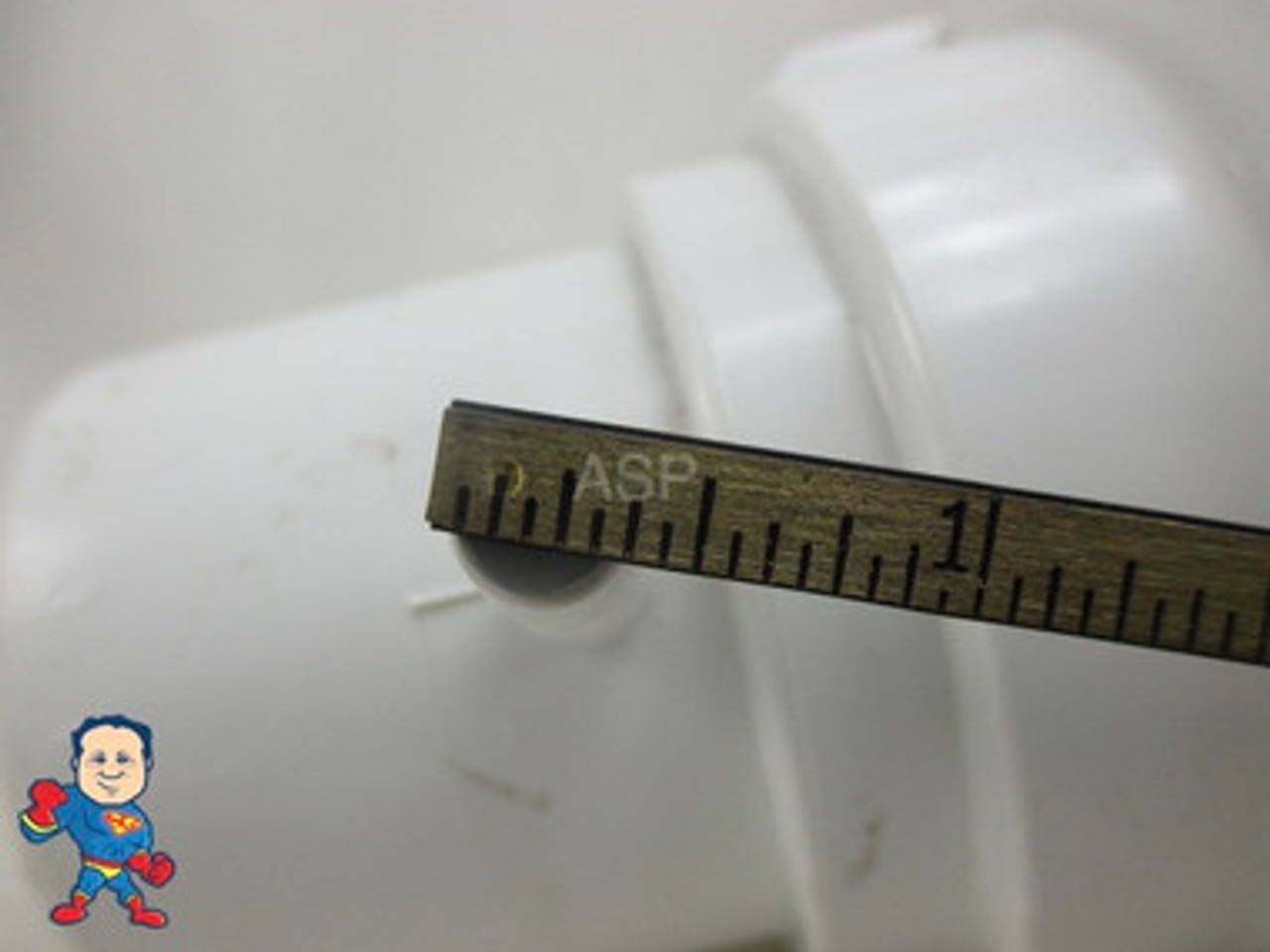

This part is a Waterway Short Body Power Series Jet Body Kit.. This Kit Includes the Jets Body, Flange, Gasket, a 2.8 Oz Tube of Silicon to Seal the Jet Body Back to the shell, 4" Of 3/4" Clear Tubing and (2) 3/4" Clamps along with a 3/4" Street to 1/2" Slip reducer Bushing and a 1/2" Street to 3/4" Barb connector, 12" of 3/8" Clear Tubing a 3/8" x 3/8" Barb, and a 1/2" Street to 3/8" Barb fitting and a 1/2" x 1/2" Coupler... This kist has everything you need to connect this jet body back to any pipe size Except 1" on the water side.. In that case you will need an additional 1" Coupler found Here: Coupler 1" Slip x 1" Slip PVC This part has been discontinued by Waterway but we have some.. The Width of the face is 4 1/2", The Hole size is 3 1/2", the overall length of the jet body is 4 5/8" from the front to the tip of the back and the Water connection is 3/4" which measures about 1" inside diameter and the Air connection is a 3/8" Barb.. This Jet Body comes with a Threaded Flange, Gasket and Jet Body..
We do offer just the jet body and also this kit with glue:
4 1/2" Wide Face Jet Body, Waterway, Power Series, Short Body Jet, Water 3/4" Slip, Air 3/8" Barb
| Hole Size | 3-1/2" |
| Air Connection Size | 3/8" |
| Jet Part Type | Body |
| Air Connection Type | Barb (b) |
| Water Connection Size | 3/4" |
| Water Connection Type | Slip (s) |
| Manufacturer | Waterway |
| Model | Power |
