Product Description

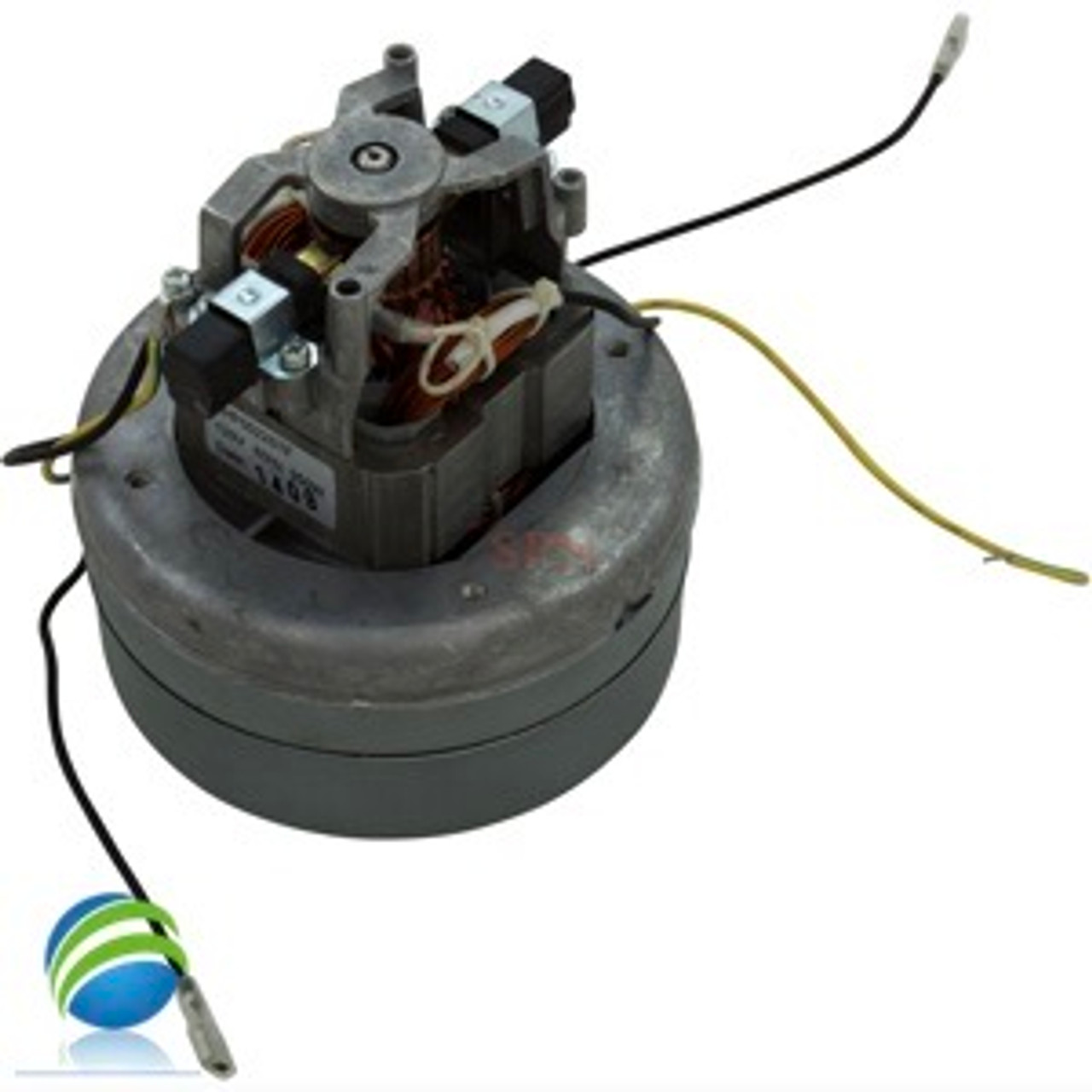

Single speed air blower in 1.5 HP that can replace virtually all underskirt and some outdoor blowers regardless of brand.
AKA/Replaces: ASF3015101, 116669-50, T052-352202112, 609657, 9269-01, 1.5110BLR, 70-01669, 13-0002, 116311, HHP052-2STF
AS3010201 Features:
- 1.5 HP Single Speed
- 115 Volt, 8.0 Amp
- 5-3/4" height top to bottom
- 2-3/4" lower fan housing
- Outside diameter of 5-7/8"
| Blower Motor Horsepower | 1.5hp |
| Motor Amperage | 8.0A |
| Voltage | 115v |
| Blower Amperage | 8.0A |
| Phase | 1 Phase (1ph) |
| Blower Motor Style | Standard |
| Speed | 1 Speed (1-Spd) |
| Horsepower | 1.5hp |
| Manufacturer | Ametek |

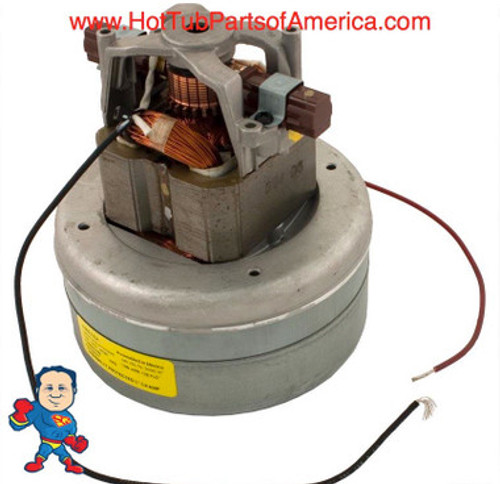

The way you figure out which motor you need is you measure the Width & Height of the motor.
Look at the picture for examples of what to measure, the you figuire out what voltage 115V or 230V
and don't guess at the voltage because wiring in the wrong motor could damage the motor and the board.
Last look for the Horse Power and Amperage note that usuallt the first measurements will tell you what
Horse Power and Amperage you need. Look at the chart for motors by these variables.
