Product Description

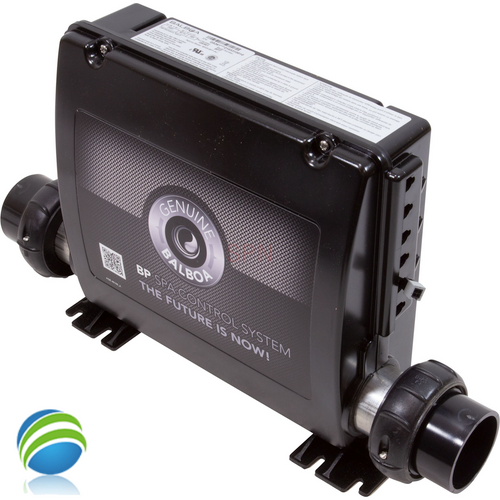

No longer available. Please click here for the newest Balboa replacement retro-fit kit: Control Retrofit Kit Balboa BP7, 1 or 2 Pump/Blower ,Ozone ,Light, 5.5kW, 115v/230v, with TP500 Topside

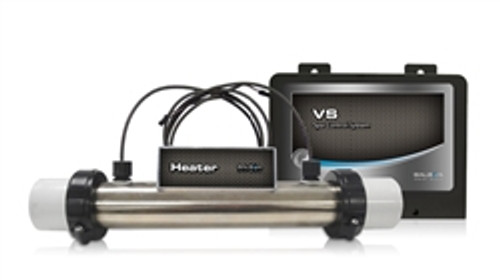

Balboa 55319 VS501 spa pack control system with 4.0 KW heater for single pump systems with or without a blower. This versatile pack supports a 2 speed pump #1, single speed blower, ozonator, 12 volt light and circ pump (optional). All circuits on this system are convertible to 230 or 115 Volt by moving the white wires on the board, and can be configured many different ways through the jumpers and dip switches.
Can be used as a generic replacement for many original Balboa VS based systems such as the Tatum Manufacturing Gulf Coast Spas VS501TM2, VS500TM2 , 515707, DX5000, EX5000, LX4000 and 515257.
This spa pack includes the heater, sensors, split unions, tailpieces and gaskets.
Pro Tip: If installing this spa pack for a 220 Volt imput you must remove the white wire that is jumping the white and red AC bank together. If not it will trip the breaker when your try to turn it on.
| Number Of Appliances | 2 |
| Manufacturer | Balboa Water Group |
| Model | VS501Z |
| Supply Voltage | 115v, 230v - 4 Wire |
| Heater Type | Fixed - Bottom |
| Heater Wattage | 1.0kW, 4.0kW |
| Topside Included | None |
| Circ Pump Ready | Yes 115v, Yes 115v/230v |
| Auxiliary Topside Ready | Yes |
| Fiber Optic | No |
| Accessory Ready | Yes |
| Wi-Fi Compatible | No |
| 50/60 HZ | 60Hz |
Please Note: Spa packs are a final sale and cannot be returned
