Product Description

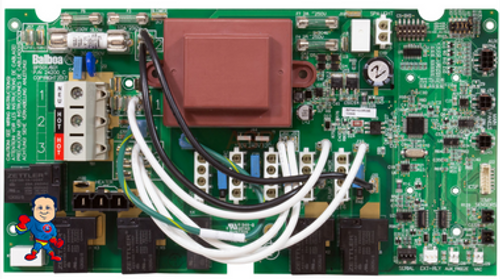

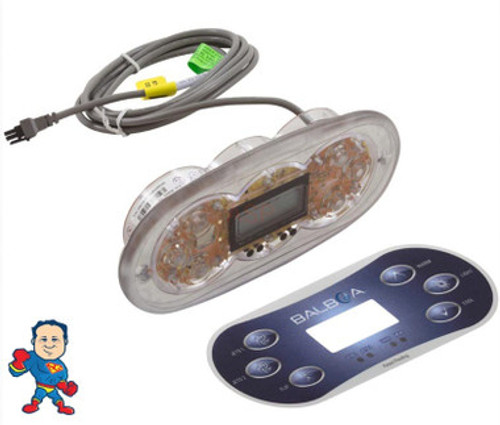

This part is a Balboa BP series BP501G3 (Set-Up #1-3), works with TP Series Top Side Panel, Pump1-Blower/Pump2, 4 Pin Molex Connector. This board is used with TP Topsides only..and is commonly paired with the TP600 panel. Original versions of this circuit board did not support a dedicated circulation pump, but the new universal models will. Pump 1, Circ Pump and Ozonator must be t same voltage!
Circuit Board works in place of: 56585, 56961, BP501-G3-BP5X BP501, 56961-01, 59138-3044 PCB, BP501G3, 56582 800 Incoloy Control System, 56583 825 Incoloy Control System or 56584 Titanium Control System
Also replaces Maax 56549 MXBP501X 110718 board (minor change in connector position may be required)
| Circuit Board Application | Balboa Water Group, Hydro-Quip |
| Circuit Board Model | BP501-G3 |
| Circuit Board Type | New |
| Manufacturers Part Number | 56961 |
Some other numbers related to this board..
- 56585
- 33-56585-K
- 33-56961-K
- 3-60-0189
- BP501G3
- 56582
- 56583
- 825 Incoloy
- 56584
- Maax 56549
- MXBP501X
- 110718
