Product Description

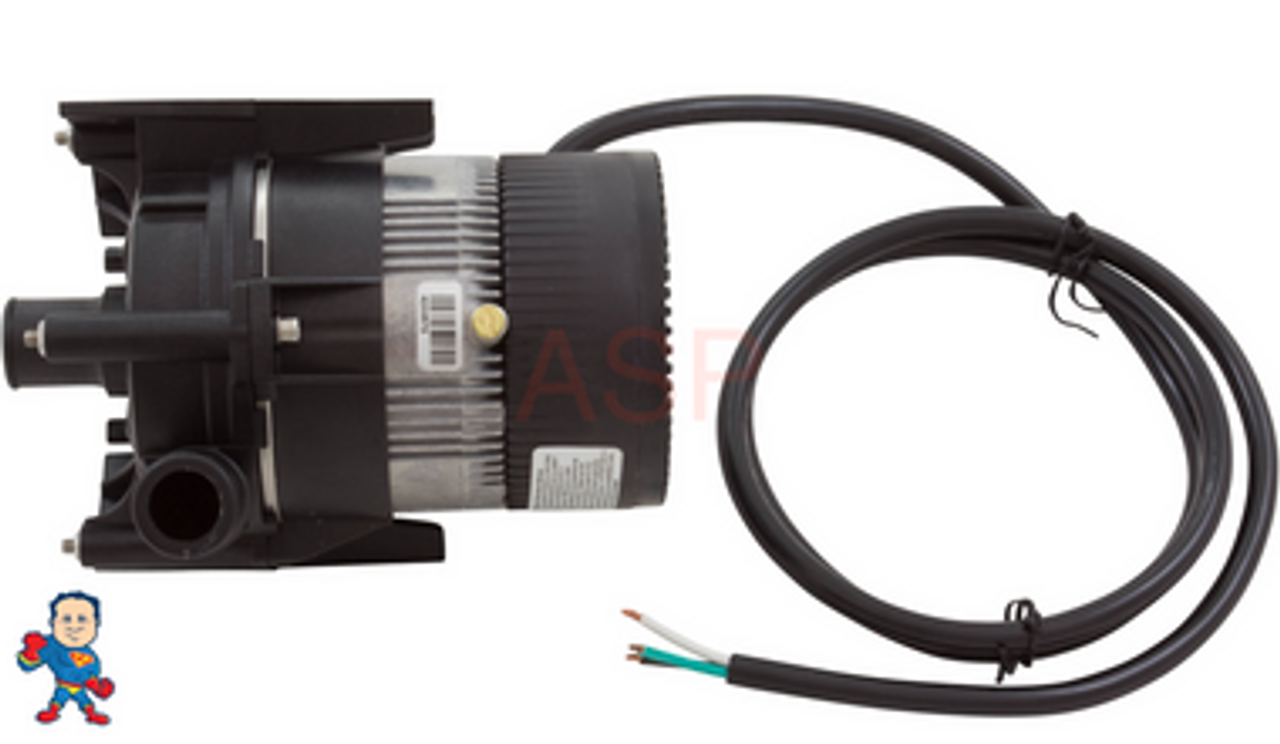

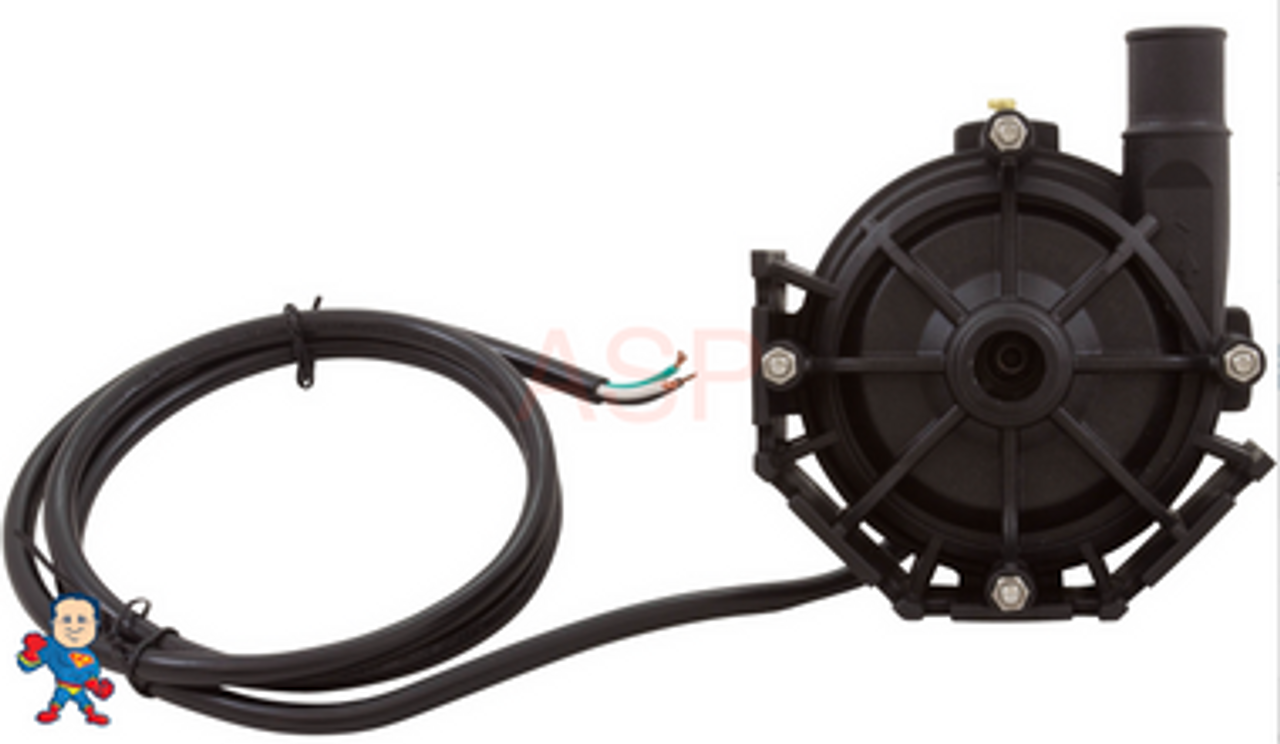

This 230V Laing E-10 pump with a 3/4" Barb Suction and Pressure Side which measures about 3/4" Outside Diameter and the hose is 3/4" Inside Diamater is compact and lightweight, less than 5 lbs. It is whisper quiet, highly efficient and designed with the latest EC (electronically commutated) technology. The Laing E-10 is specifically designed for water circulation and can be mounted horizontally or vertically with motor end down. It is equipped with a high density ceramic bearing ball and graphite impeller that allows for continuous operation. Embedded microprocessor control gives protection against dry run conditions. Available in 3/4" and 1” barb suction and discharge and 3/4"mpt suction and discharge models.
Click here for the 115V Verison of this pump HTP34-158-1450
| Complete Pump Type | Circulation Pump |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | None |
| Pump to Motor Foot Types | Footless |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 3/4" od |
| Suction Connection Type | Barb (b) |
| Suction Pipe Size | 3/4" |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 3/4" od |
| Discharge Connection Type | Barb (b) |
| Discharge Pipe Size | 3/4" |
| Motor Amperage/Wattage | 65w |
| Manufacturer | Laing Thermotech |
| Pump Model | E-10 |
| Volute Fastening Type | 4 Bolts 4 Nuts |
