Product Description

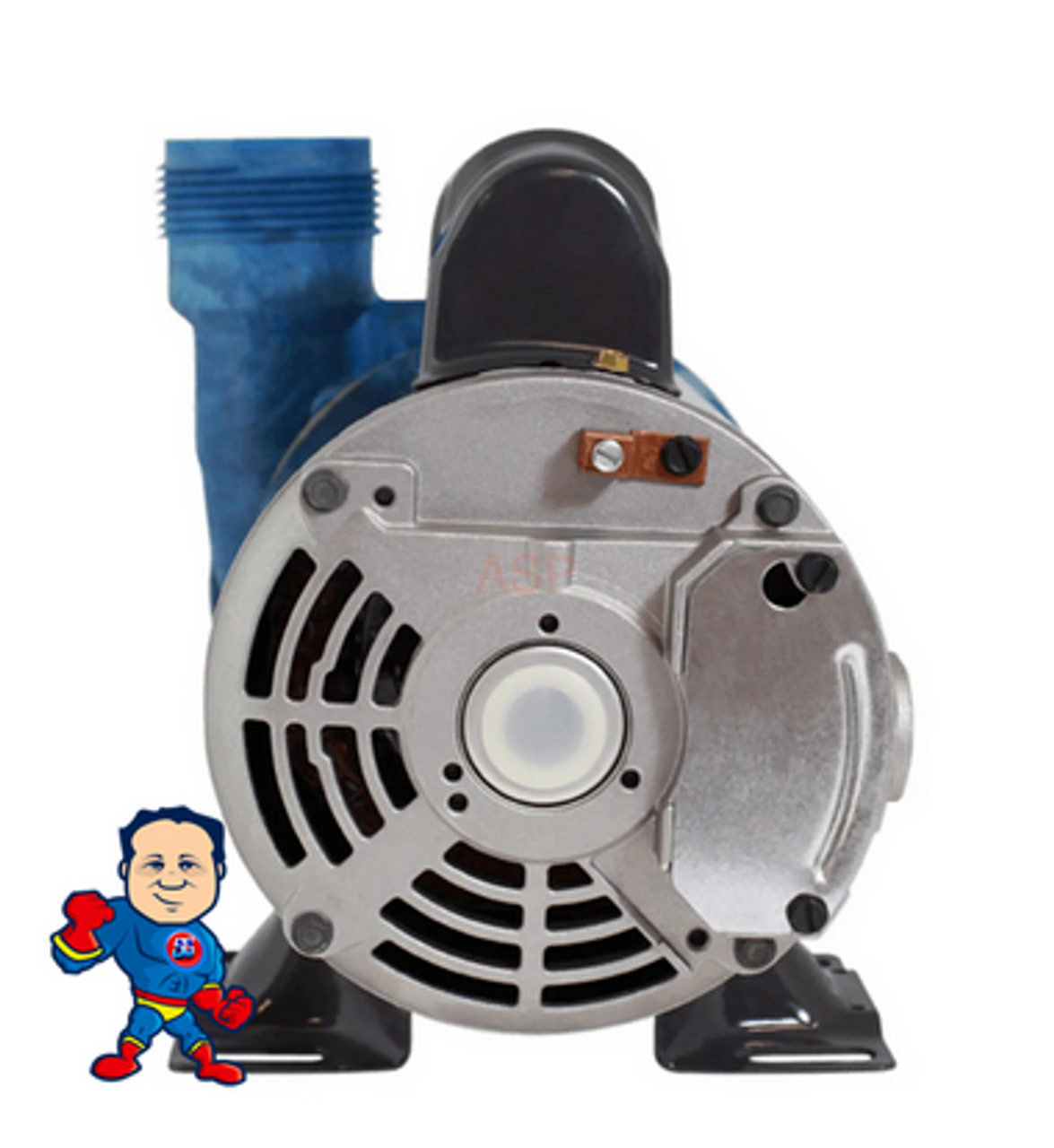

This circulation pump is found from the factory in many Sundance and Jacuzzi Premium hot tubs and will be an easy installation for people who are handy. The Model# would be 02410512-2 or 6500-907..

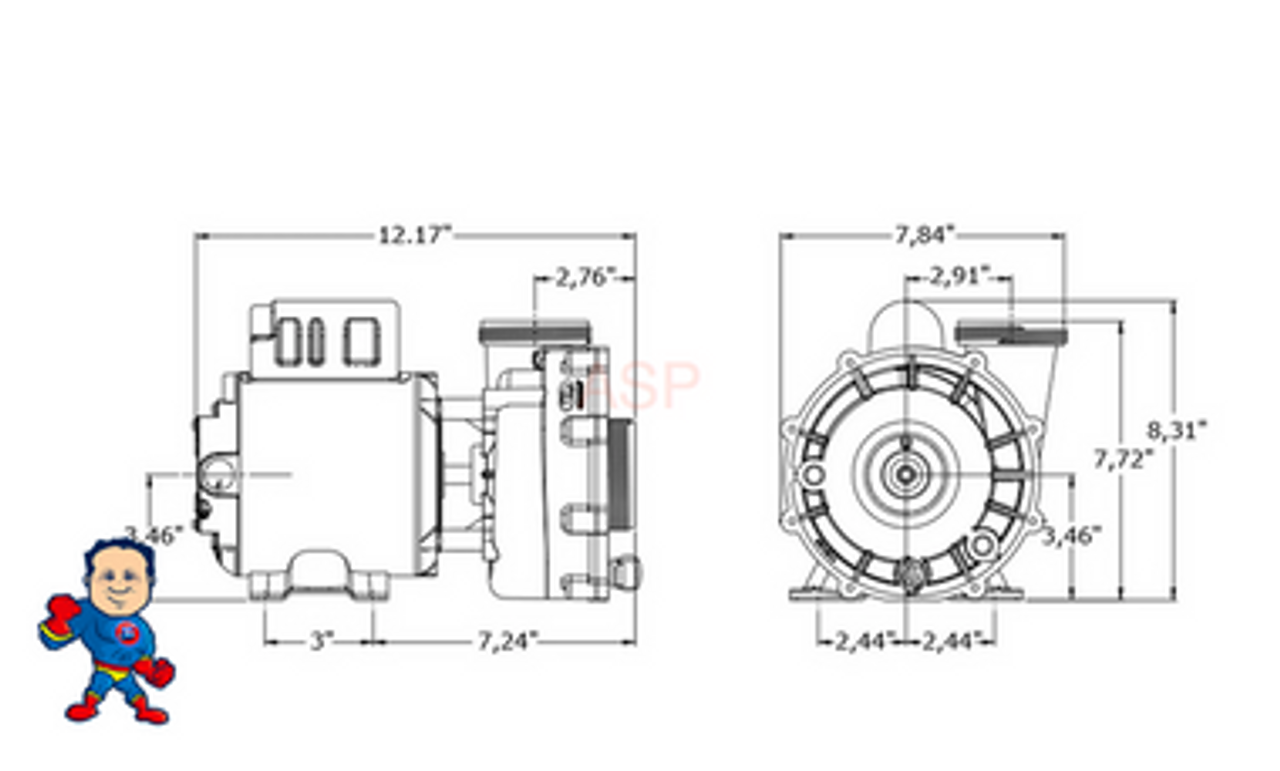

This pump is a 48 frame 230V Side Discharge wet end with a 1 1/2" suction side and 1 1/2" pressure side which measures about 2 3/8" edge to edge.

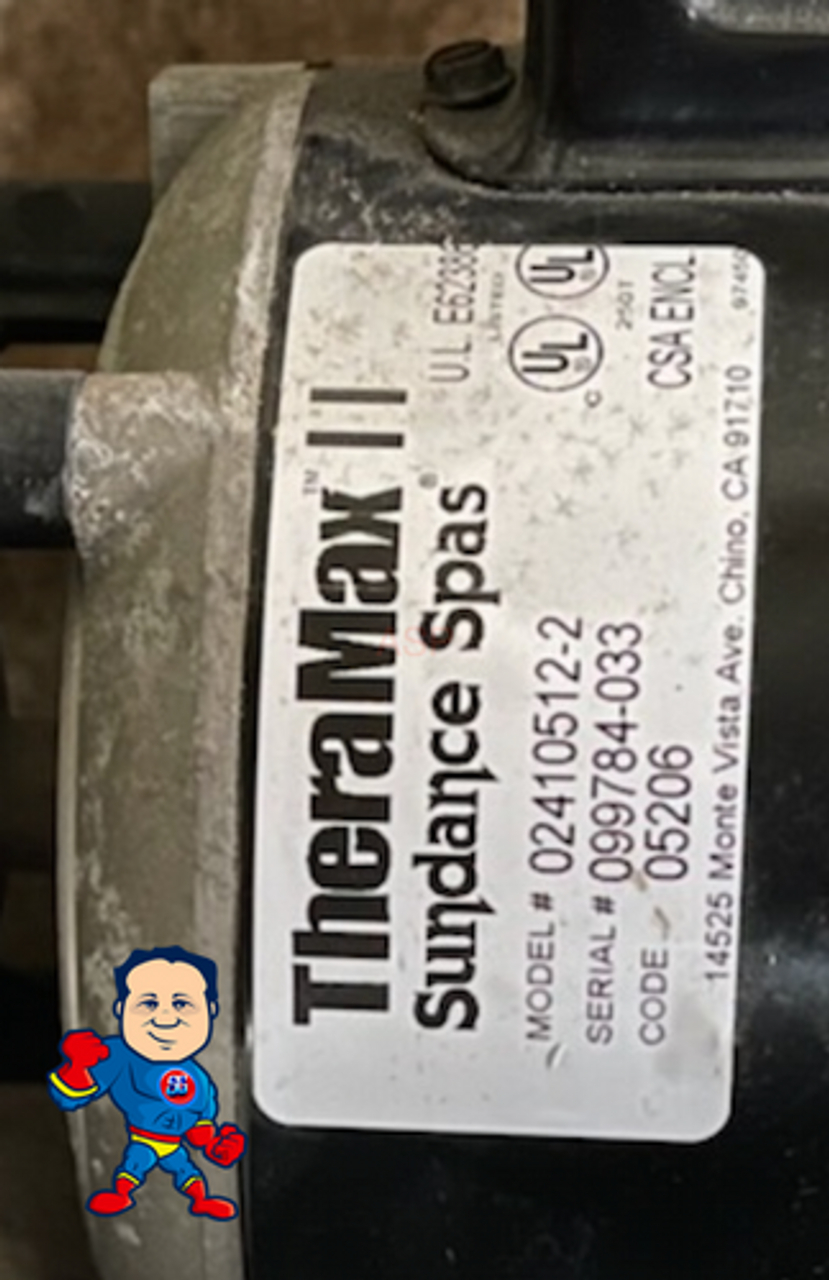

Note: You need to be sure of your voltage by checking one of two things. Either the label on the pump which will say either 115V or 230V or you can look to see where the white wire from the pump is located in the pack if you can't see the label. If the white wire is on the red leg or #2 leg the pump is 230V if it is on the Neutral or the White AC leg. Always turn the breaker to the hot tub off before doing any of these checks.
If you wnat the complete Wet End that fits this pump Click this link: Wet End, Circulation, TheraMax II, 1/15hp, 230v, 1-1/2" Side Discharge, Sundance , Jacuzzi, 02410512-2 or 6500-907
| Complete Pump Type | Circulation Pump |
| Speed | 1 Speed (1-Spd) |
| Motor Voltage | 230v |
| Drain Plug Location | 3,6,9 o`clock |
| Pump to Motor Foot Types | 15 |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 1-7/8" id, 2-7/16" od |
| Suction Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2" which measures 2 3/8" edge to edge |
| Discharge Style | Side |
| Discharge Connection (Physical Dimension) | 2-7/16" od |
| Discharge Connection Type | Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2" which measures 2 3/8" edge to edge |
| Horsepower | 1/15hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 0.6A |
| Manufacturer | Theramax II |
