Product Description

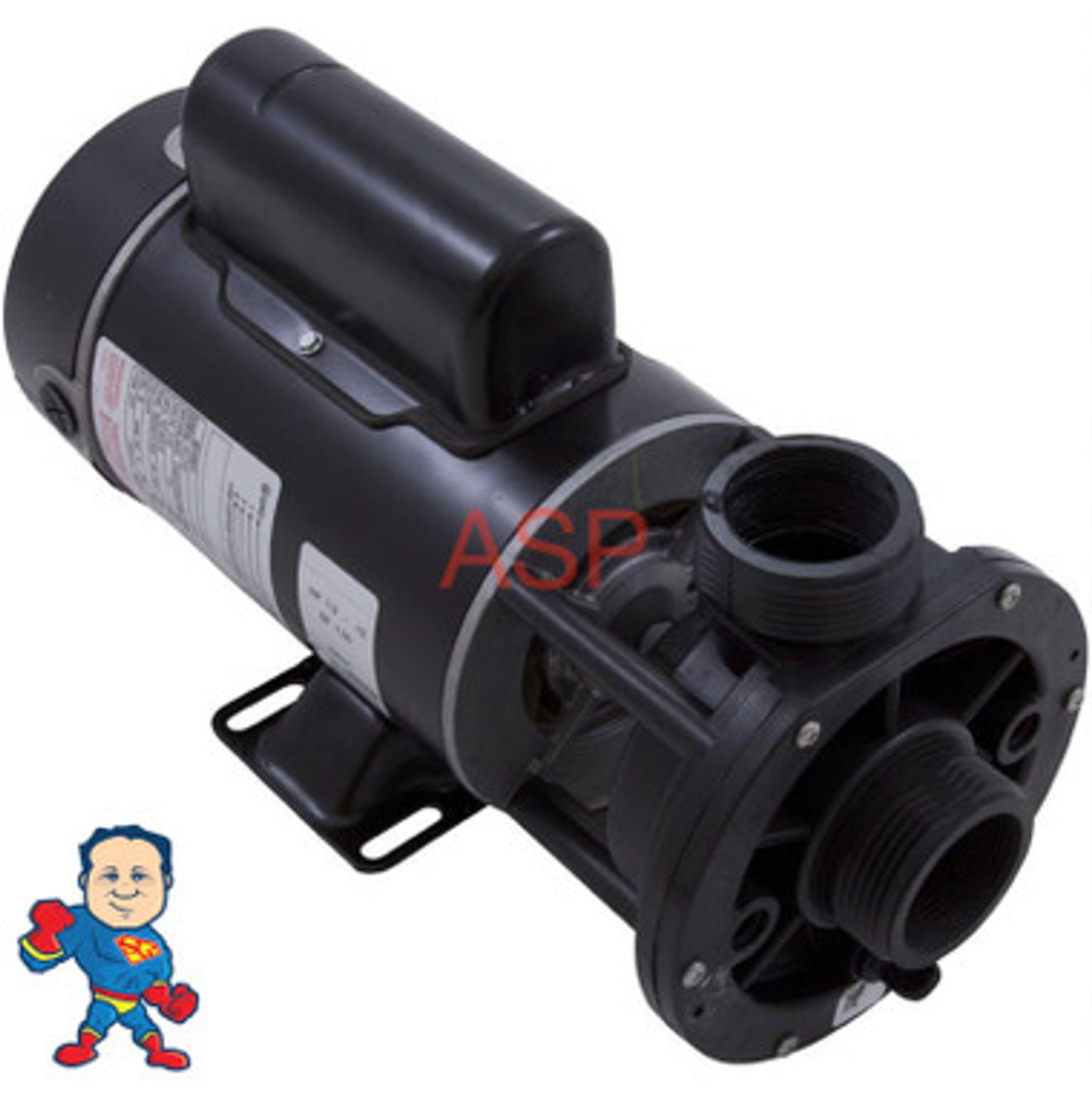

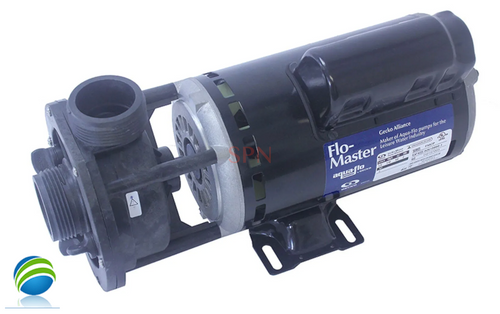

This pump is a 1 1/2" which measures about 2 3/8" across the threads with Center Discharge Style 48 Frame Pump Wet End... This Motor is 115V with 2 Speeds and Is considered to be a 1HP with 11.0 A on High Speed and 2.9A on Low Speed...
The Waterway Center Discharge 48-Frame pump is the perfect replacement for most center discharge applications. It has reliable performance. It features 1-1/2" intake and discharge and a rotatable wet end for easy installation.
Spa Pump Features:
- Reliable center discharge performance
- 1-1/2" Intake and discharge
- Wet end can be rotated for easy installation
- Available in 0.75hp to 2hp and in single or dual speed (SEE THE AVAILABLE STYLES TAB)
- Dimensions (H x W x L): 7.35" x 7" x 14.00"
Note: This new E-Series version replaces the old style Waterway center discharge pump
| Complete Pump Type | Portable Spa Pump |
| Speed | 2 Speed (2-Spd) |
| Motor Voltage | 115v |
| Drain Plug Location | 3,6,9 o`clock |
| Pump to Motor Foot Types | 15 |
| Suction Style | Center |
| Suction Connection (Physical Dimension) | 1-7/8"id, 2-7/16"od |
| Suction Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Suction Pipe Size | 1-1/2" |
| Discharge Style | Center |
| Discharge Connection (Physical Dimension) | 1-7/8"id, 2-7/16"od |
| Discharge Connection Type | Female Pipe Thread (fpt), Male Buttress Thread (mbt) |
| Discharge Pipe Size | 1-1/2" |
| Horsepower | 1.0hp |
| Motor Frame | 48 Frame Thru-Bolt |
| Motor Amperage/Wattage | 11.0A/2.9A |
| Manufacturer | Waterway |
| Pump Model | E-Series Center Discharge |
| Manufacturer Impeller Number | 310-8020 |
| Volute Fastening Type | 6 Screws |
| Volute/Sealplate Number | 315-1070 |
