Product Description

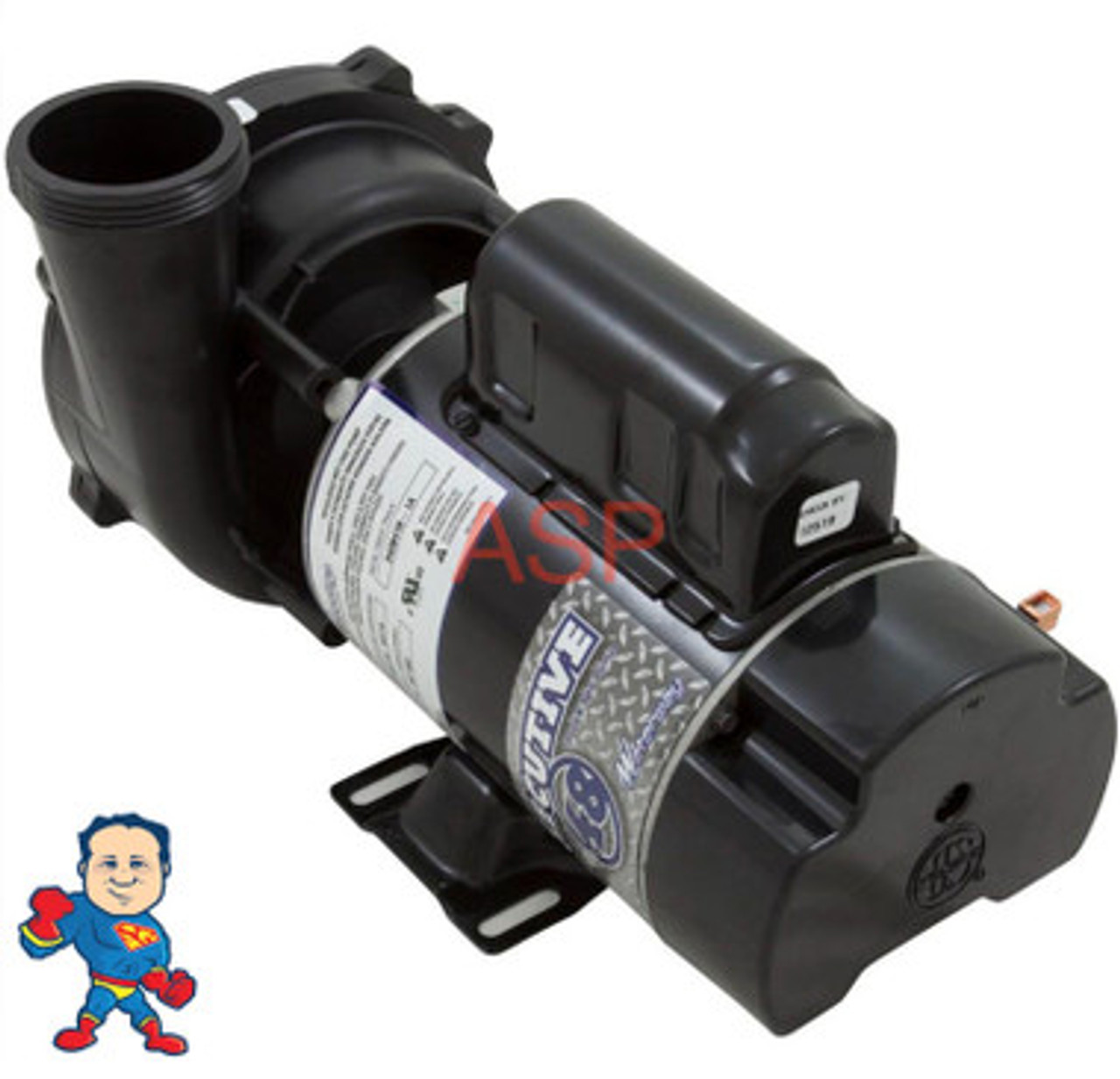

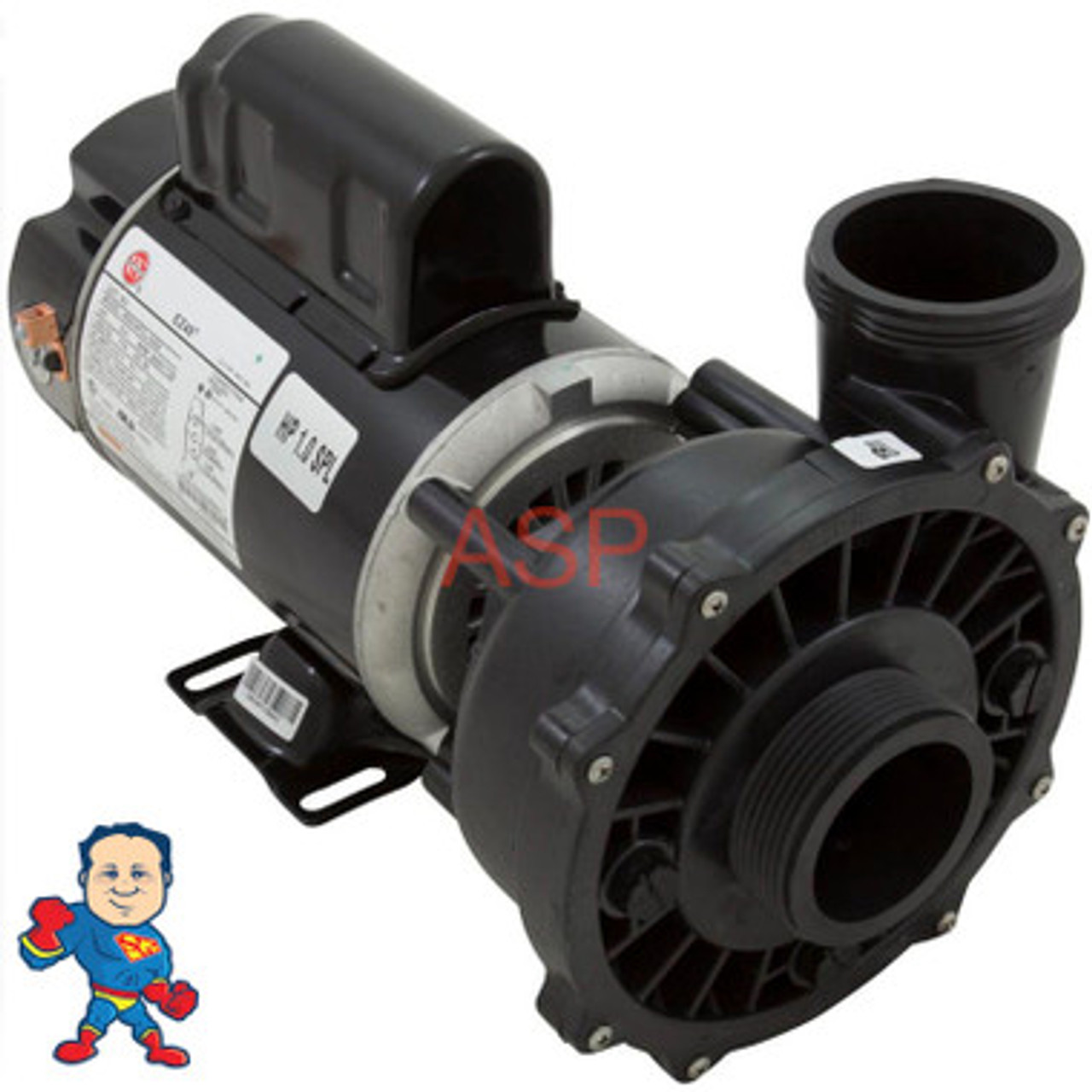

This complete pump is a Waterway, Executive, 1.0hp, 115v, 2-spd, 48fr, 2"...
Spa Pump Features:
Executive wet end designed specifically for 48-frame motors
Large 6-1/2" diameter wet end for higher head pressure
2" intake and discharge
Wet end can be rotated for easy installation
Thermally protected to extend life expectancy of motor
Dimensions (H x W x L): 8.34" x 8.13" x 14.45"
Available in 1 to 4.5Hp and in single or dual speed (SEE THE AVAILABLE STYLES TAB)
California Title 20 Compliant
Manufacturer Waterway
Pump Model Executive
Speed 2 Speed (2-Spd)
Motor Voltage 115v
Drain Plug Location 3,6,9 o`clock
Suction Style Center
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2"
Discharge Style Side
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 1.0SPL
Motor Frame 48 Frame Thru-Bolt
Motor Amperage/Wattage 9.5A/3.2A
