Product Description

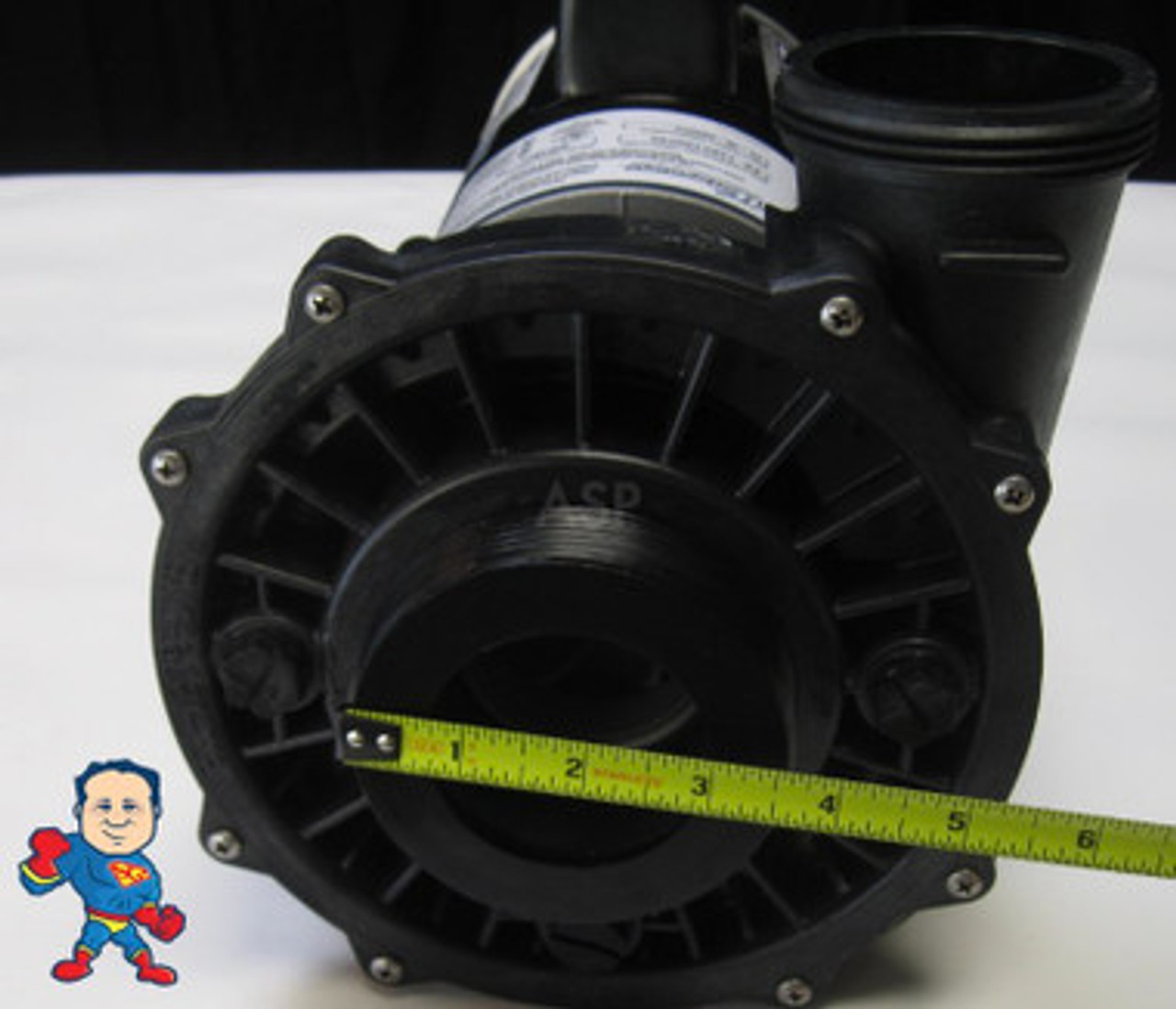

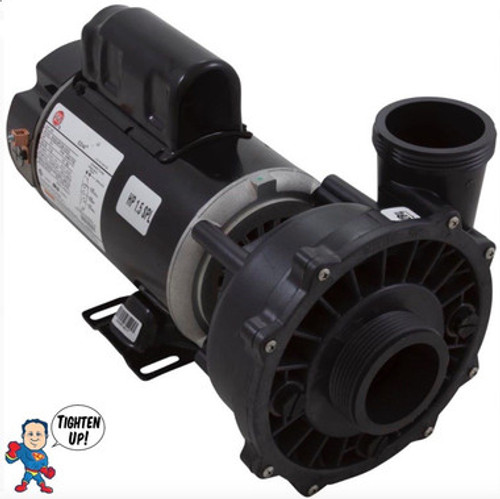

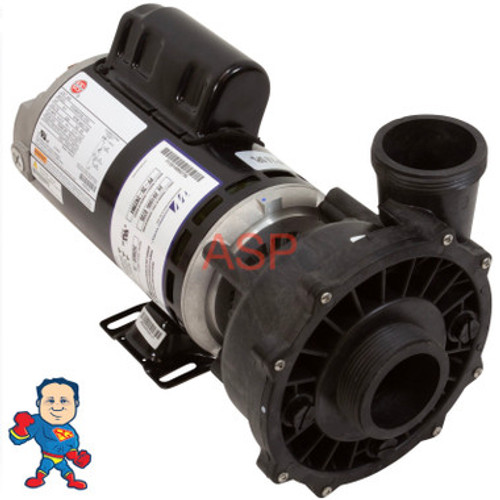

This is a Waterway Executive 115V 1 .5HP 48fr 2 1/2" x 2".. This pump is a very unusual one as it has a 2 1/2" Suction Side which measures about 3 5/8" edge to edge on the threads on the front suction side and 2" on the pressure side top which measures about 3" edge to edge..
Note: I have seen this pump in Phoenix brand Spa Titanium series with a 56fr sticker on them but it is definitely a 48 frame..
Complete Pump Type Portable Spa Pump
Speed 2 Speed (2-Spd)
Motor Voltage 115v
Drain Plug Location 3,6,9 o`clock
Pump to Motor Foot Types 4a
Suction Style Center
Suction Connection (Physical Dimension) 3-11/16"od
Suction Connection Type Male Buttress Thread (mbt)
Suction Pipe Size 2-1/2"
Discharge Style Side
Discharge Connection (Physical Dimension) 3-1/16"od
Discharge Connection Type Male Buttress Thread (mbt)
Discharge Pipe Size 2"
Horsepower 1.5SPL
Motor Frame 48 Frame Thru-Bolt
Motor Amperage/Wattage 13.3A/4.1A
Manufacturer Waterway
Pump Model Executive
Manufacturer Impeller Number 310-4210 (2.0hp)
Volute Fastening Type 8 Screws
Volute/Sealplate Number 315-1240
